8-10 ELECTRICAL SYSTEM

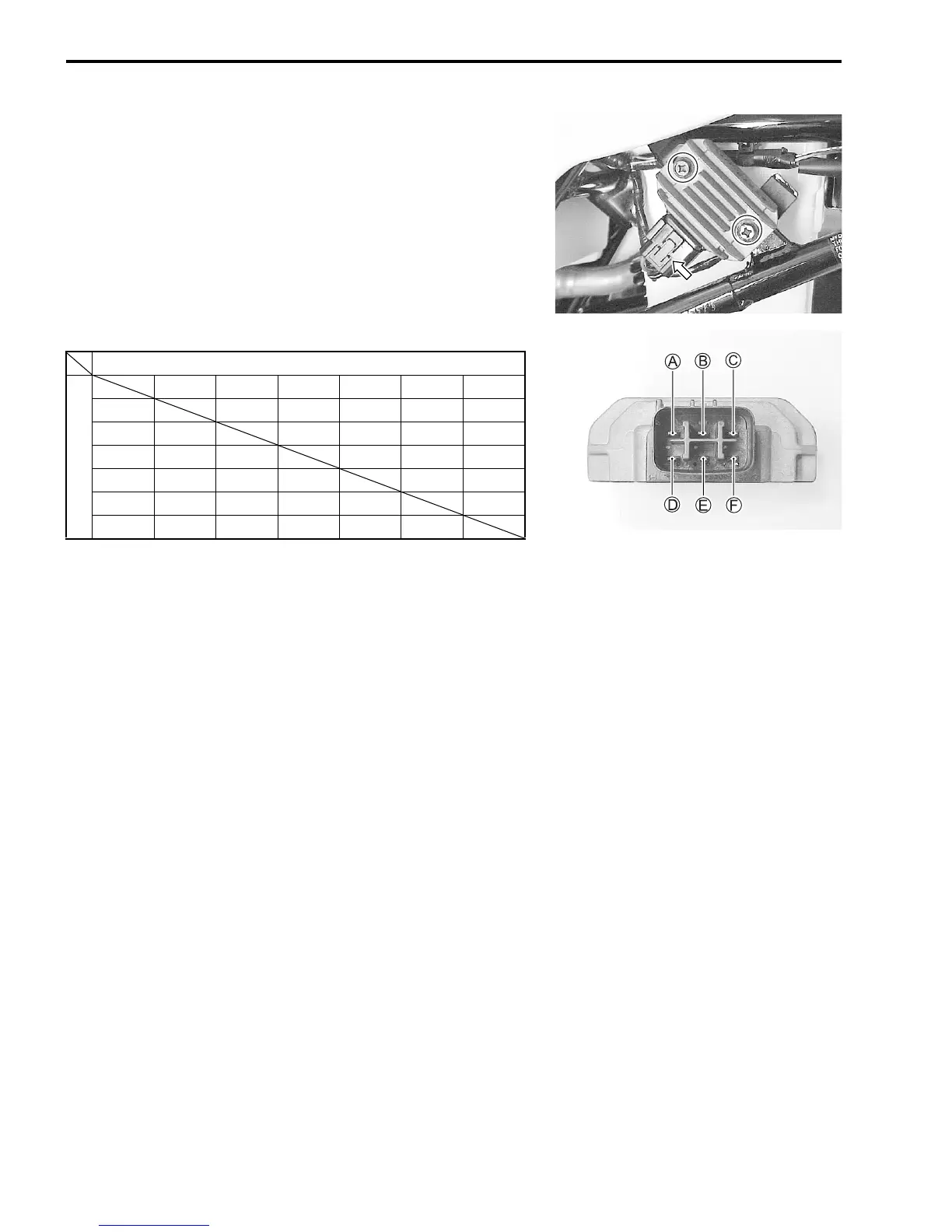

REGULATOR/RECTIFIER
• Remove the regulator/rectifier.
Measure the voltage between the terminals using the multi cir-
cuit tester, as indicated in the table below.
If the voltage is not within the specified value, replace the regu-
lator/rectifier with a new one.
09900-25008: Multi circuit tester set
Tester knob indication: Diode test ()
✽ More than 1.4 V (tester’s battery voltage)
NOTE:
If the tester reads under 1.4 V when the tester probes are not
connected, replace the battery of multi circuit tester.
Unit: V
+ Tester probe
- Tester probe
ABCDEF
A ✽
0.4–1.2 0.3–0.7 0.3–0.7 0.3–0.7
B ✽✽✽✽✽
C ✽✽ ✽✽✽
D ✽✽
0.3–0.7
✽✽
E ✽✽
0.3–0.7
✽✽
F ✽✽
0.3–0.7
✽✽
