CHASSIS 7-17
FRONT BRAKE
CONSTRUCTION
* This brake system is filled with an ethylene glycol-based DOT 4 brake fluid. Do not use or mix
different types of fluid, such as silicone-based or petroleum-based brake fluids.
* Do not use any brake fluid taken from old, used or unsealed containers. Never reuse brake
fluid left over from the last servicing or which has been stored for a long periods of time.
* When storing brake fluid, seal the container completely and keep it away from children.
* When replenishing brake fluid, take care not to get dust into the fluid.
* When washing brake components, use new brake fluid. Never use cleaning solvent.
* A contaminated brake disc or brake pad reduces braking performance. Discard contaminated
pads and clean the brake disc with high quality brake cleaner or a neutral detergent.

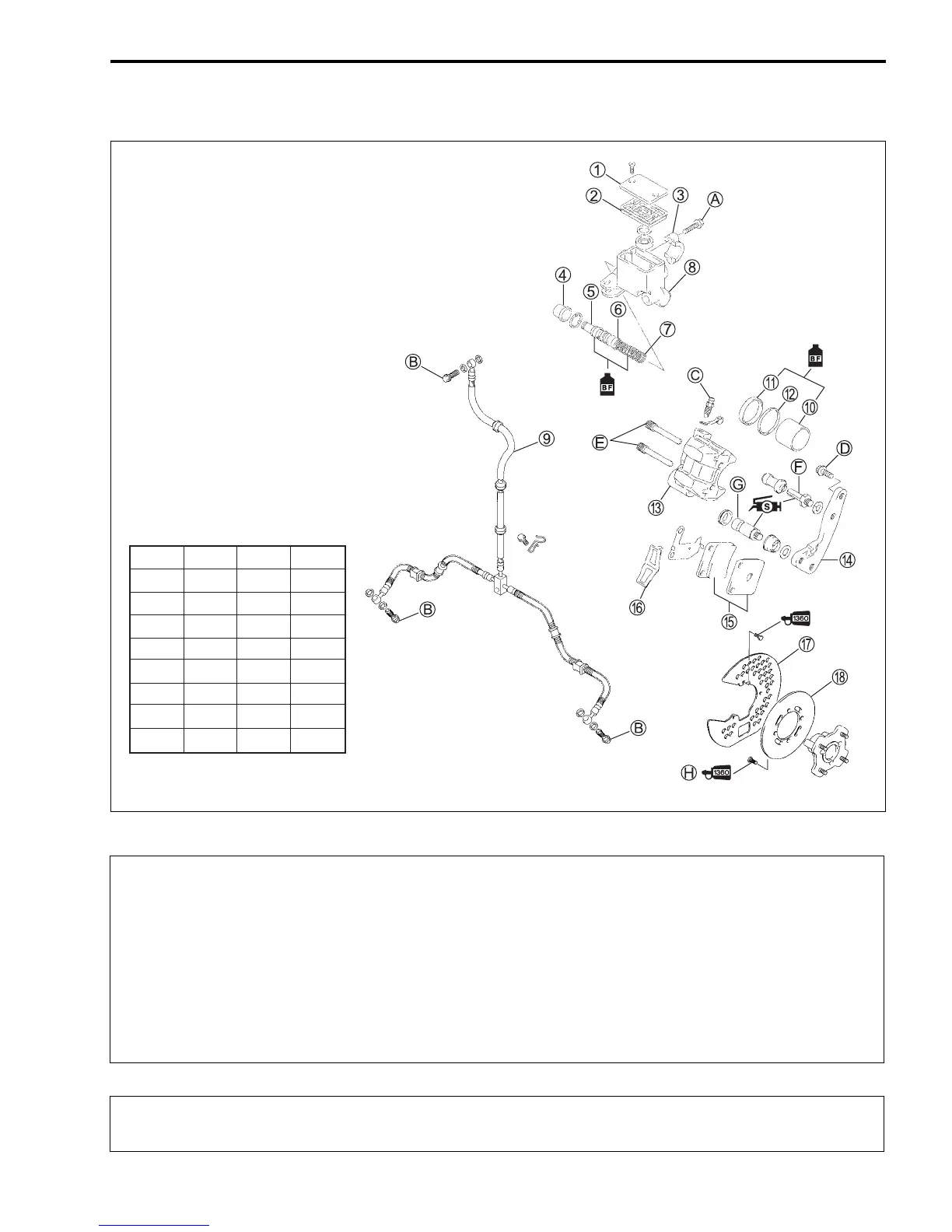

1 Master cylinder reservior cap A Master cylinder mounting bolt
2 Diaphragm B Brake hose union bolt
3 Master cylinder clamp C Air bleeder valve
4 Boot D Brake caliper mounting bolt
5 Piston/cup set E Brake pad mounting pin
6 Cup F Caliper holder pin
7 Spring G Caliper holder slide pin
8 Master cylinder H Brake disc bolt
9 Brake hose
0 Piston
A Piston seal
B Dust seal
C Brake caliper
D Brake caliper holder
E Brake pad
F Pad spring
G Disc cover
H Front brake disc
ITEM N·m kgf-m lb-ft
A 10 1.0 7.0
B 23 2.3 16.5
C 7.5 0.75 5.5
D 26 2.6 19.0
E 18 1.8 13.0
F 18 1.8 13.0
G 23 2.3 16.5
H 23 2.3 16.5
"
Handle brake fluid with care: the fluid reacts chemically with paint, plastics, rubber materials
etc. and will damage them severly.
