Suzuki Ozark - Toe-In Adjustment

CHASSIS 7-43

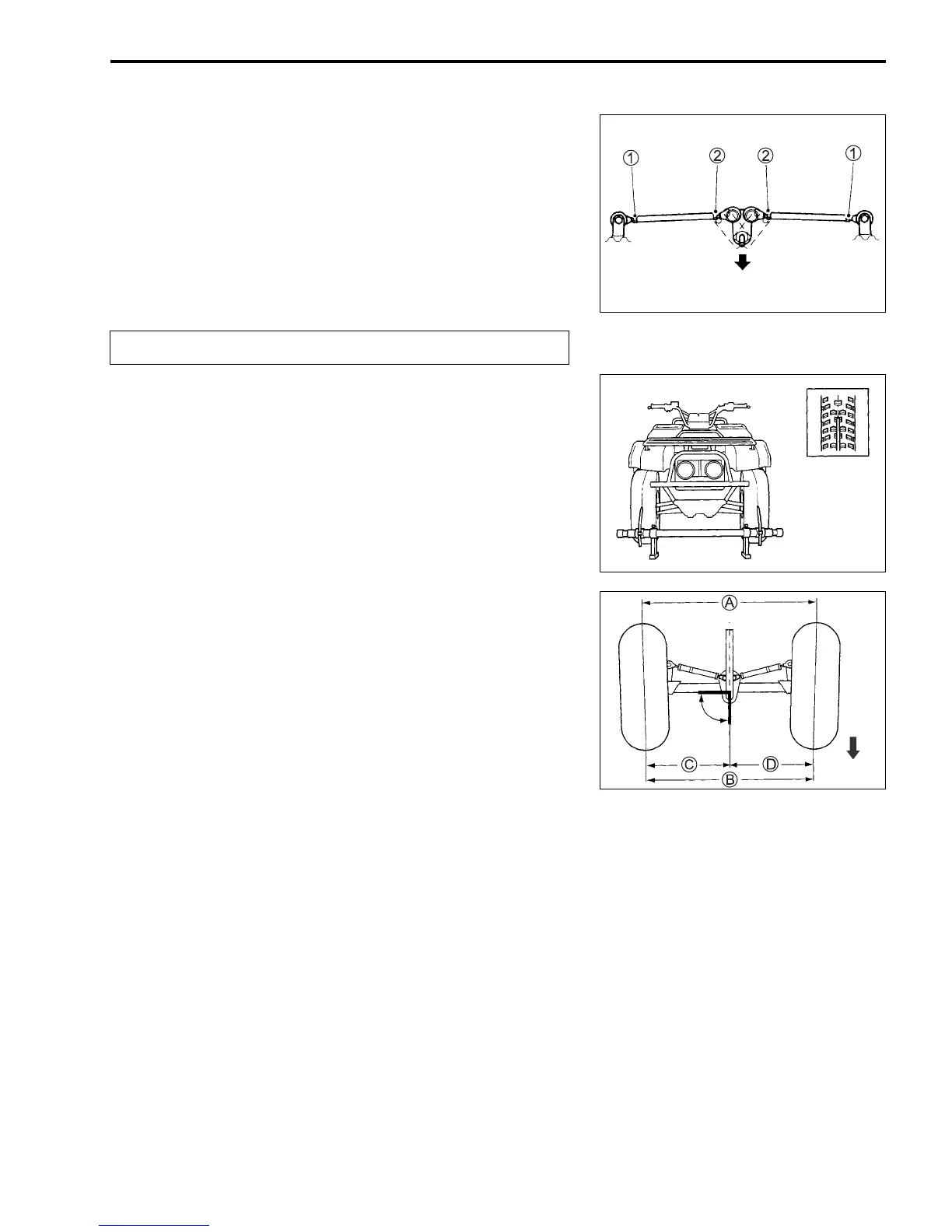

TOE-IN ADJUSTMENT
Adjust the toe-in as follows:
• Place the vehicle on level ground and set the handlebars
straight.
Make sure all the tires are inflated to the standard pressure.
(2-15)
• Place 75 kg (165 lbs) of weight on the seat.
• Loosen the locknuts (1, 2) on each tie rod.

• Measure the distances (A and B) between the front wheels.
Subtract the measurements of A from the measurements of
B to find the toe-in. If the toe-in is not within specification,
adjust the tie rod to the right or left until the toe-in is within the
specified range.
A – B = Toe-in
 Toe-in
Standard: 2 ± 4 mm (0.08 ± 0.16 in)
• Temporarily tighten the four locknuts.
• Check that the distances (C and D) are equal, as shown. If
the distances are not equal, adjust the tie rod to the right or
left until the toe-in is within specification. Check the toe-in
again by measuring distances A and B.
• If the toe-in is not within specification, repeat the adjustment
as above until the proper toe-in is obtained and distances C
and D become equal.
• After adjustment has been made, tighten the four locknuts 1
to the specified torque.
 Tie rod locknut: 29 N·m (2.9 kgf-m, 21.0 lb-ft)
The locknuts 2 have left-hand threads.
Forward
Right angle
(90 deg.)
Forward
