Suzuki Ozark - Removal and Disassembly

CHASSIS 7-29
REMOVAL AND DISASSEMBLY

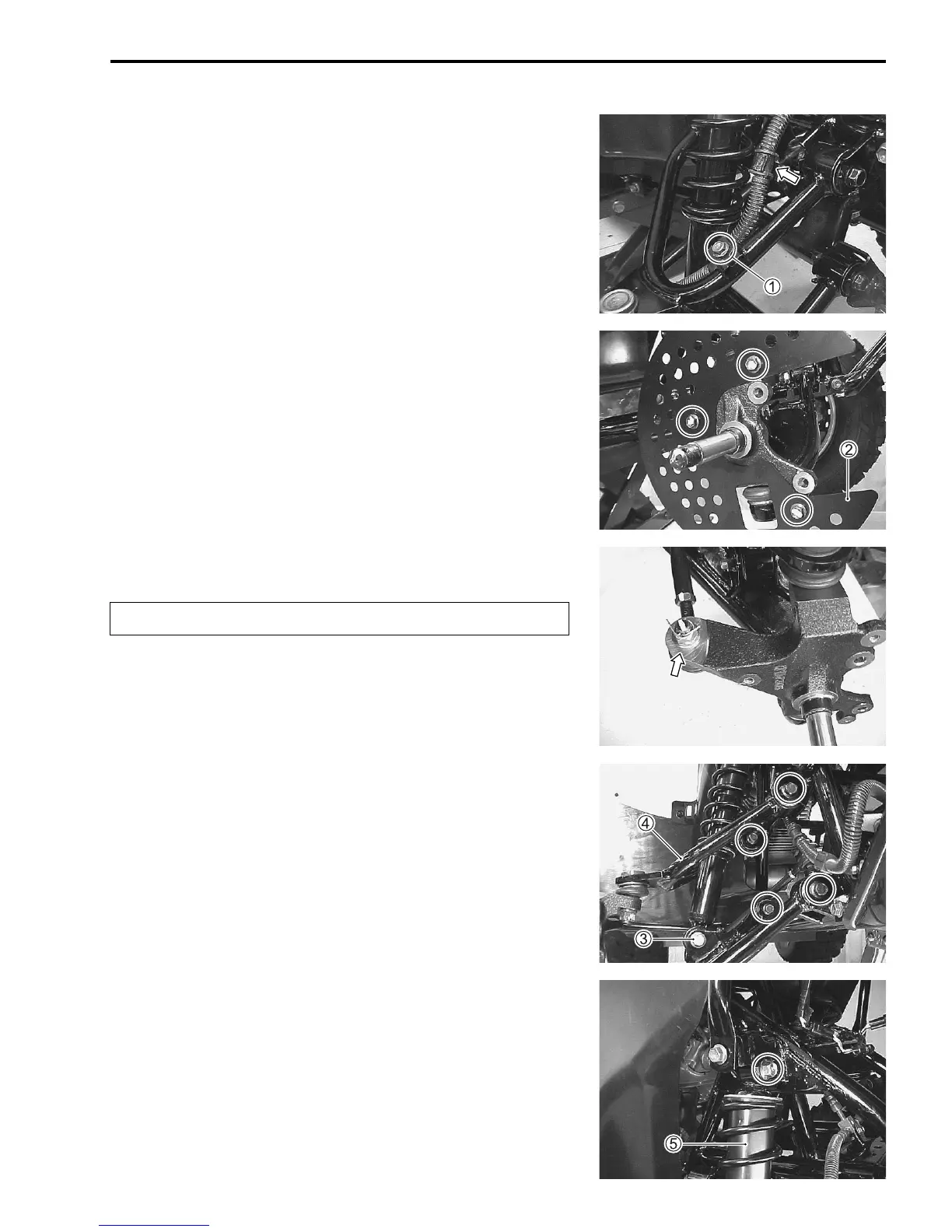

• Remove the wheel hub. (7-10)
• Remove the brake hose clamp 1.
• Disconnect the brake hose at the hose clamp.
• Remove the front disc cover 2.
• Remove the cotter pin and tie rod end nut.

• Remove the shock absorber lower mounting bolt 3.
• Remove the wishbone arm assembly 4.
• Remove the shock absorber 5.
Replace the removed cotter pin with a new one.
