Suzuki Ozark - STEERING

CHASSIS 7-35
STEERING

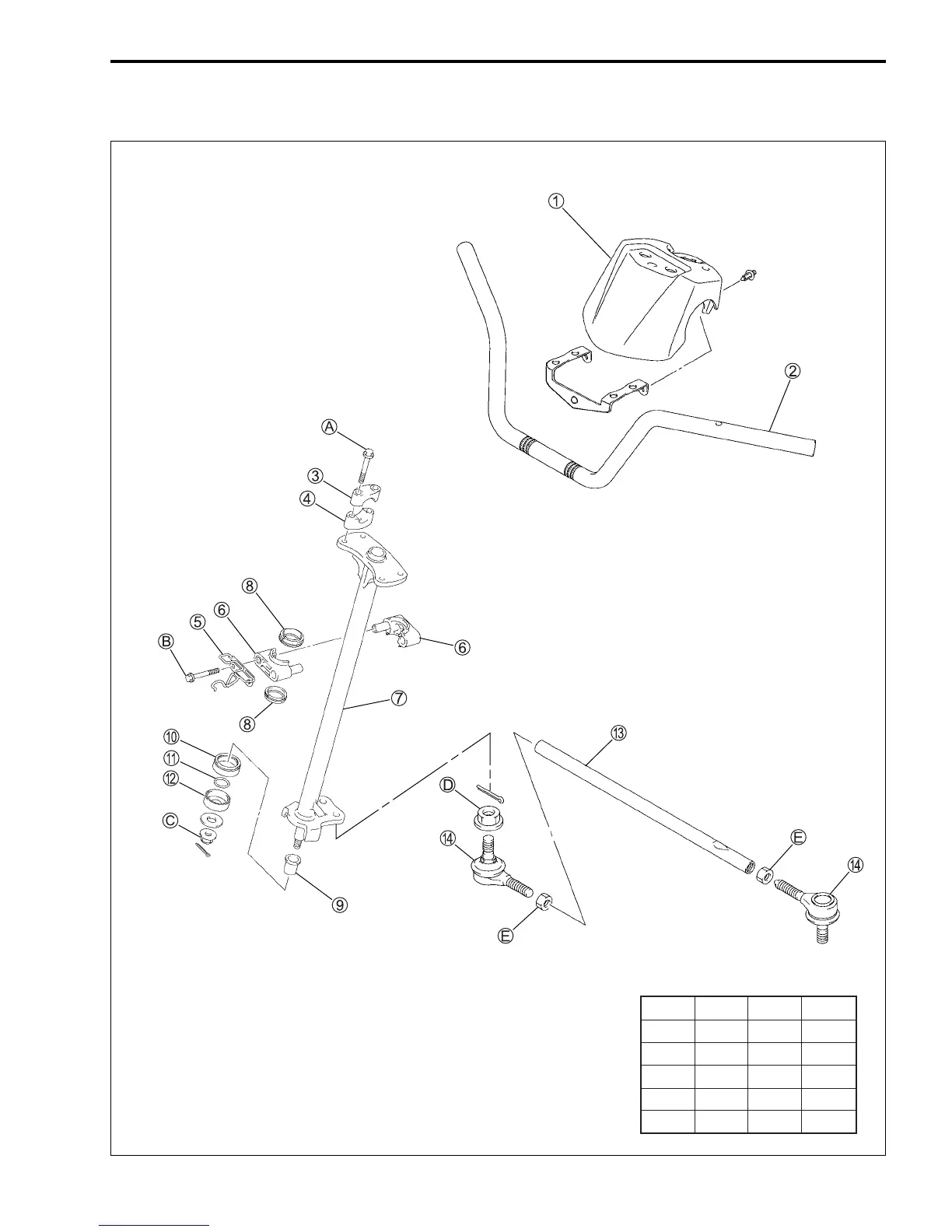

CONSTRUCTION
ITEM N·m kgf-m lb-ft
A 23 2.3 16.5
B 23 2.3 16.5
 C 49 4.9 35.5
 D 35 3.5 25.5
 E 29 2.9 21.0
"
1 Steering head cover
2 Handlebars
3 Handlebar upper clamp
4 Handlebar lower clamp
5 Brake cable guide
6 Steering shaft holder
7 Steering shaft
8 Dust seal
9 Bushing
0 Dust seal
A O-ring
B Dust seal
C Tie rod
D Tie rod end
A Handlebar clamp bolt
B Steering shaft holder bolt
C Steering shaft nut
DTie rod end nut
ETie rod locknut
