ENGINE 3-55
SECONDARY DRIVEN BEVEL GEAR REMOVAL
The following components must be removed in the described
order before removing the secondary driven bevel gear.
NOTE:
Refer to the following pages for the details of each step.
• Remove the rear wheel. (7-10)
• Remove the swingarm. (7-54)
• Remove the universal joint.
• Remove the secondary driven bevel gear.

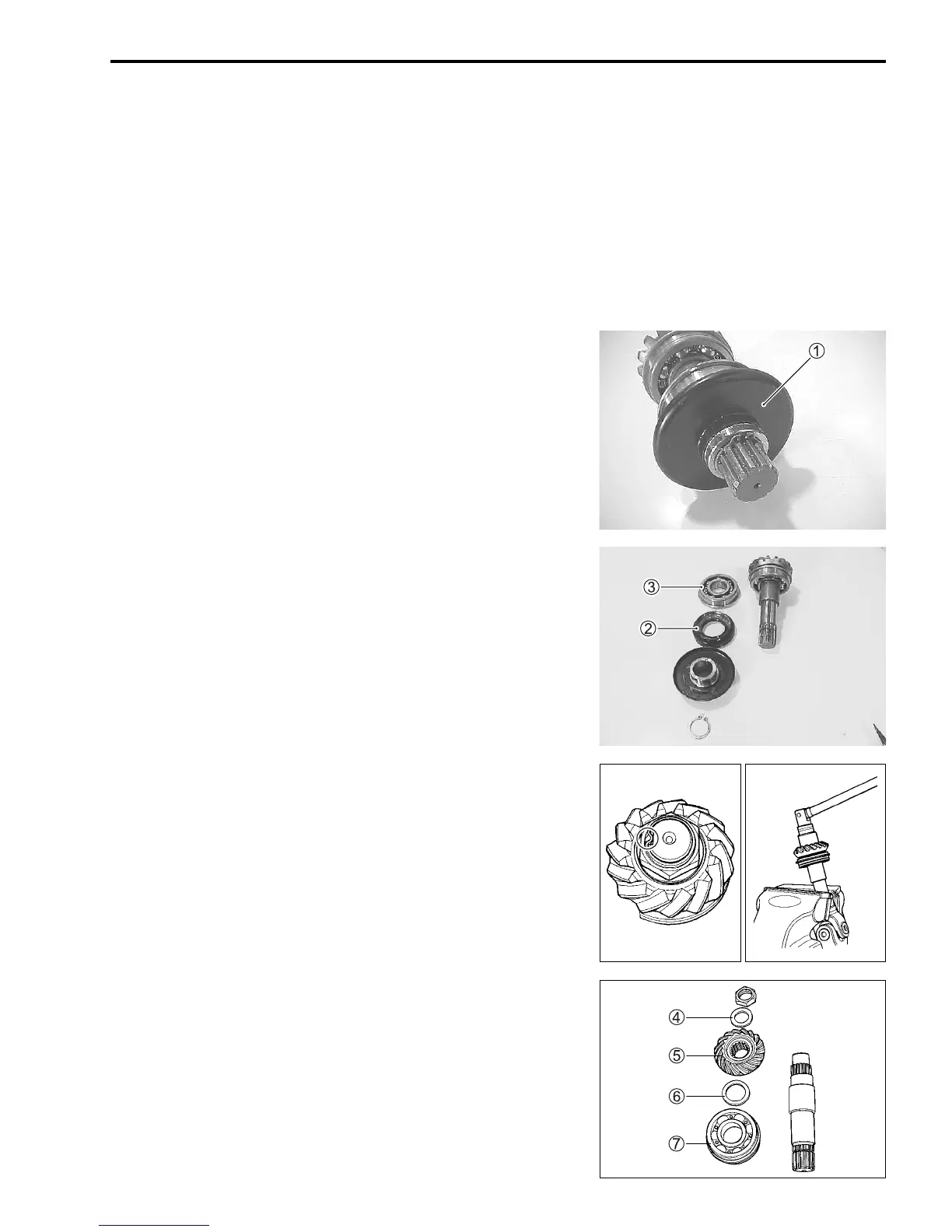

SECONDARY DRIVEN BEVEL GEAR DISASSEMBLY
• Remove the water proof cover 1 by removing the snap ring.
09900-06107: Snap ring pliers
• Remove the oil seal 2 and bearing 3.
• Using a chisel, unlock the nut.
• Fit the universal joint onto the driven bevel gear shaft.
• Remove the driven bevel gear shaft by holding the universal
joint with a vise.
• Remove the washer 4, bevel gear 5, shim 6 and bearing
7.
