3-56 ENGINE
INSPECTION
Inspect the removed parts for the following abnormalities.
* Drive and driven bevel gears damage or wear
* Improper tooth contact
* Abnormal noise of bearings
* Bearing damage or wear
* Oil seal damage or wear

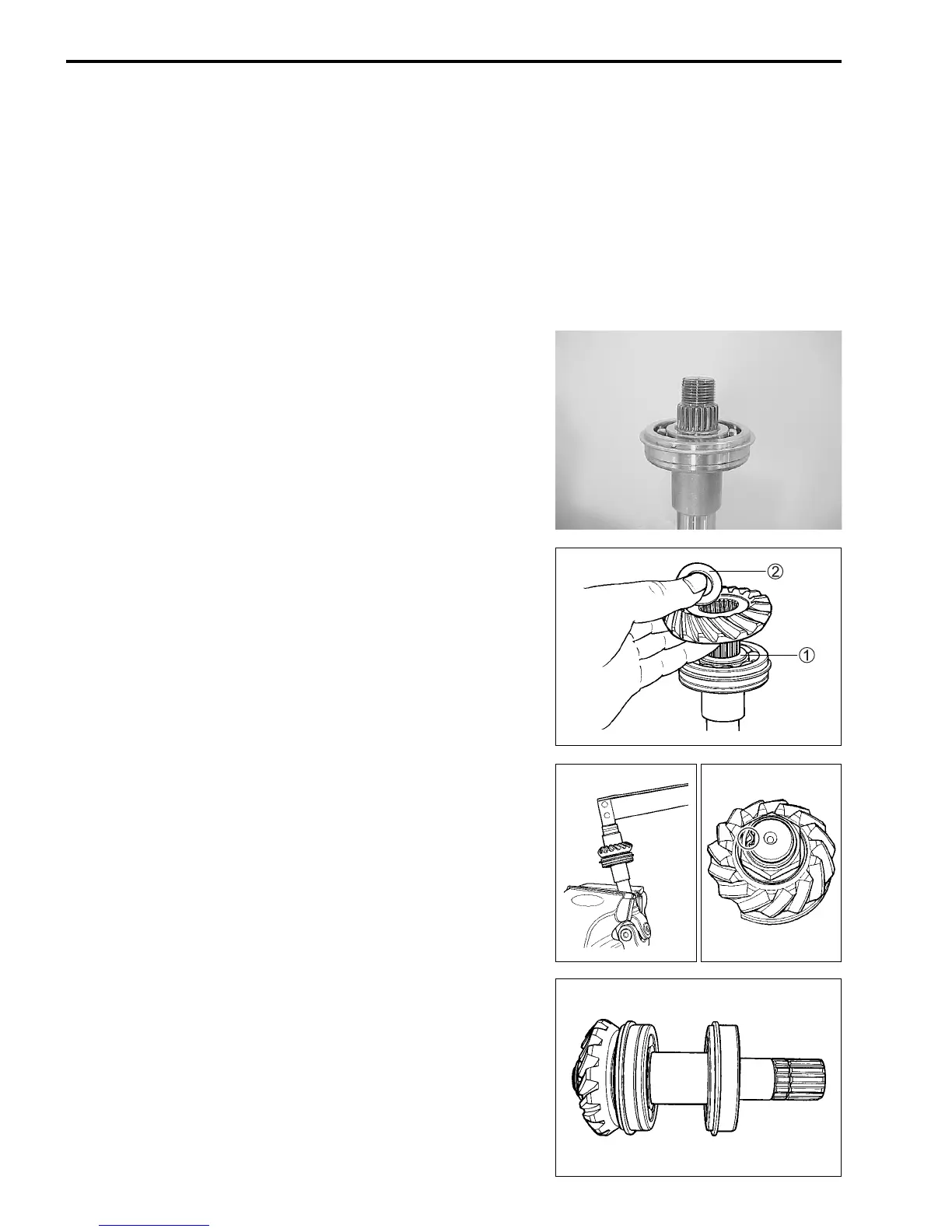

SECONDARY DRIVEN BEVEL GEAR REASSEMBLY
• Install the bearing.
NOTE:
Pay attention to the direction of the bearing.
• Install the shim 1, driven gear and washer 2.
• Fit the universal joint onto the driven bevel gear shaft.
• Tighten the driven bevel gear nut to the specified torque.
Secondary driven bevel gear nut:
100 N·m (10.0 kgf-m, 72.5 lb-ft)
• Stake the nut with a center punch.
• Install the bearing.
NOTE:
Pay attention to the direction of the bearing.
