5-10 FUEL SYSTEM

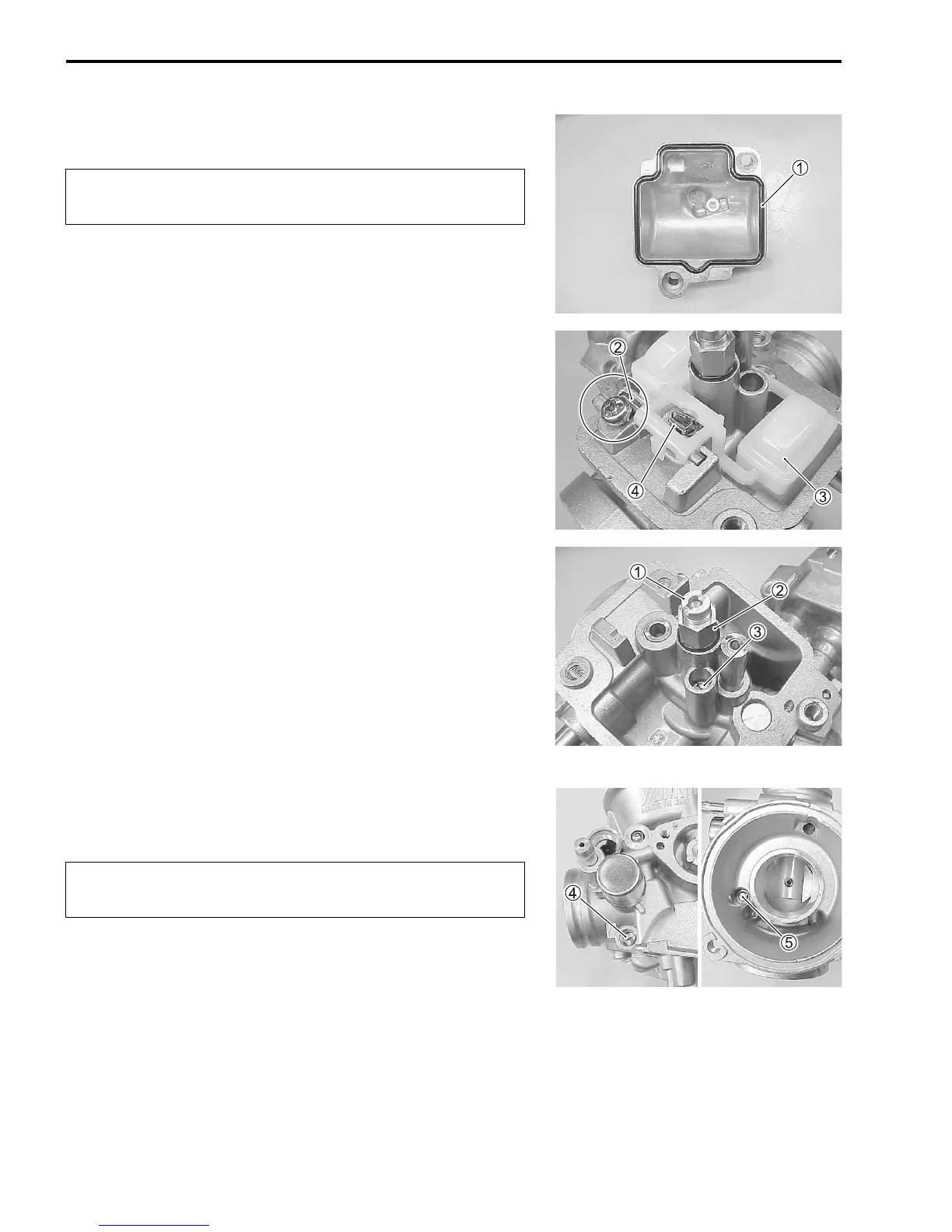

• Remove the O-ring 1.
• Remove the float pin 2, float 3 and needle valve 4.
• Remove the following parts.
1 Main jet
2 Needle jet holder, O-ring and needle jet
3 Pilot jet
4 Pilot screw
5 Air jet
NOTE:
Before removing the pilot screw 4, its setting must be deter-
mined. Slowly turn the pilot screw clockwise and count the num-
ber of turns until it is lightly seated. Make a note of how many
turns were made.
When reassembling the pilot screw, you will want to set it to its
original position.
Replace the removed O-ring with a new one to prevent
fuel leakage.
Do not use wire to clean the passageways, valve seat
and jets. Used compressed air only.
