CHASSIS 7-27

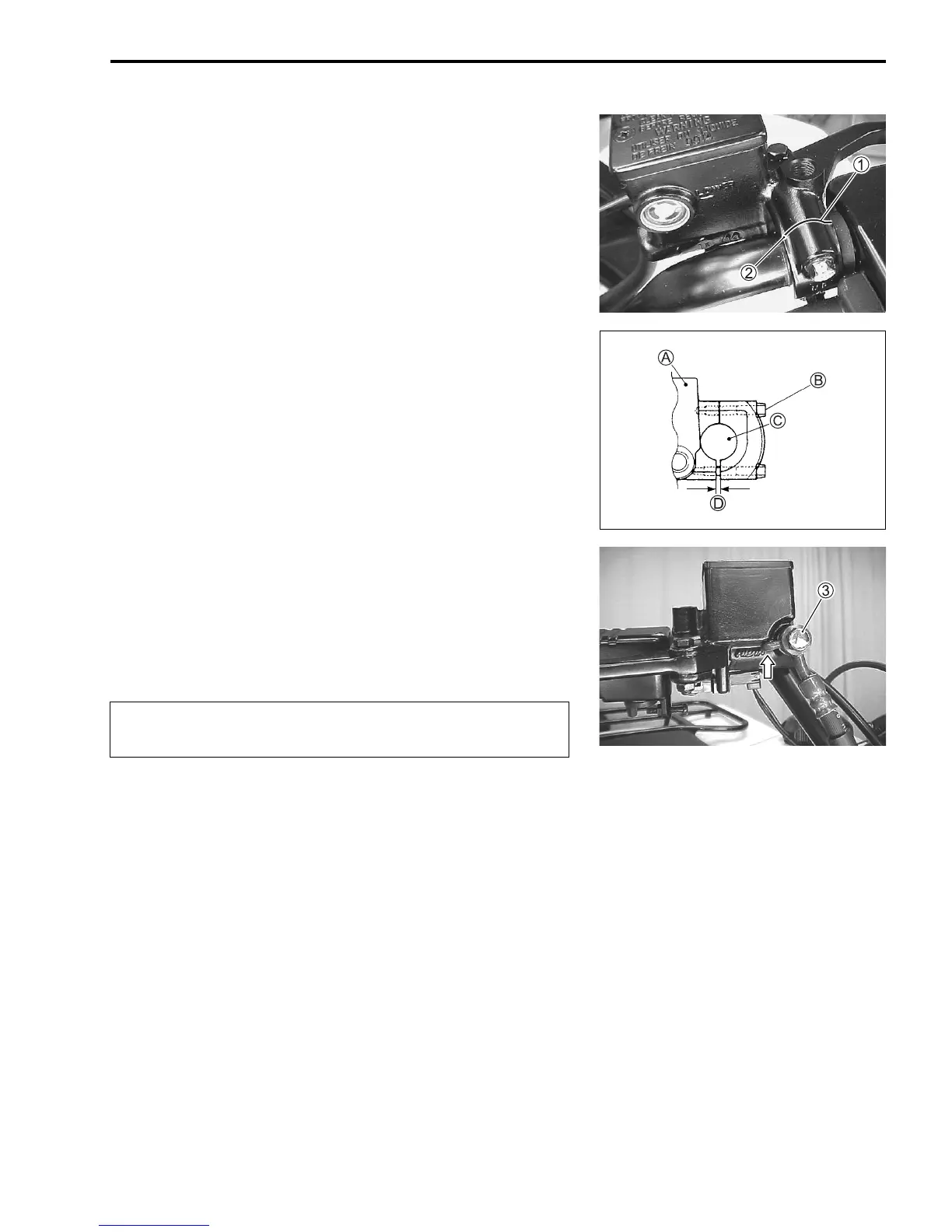

• Align the master cylinder holder’s mating surface 1 with the
punched mark 2 on the handlebars and tighten the upper
clamp bolt first.
Master cylinder clamp bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
A Master cylinder
B Master cylinder upper clamp bolt
C Handlebar
D Clearance
• Tighten the brake hose union bolt 3 to the specified torque.
Brake hose union bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
NOTE:
After touching the brake hose union to the stopper, tighten the
union bolt.
Bleed air from the brake system after reassembling
the master cylinder. (2-14)
