3-10 ENGINE

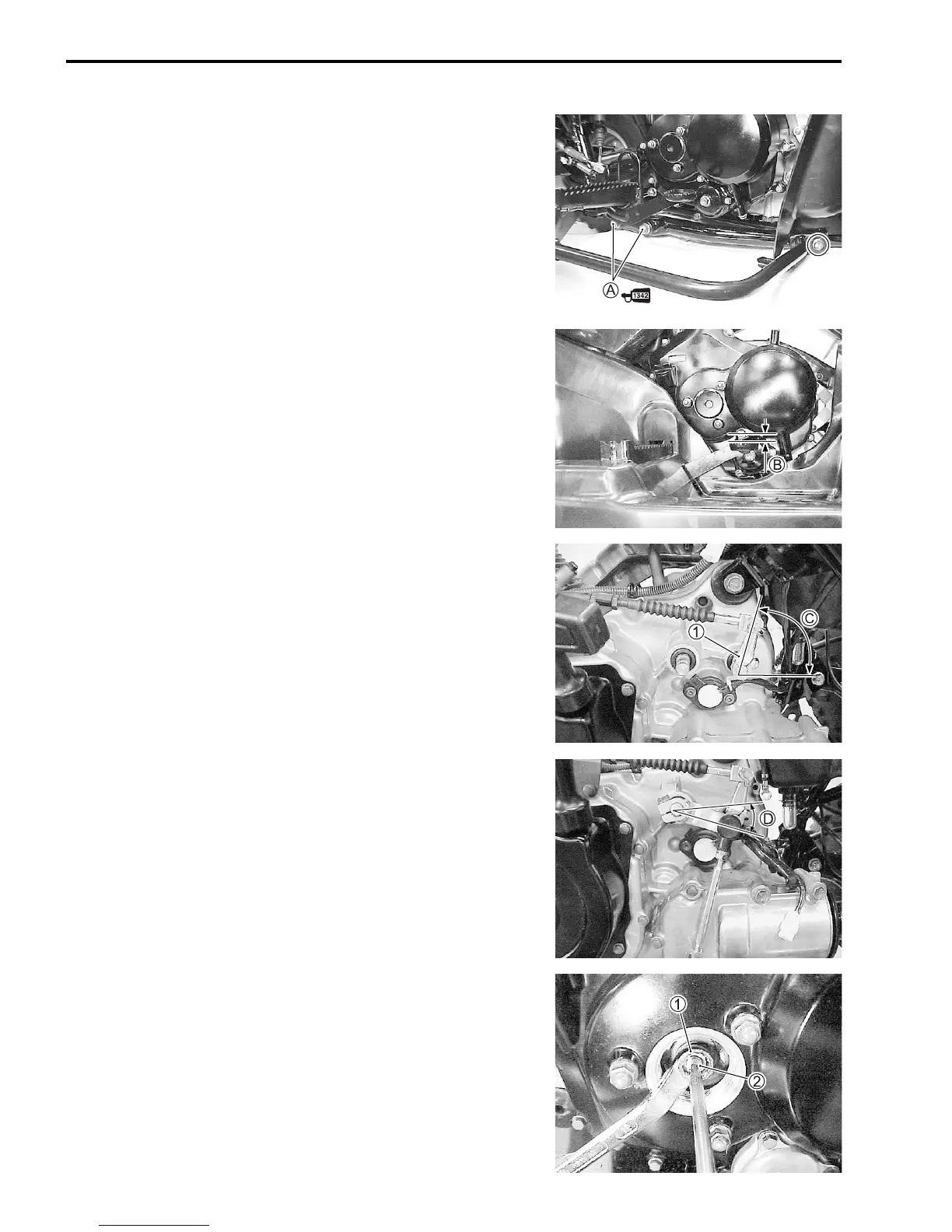

• Apply THREAD LOCK SUPER “1342” to the bolts A and
tighten each bolt to the specified torque.
Footrest bolt: 8 mm: 26 N·m (2.6 kgf-m, 19.0 lb-ft)
10 mm: 55 N·m (5.5 kgf-m, 40.0 lb-ft)
99000-32050: THREAD LOCK “1342”
• Adjust the brake pedal play B.
Brake pedal play B: 20 – 30 mm (0.8 – 1.2 in)
• Install the reverse gearshift arm 1.
Reverse gearshift arm angle C: 70°
• Install the gearshift lever as shown.
Gearshift arm angle D: 20°
• Loosen the locknut 1.
• Rotate the adjusting screw 2 clockwise until it stops.
• Rotate the screw 2 1/16 – 1/8 turn back.
• Tighten the locknut 1 by holding the screw 2.
Locknut 1: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
