ENGINE 3-41

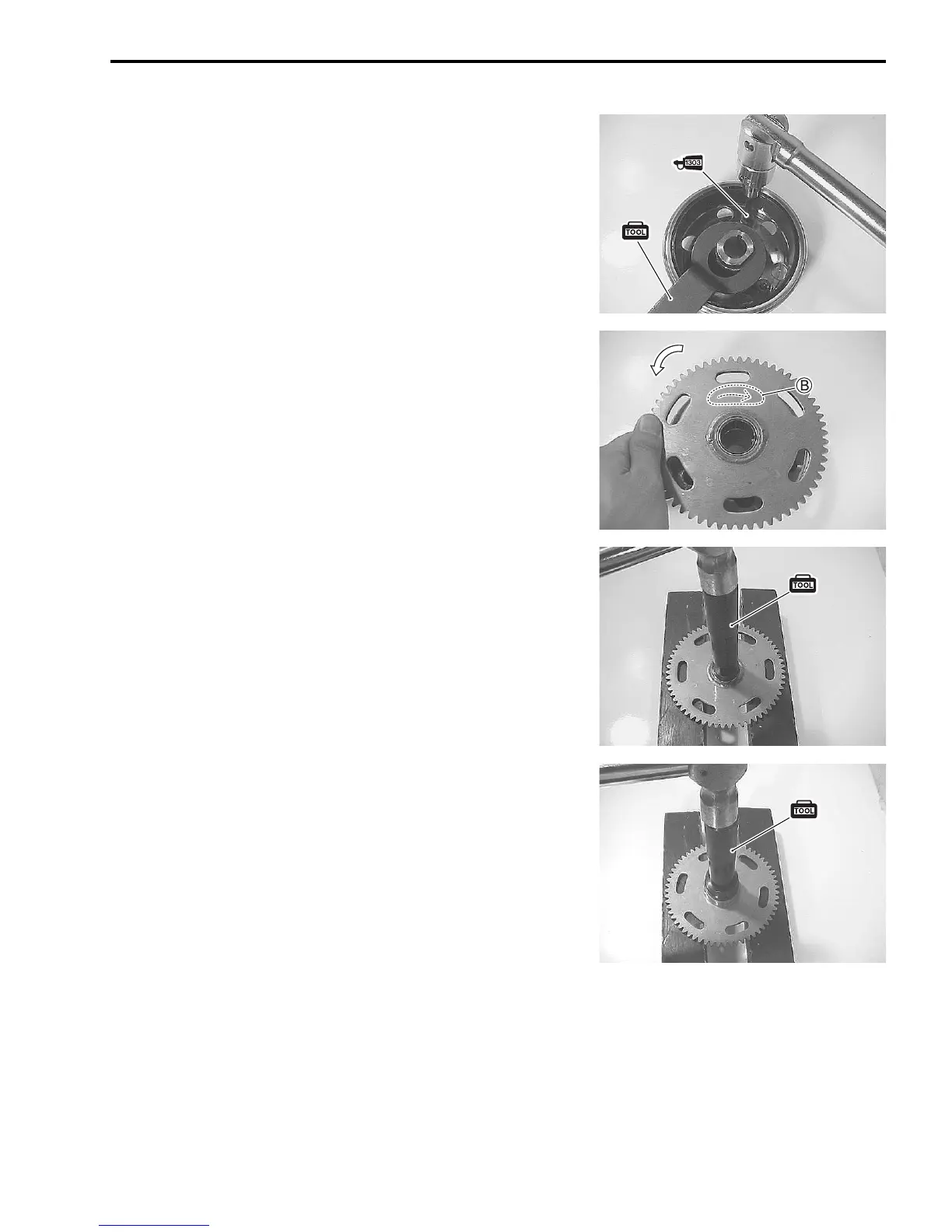

• Apply THREAD LOCK SUPER “1303” to the bolts, and then
tighten them to the specified torque with a offset wrench.
Starter clutch bolt: 26 N·m (2.6 kgf-m, 19.0 lb-ft)
99000-32030: THREAD LOCK SUPER “1303”
09930-44520: Rotor holder
• Install the starter driven gear to the starter clutch.
• Check that the starter driven gear turns in the opposite direc-
tion of the arrow mark B on the rotor while holding the gener-
ator rotor. The gear never turns in the direction of the arrow.
• If there is anything unusual, replace the one way clutch.
• Check the starter driven gear bearing. If there is anything
unusual, replace the bearing.
• Remove the bearing with the special tool.
09913-70210: Bearing installer/remover set
• Install the bearing with the special tool.
09913-70210: Bearing installer/remover set
