9. FINAL DRIVING MECHANISM
9-2

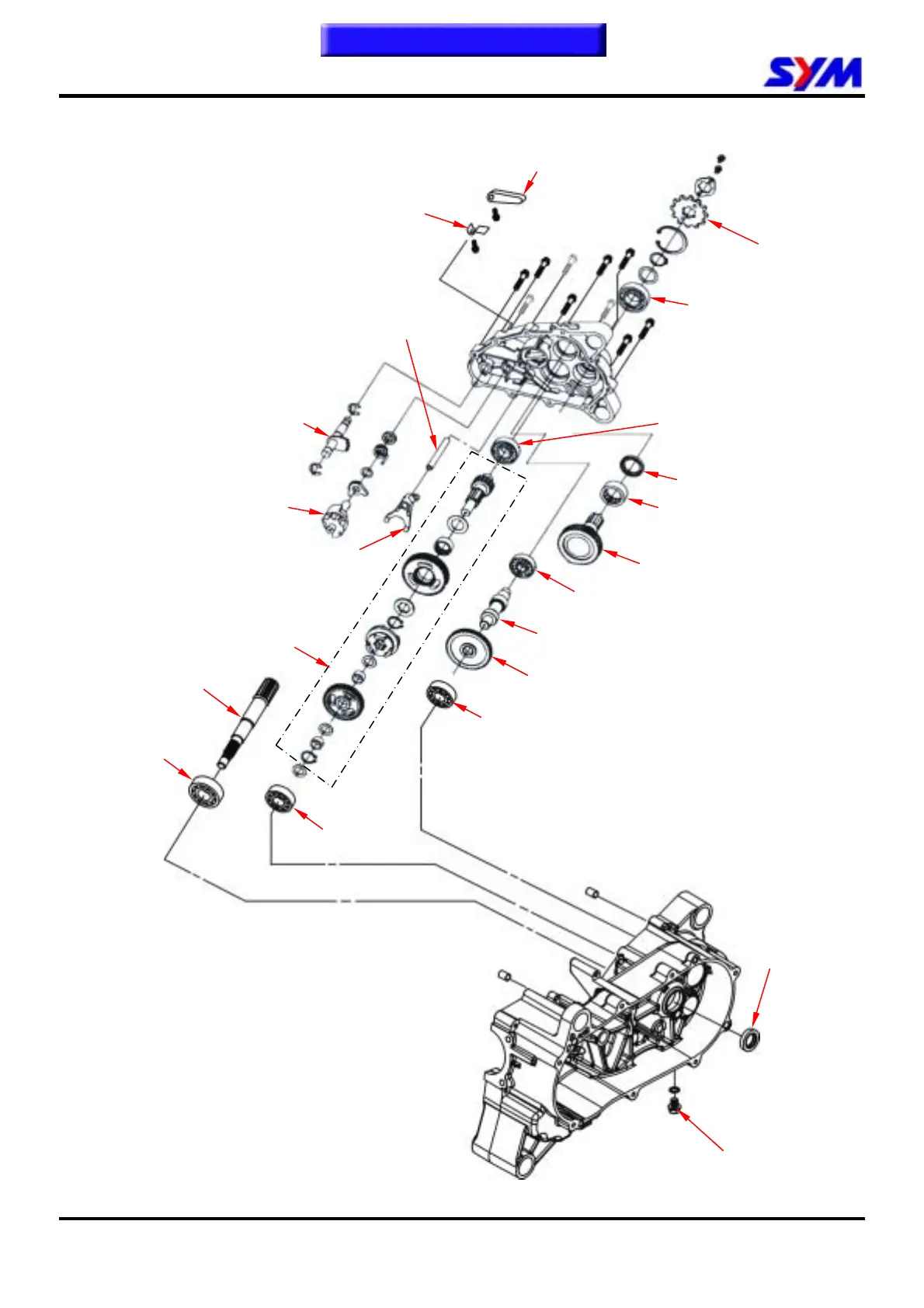

Mechanism Diagram - transmission
Final shaft
Drive sprocket
Counter gear
Counter shaft
Drive shaft
Gear oil drain bolt
1.1~1.5kgf-m
Bearing (6203)
Bearing (6205LU)
Bearing (6204)
Bearing (6302)
Bearing (6202)
Bearing (CSB204)
Shift spindle arm
Shift spindle bracket
Shift fork shaft
Shift spindle
Gear shift drum
Shift fork
Gear shift shaft
Needle bearing (4905)
Oil seal
(20x32x6)
Oil seal (30x40x5)
