15. STEERING / SUSPENSION
15-8

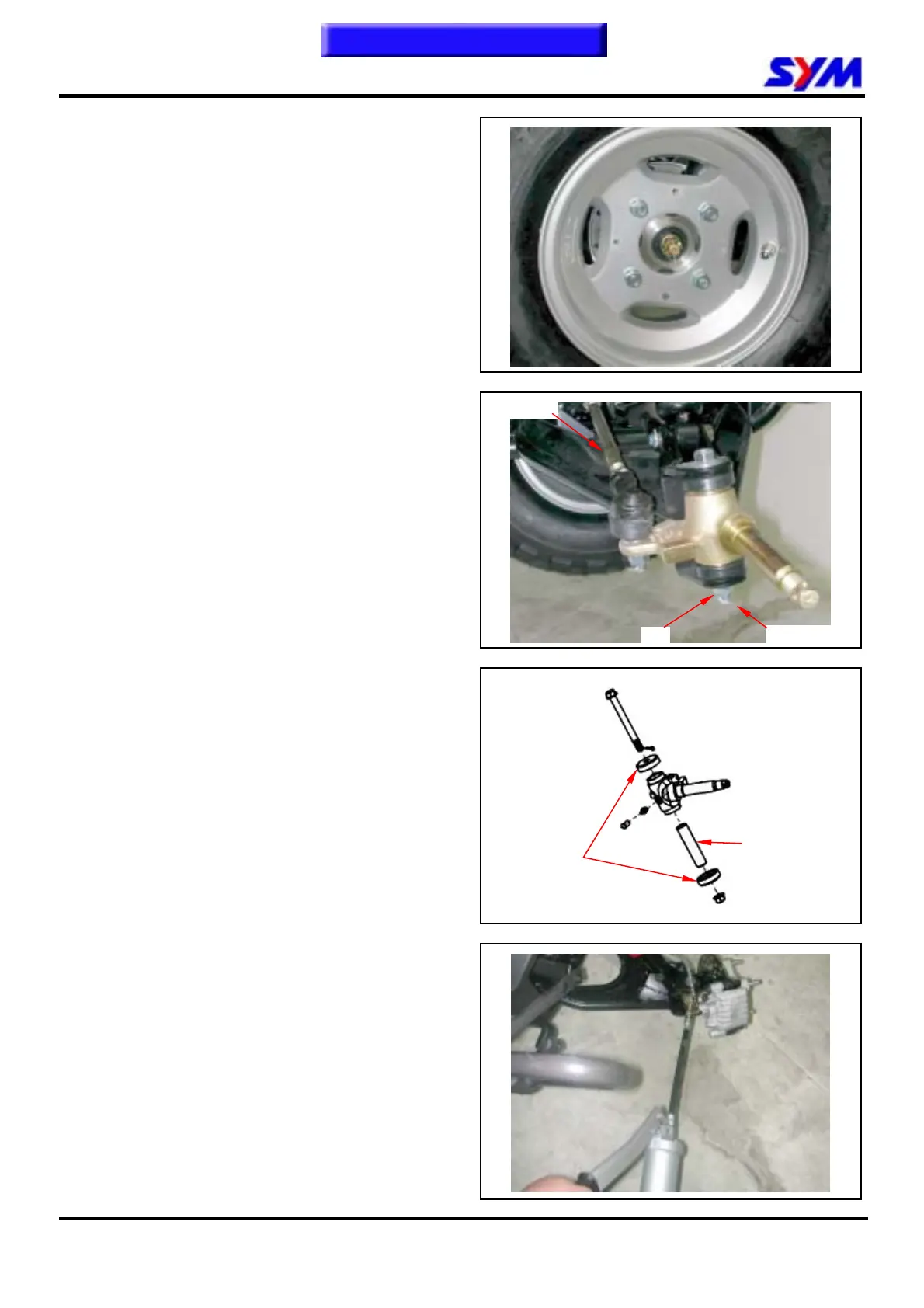

Knuckle
Remove
Remove front wheel, front wheel hub and front
brake caliper mounting seat.
Remove cotter pin and tie-rod nut, remove tie rod.
Remove cotter pin and flange pin hole bolt nut,
remove bolt, sleeve, seal cover and knuckle.
Inspection
Inspect the kingpin and knuckle for damaging or
cracking.
Installation
Install in reverse order of removal procedures.
Torque value:
Steering tie-rod nut 5.0kgf-m
Knuckle nut 5.0kgf-m
After tightened the nuts, install the cotter pins.
Lubricate with grease into knuckle.
To this chapter contents
Nut
Tie-rod
Cotter nut
Seal cover
Sleeve
To Next Page
