2. MAINTENANCE INFORMATION
2-10

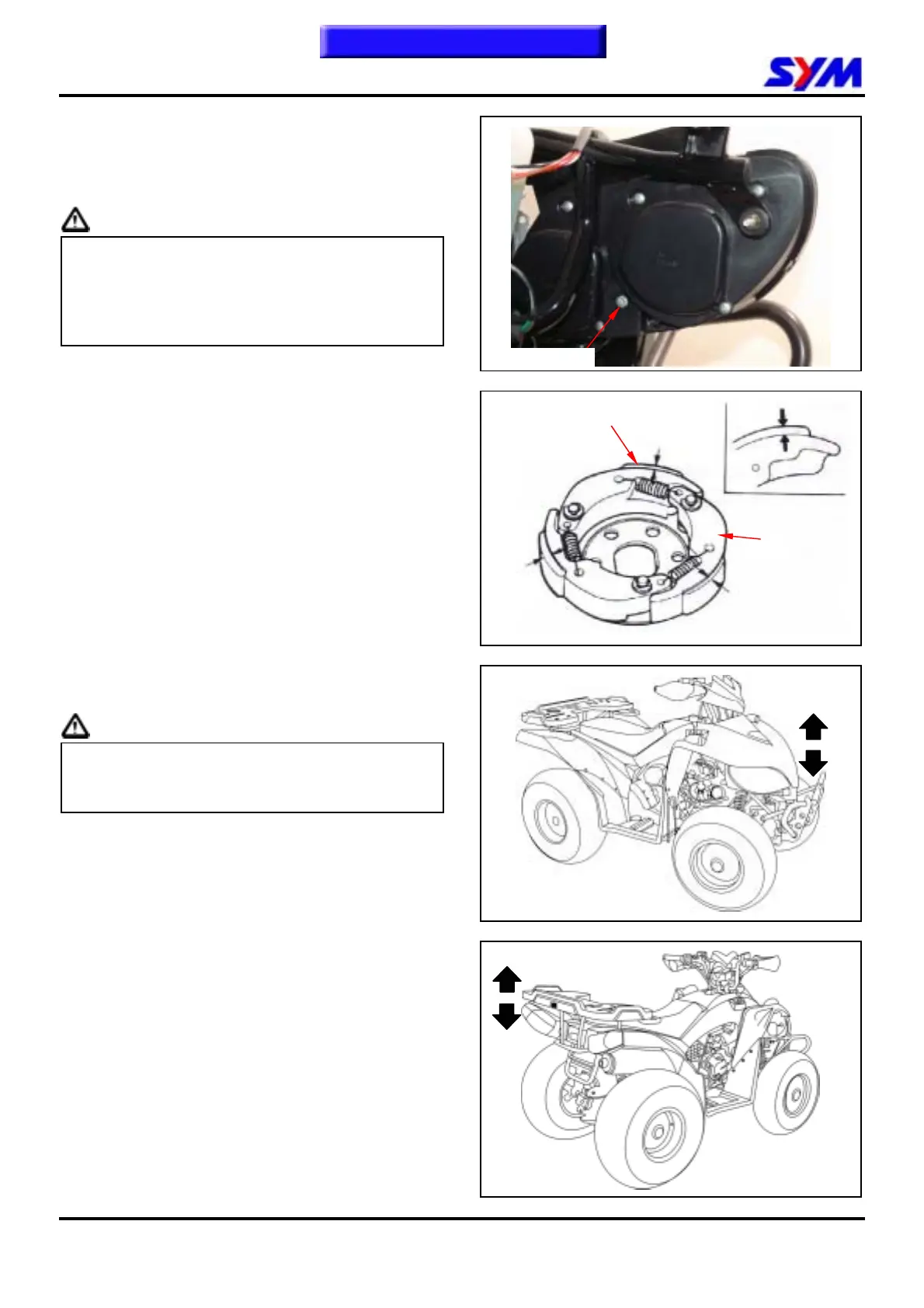

Headlight Beam Distance
Turn on main switch
Headlight beam adjustment. Turn the headlight
adjustment screw to adjust headlight beam high.
Caution
y To adjust the headlight beam follows related
regulations.
y Improper headlight beam adjustment will
make in coming driver dazzled or insufficient
lighting.
Clutch Disc Wear
Run the ATV and increase throttle valve opening
gradually to check clutch operation.
If the ATV is in forward moving and shaking, check
clutch disc condition. Replace it
Cushion
Warning
y Do not ride the ATV with poor cushion.
y Looseness, wear or damage cushion will make
poor stability and drive-ability.
Front cushion
Press down the front cushion for several times to
check it operation.
Check if it is damage
Replace relative parts if damage found.
Tighten all nuts and bolts.
Rear Cushion
Press down the rear cushion for several times to
check it operation.
Check if it is damage
Replace relative parts if damage found.
Drive plate
Adjust screw
Clutch weight
