15. STEERING / SUSPENSION
15-6

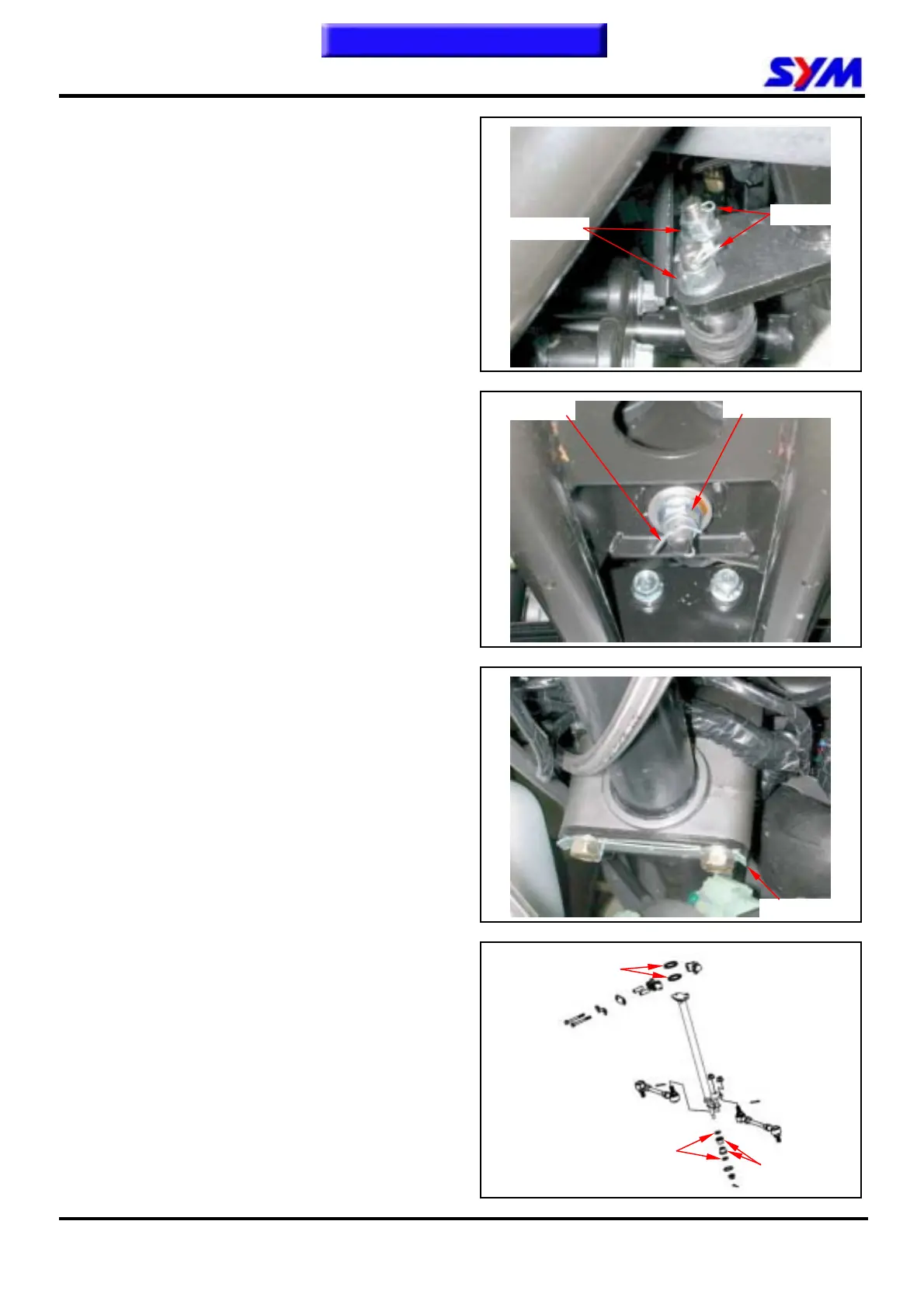

Steering Shaft
Remove
Remove cotter pins, and loosen right and left
steering tie-rod nuts.
Remove tie-rod.
Remove the cotter pin below steering shaft, and
remove steering shaft nut and washer.
Bend out the steering shaft holder nut fixed plate.
Loosen 2 bolts, and then remove steering shaft
holder, nut fixed plate, pressed plate and steering
shaft.
Inspection
Check oil rings for wear or damage, and replace it
if necessary.
Measure the holder inner diameter.
Maximum limit: Ø39.5 mm
Installation
Install in reverse order of removal procedures.
Apply with grease onto oil liner and holder.
Torque value:
Steering shaft holder bolt 3.4kgf-m
Steering shaft nut 5.0kgf-m
Steering tie-rod nut 5.0kgf-m
Oil rings
Cotter pin
Tie-rod nuts
Cotter pin
To this chapter contents
Steering shaft nut
Fixed plate
Oil rings
Oil liners
