10. ALTERNATOR/STARTING CLUTCH
10-3

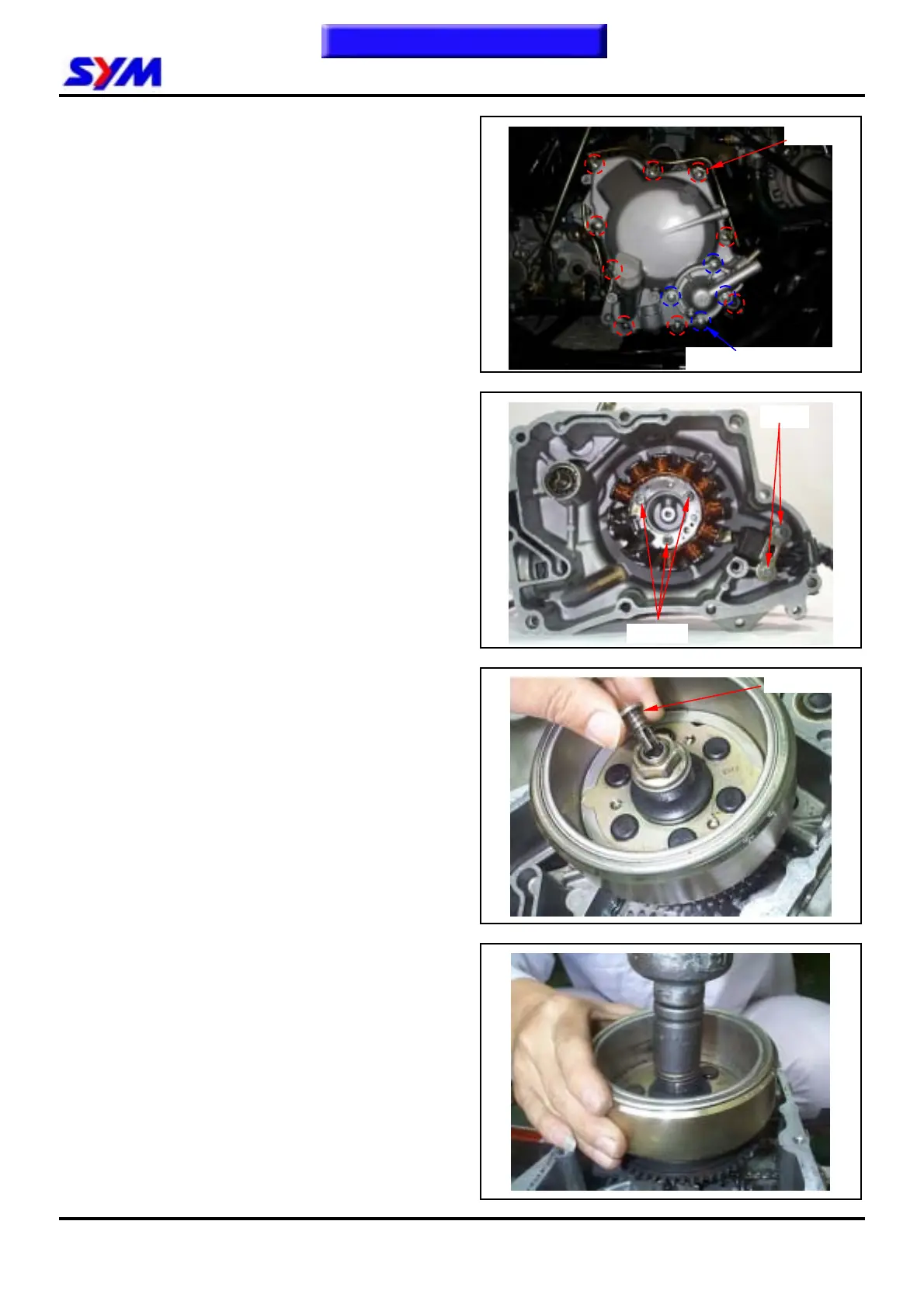

Right Crankcase Cover Removal
Remove left footrest and muffler.
Drain out the engine oil and coolant, and then
remove coolant hoses.
Remove water pump cover (4 bolts).
Remove 9 bolts from the right crankcase cover.
Remove the right crankcase cover.
Remove dowel pin and gasket.
A.C.G. Set Removal
Remove 2 mounted bolts from pulse generator
and then remove it.
Remove 3 screws from right crankcase cover and
then remove generator coil set.
Flywheel Removal
Remove left crankcase cover.
Remove oil through and spring from crankshaft.
Hold the flywheel by drive face with universal
holder, and remove its nut.
Special tool:
Universal Holder
2 bolts
9 bolts
3 screws
To this chapter contents
Oil through
Water pump cover bolts
