4. FUEL SYSTEM
4-5

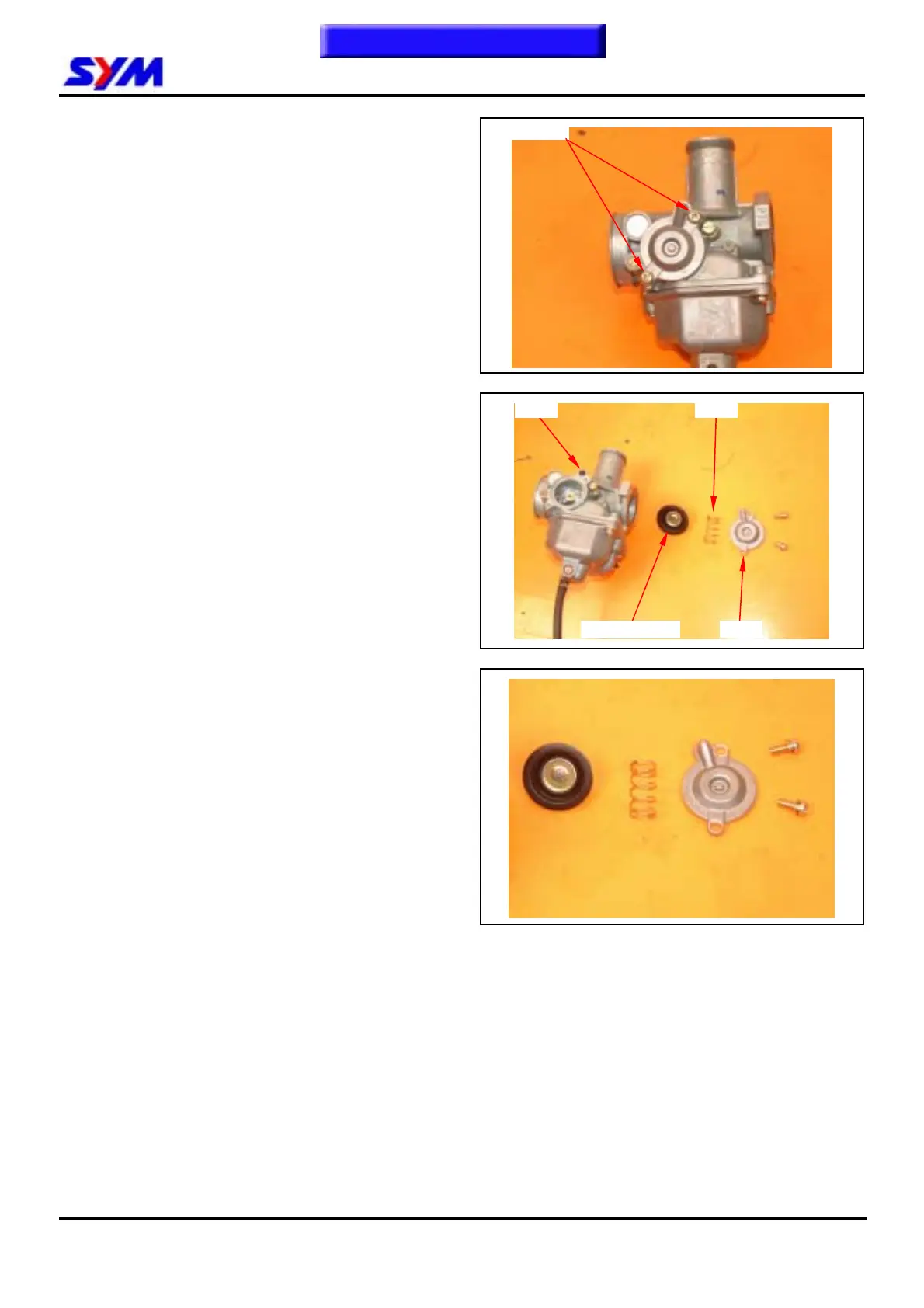

Air Cut-Off Valve
Disassembly
Remove 2 screws.
Remove air cut-off valve cover, spring and valve.
Inspection
Check the valve is in normal.
If the valve is in normal, it will restrict air-flow.
If air-flow is no restrict, replace carburetor
assembly.
Check the vacuum pipe o-ring is in normal.
Assembly
Install in reverse order of removal procedures.
To this chapter contents
2 screws
O-ring
Spring
Air cut-off valve
Cover
