8. V-BELT DRIVING SYSTEM/KICK STARTER

8-3

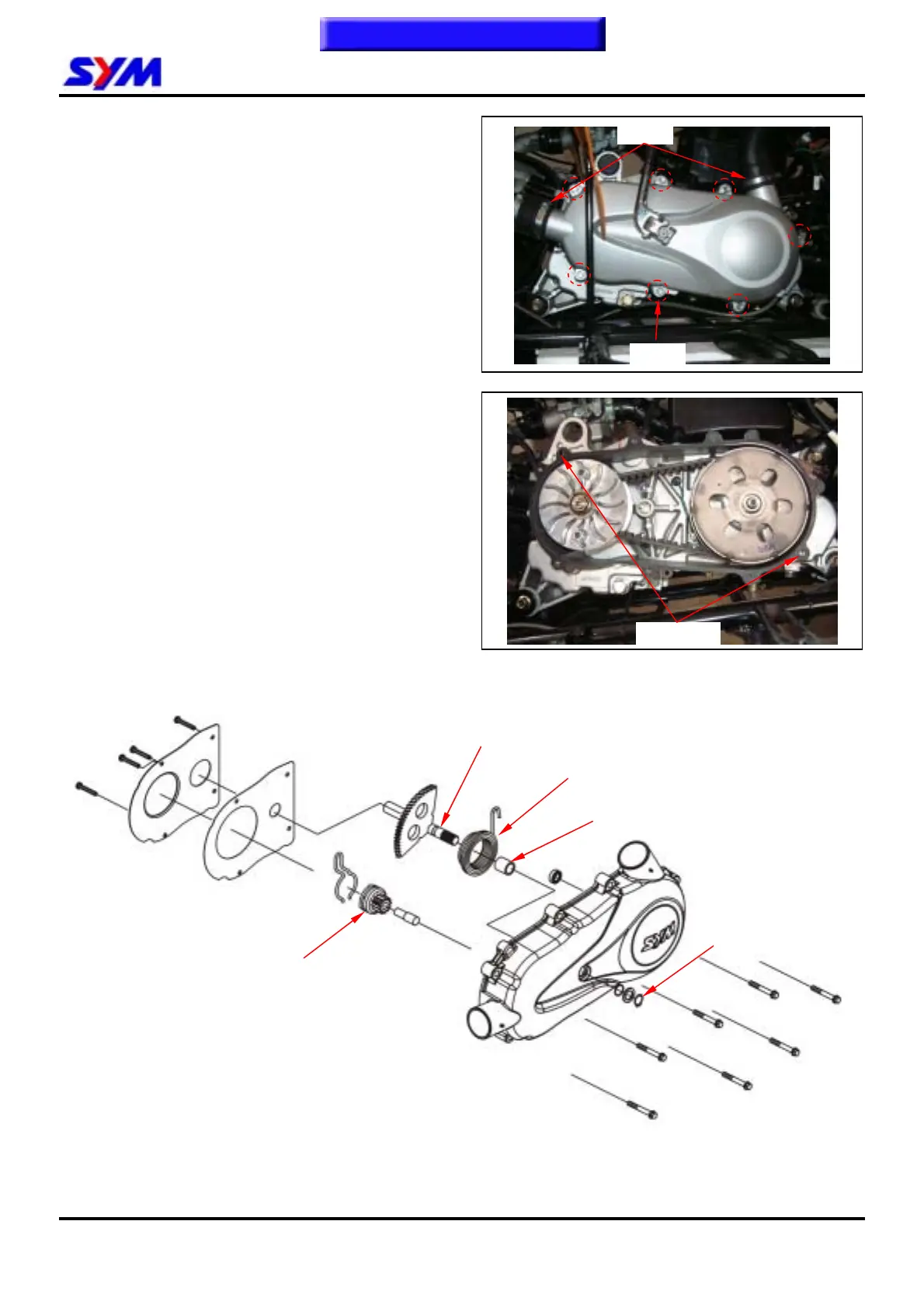

Left Crankcase Cover

Left crankcase cover removal

Release the clamp strips of left crankcase cover

ducts, and then remove the ducts.

Remove left crankcase cover. (7 bolts)

Remove 2 dowel pin and gasket.

Left crankcase cover install

Install left crankcase cover in the reverse

procedures of removal.

To this chapter contents

Clamps

7 bolts

Dowel pins

Kick tarter spindle

Snap clip

Return spring

Driven gear

Bush
