2. MAINTENANCE INFORMATION
2-7

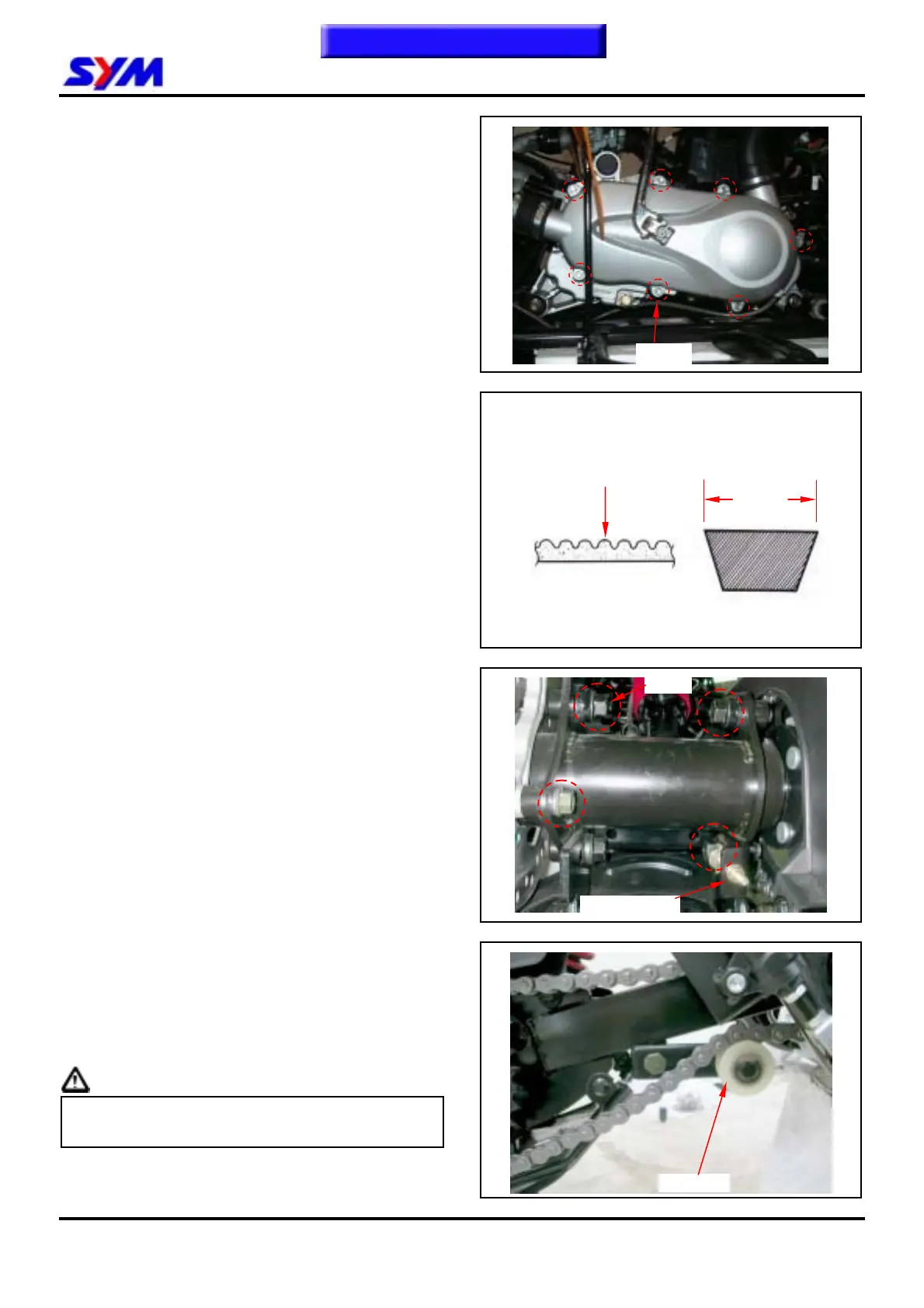

Drive Belt
Loosen the 2 clamp strips of left crankcase cover,
and then remove the left crankcase cover vapor
hose.
Remove 7 bolts of the engine left side cover and
the cover.
Check if the belt is crack or worn out.
Replace the belt if necessary or in accord with the
periodical maintenance schedule to replace it.
Width limit: 18.5mm or above
Drive Chain
Check the drive chain
Park the ATV on a level ground, and shift the
transmission onto neutral.
Measure the drive chain slack midway between
the sprockets.
Chain slack: 15~25mm (5/8~1 inch)
Adjust the chain slack
Loosen the axle holder lock bolts and turn drive
chain adjusting nuts until get the correct slack.
Tighten the axle holder bolts.
Torque: 3.25kgf-m
Caution
y This type ATV has a chain tensioner to adjust
and protect drive chain.
Teeth
Width
7 bolts
To this chapter contents
4 bolts
Adjustment nut
Tensioner
