12. COOLING SYSTEM
12-12
Thermostat
Please refer to chapter 17 for inspection of
temperature sensor.

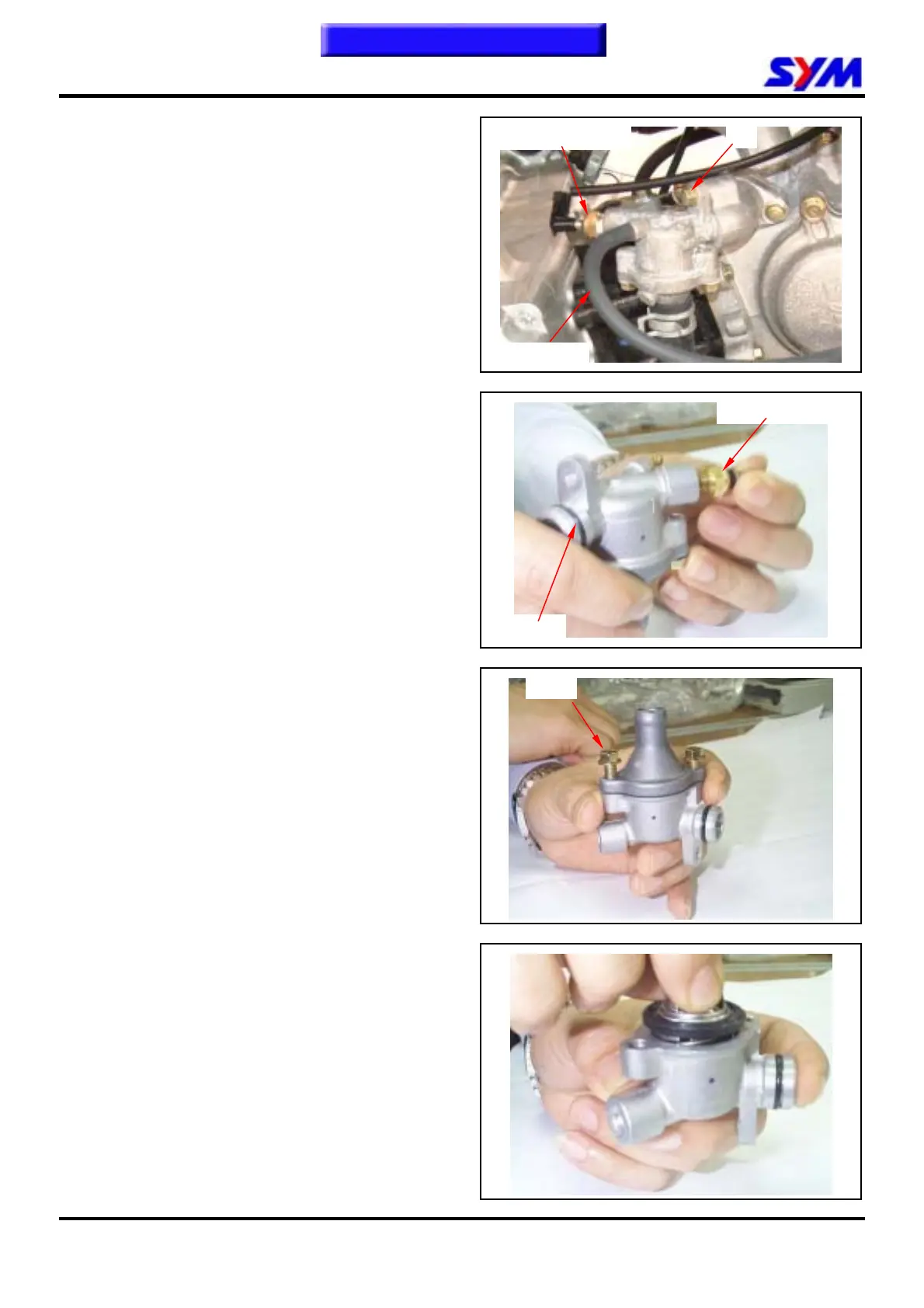

Removal
Drain out the coolant.
Disconnect the cable of temperature sensor.
Disconnect the by-pass pipe.
Remove the thermostat set. (1 bolt)
Disassembly
Remove the temperature sensor and O-ring from
the thermostat body.
Remove 2 bolts and separate the thermostat body
from the cover.
Remove the thermostat.
2 bolts
O-ring
Temperature sensor
Bolt Temperature sensor
By-pass pipe
