9. FINAL DRIVING MECHANISM
9-10

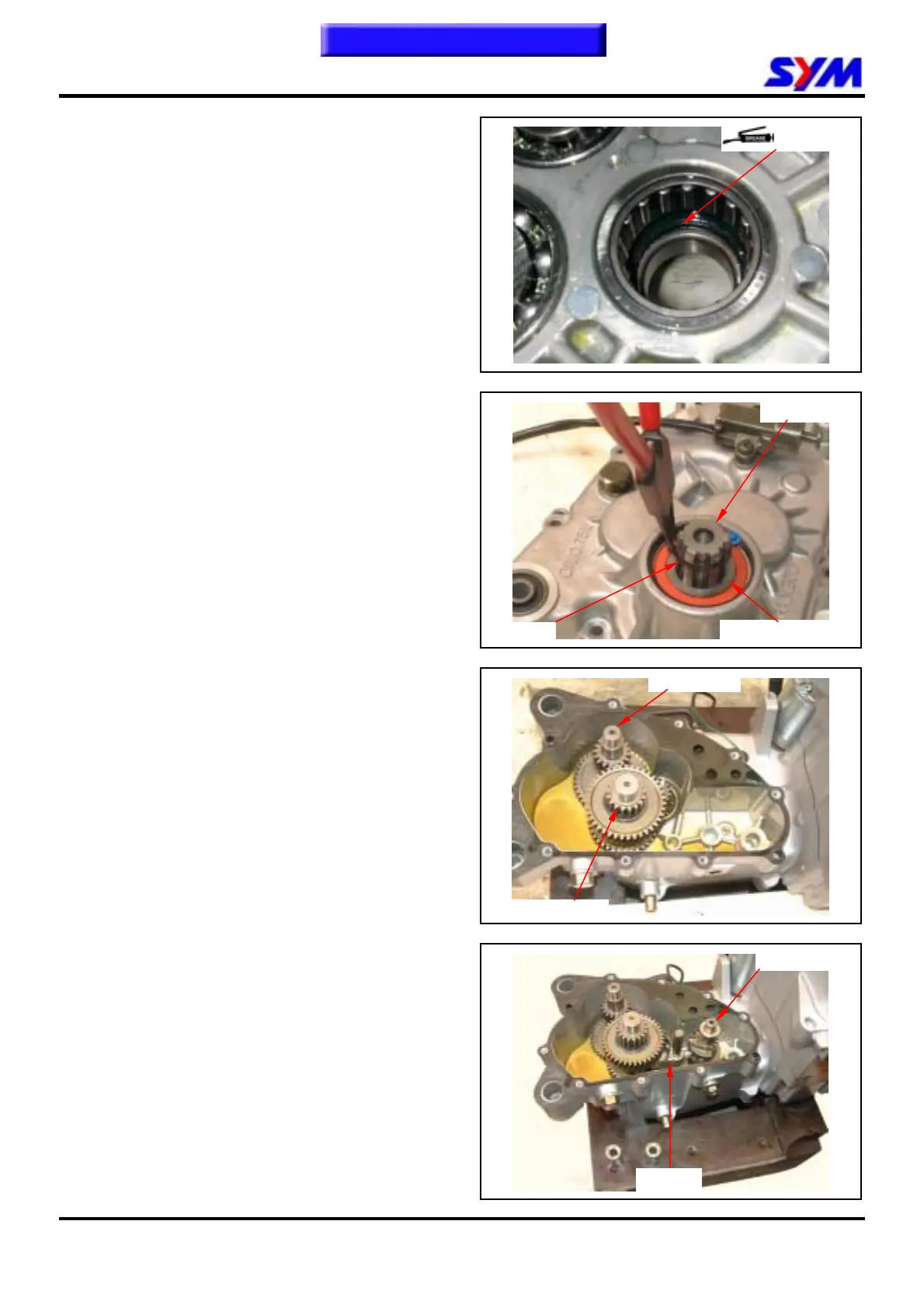

Re-assembly of Final Driving
Mechanism
Apply with grease onto the oil seal lip of final
driving shaft.
Install final shaft, and then install the washer and
cir clip.
Install counter shaft and gear shift shaft onto gear
box.
Install shift drum, shift fork and fork shaft onto gear
box.
Cir clip
Final shaft washer
Final shaft
To this chapter contents
Oil seal
Counter shaft
Gear shift shaft
Shift drum
Shift fork
