9. FINAL DRIVING MECHANISM
9-11

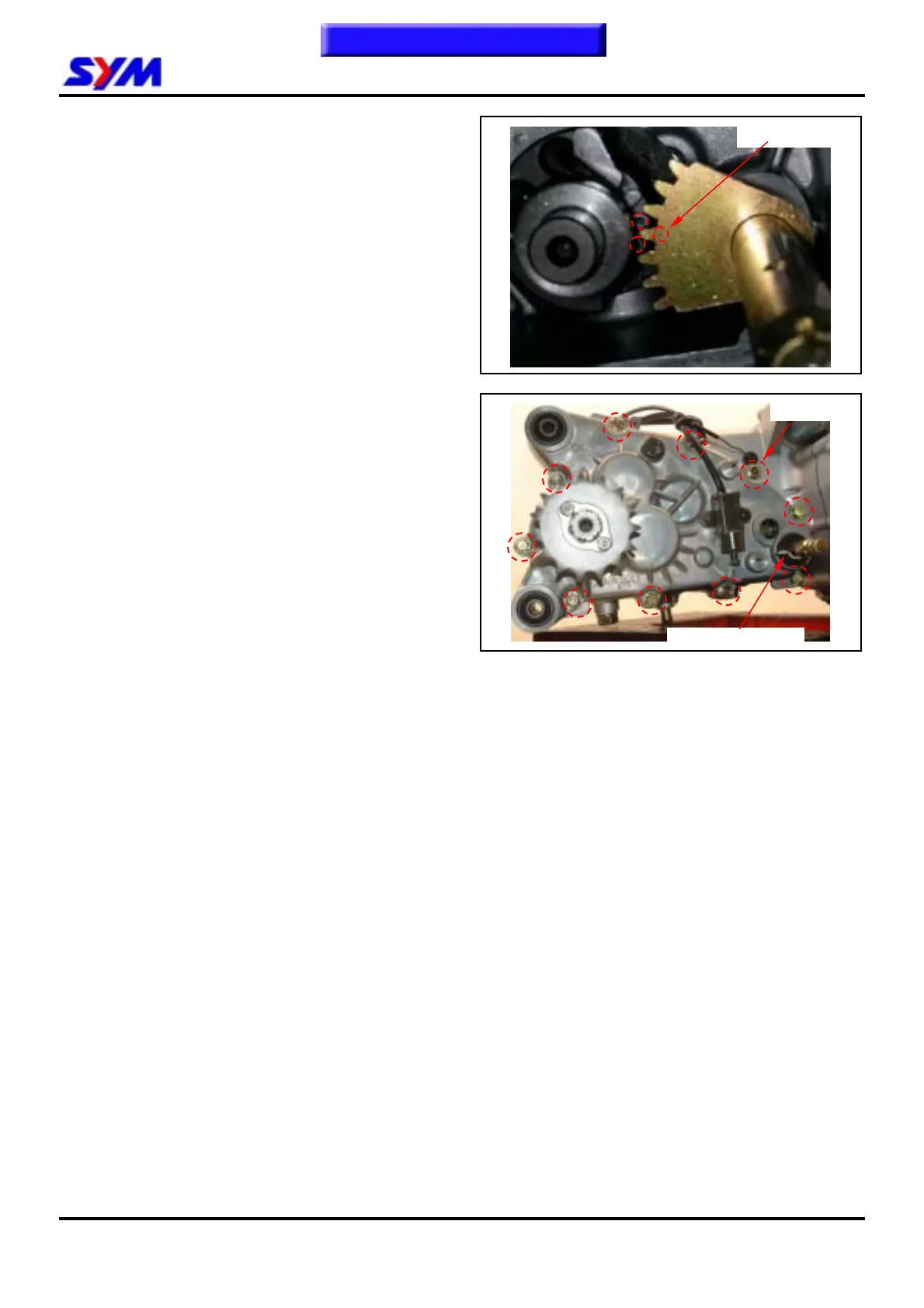

Align the position mark on the shift spindle
sprocket with that of shift drum, and then install
shift spindle.
Install dowel pin and new gasket.
Install gear box cover and bolts, and tighten.
Torque value: 1.0~1.4kgf-m
Apply with grease onto new oil seal lip, and then
install the shift spindle oil seal.
Special tool:
Oil seal driver (14x28x7)
Install the shift spindle bracket.
Add gear oil.
Gear oil quantity: 750c.c.
