11. CRANKCASE / CRANK
11-3

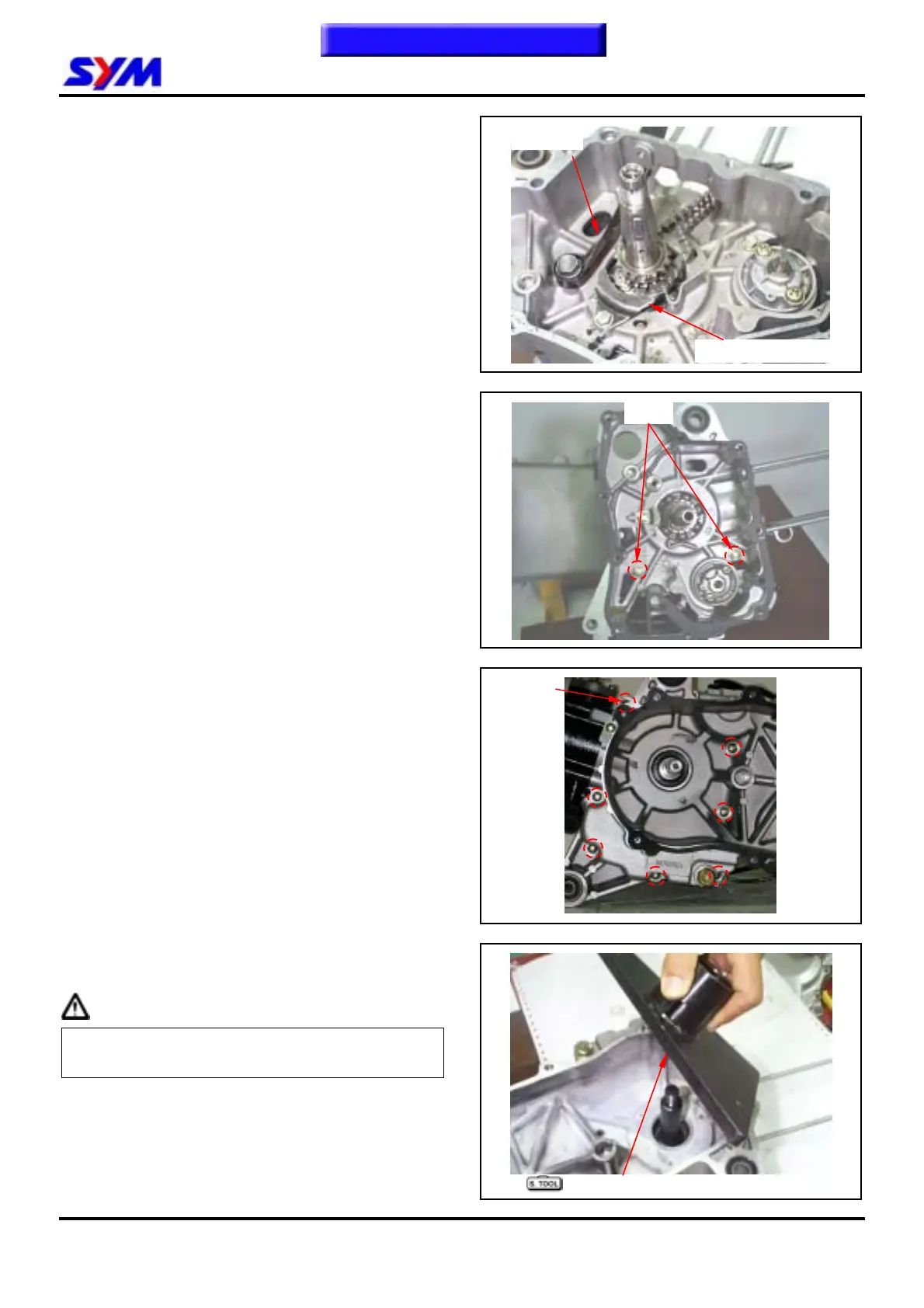

Disassembly of crankcase
Remove the cam chain setting plate, and then
remove cam chain.
Loosen the bolt and remove the tensioner.
Loosen 2 bolts on the right crankcase.
Loosen 7 bolts on the left crankcase.
Place right crankshaft case downward and left up
crankcase.
Caution
Care should be taken not to damage the contact
surfaces.
7 bolts
Cam chain setting plate
Tensioner
6 R/L. crank disassemble/install tool
2 bolts
