16. REAR BRAKE & REAR WHEEL & REAR CUSHION
16-1
Mechanism Diagram···························16-1
Maintenance Description···················16-2
Trouble Diagnosis ······························16-3
Rear Wheel··········································16-4
Rear Wheel Shaft Connecter ·············16-4
Rear Wheel Axle ·································16-5
Disk Brake System Inspection ··········16-9
Disk Brake System Inspection·········· 16-9
Adding Brake Fluid···························· 16-10
Brake fluid replacement / Air-bleed·· 16-11
Rear Brake Caliper····························· 16-12
Brake Disk ·········································· 16-13
Rear Brake Master Cylinder ·············· 16-13
Rear Cushion······································ 16-17

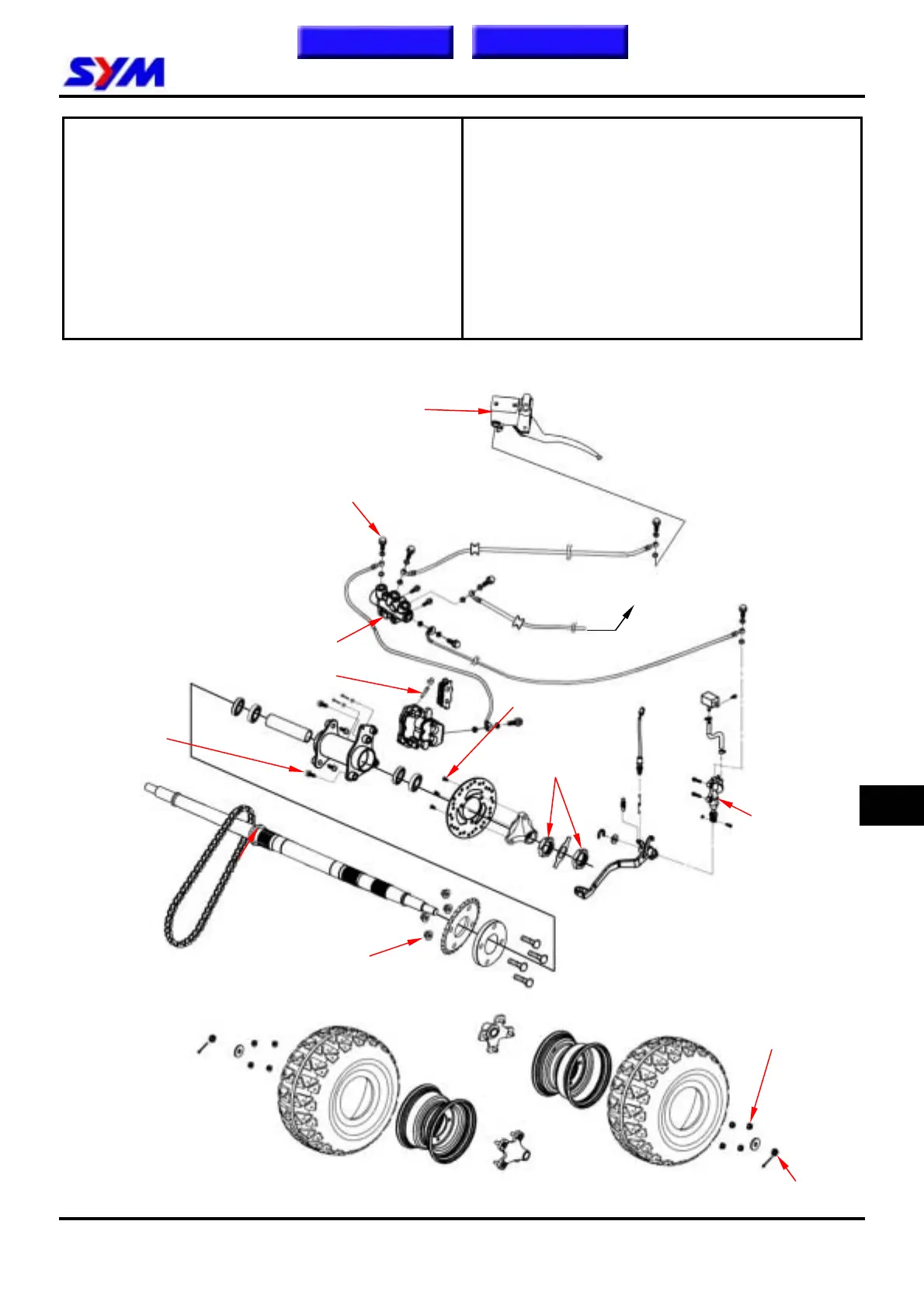

Mechanism Diagram
Home page
Contents
16
Rear
p
ressure control valve
To front pressure control valve
Brake disk bolts (4.25kgf-m)
Air-bleed
valve (0.5kgf-m)
Brake caliper bolts
(3.25kgf-m)
Brake hose bolts (3.5kgf-m)
Rear brake master cylinder A
Rear brake
master cylinder B
Rear axle castle nuts
(5.0kgf-m)
Rear wheel nuts
(2.4kgf-m)
Rear wheel axle
nuts (9.2kgf-m)
Driven gear nuts
(4.6kgf-m)
Rear axle holder
bolts (9.2kgf-m)
