14. FRONT BRAKE & FRONT WHEEL
14-4

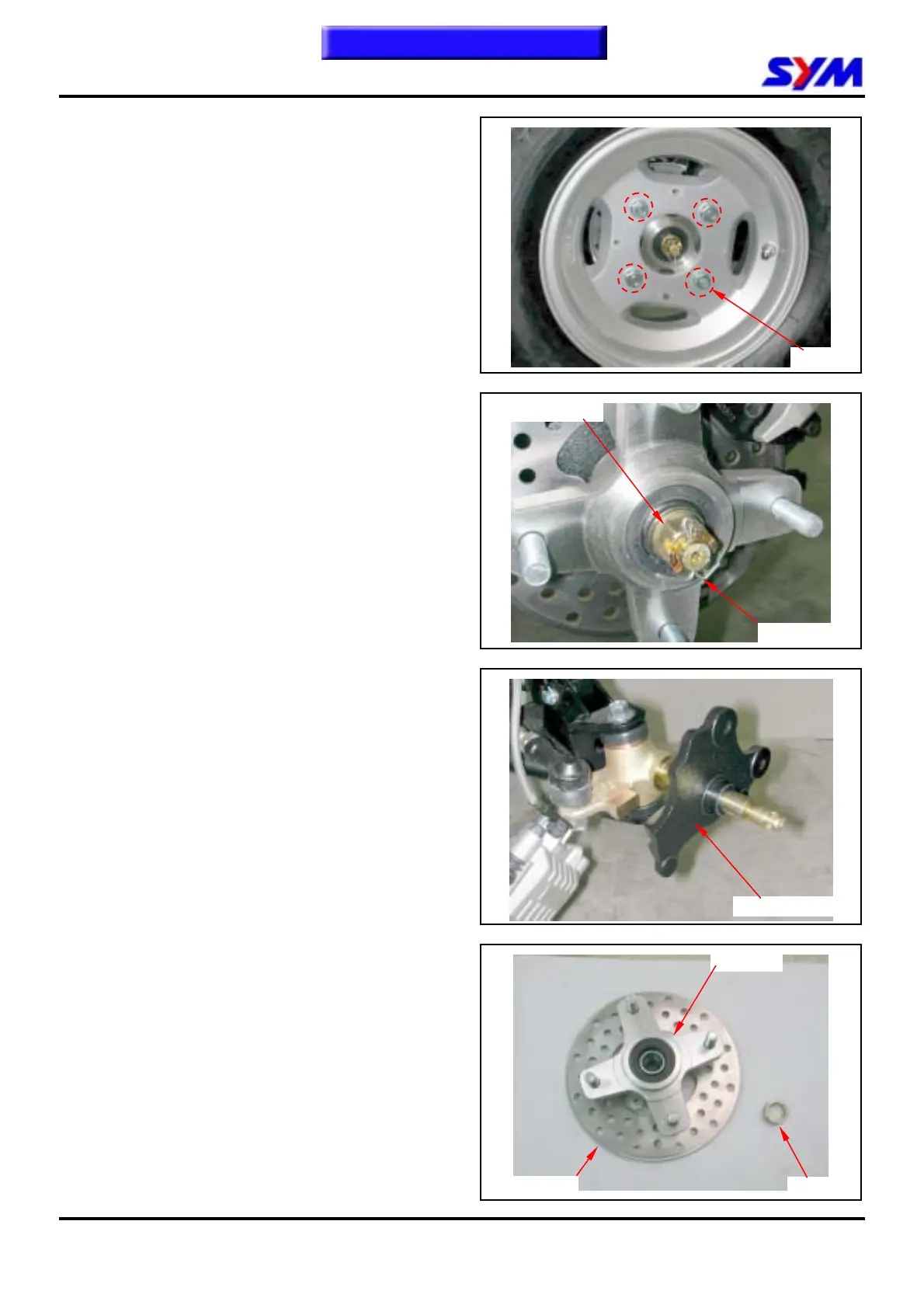

Front Wheel
Removal
Raise the front wheels off the ground by placing a
jack or other support under the frame.
Remove the front wheel nuts, and then remove
front wheels.
Installation
Install the front wheel and tighten the nuts.
Torque: 2.4kgf-m
Front Wheel Hub
Removal
Remove brake caliper.
Remove cotter pin, wheel hub nut and washer.
Remove wheel hub and brake disk.
Remove brake caliper mounting seat.
Inspection
Check bearings on wheel hub.
Rotate each bearing’s inner ring with fingers.
Check if bearings can be turned in smooth and
silent, and also check if bearing outer ring is
mounted on wheel hub.
If bearing rotation is uneven, noising, or loose
bearing mounted, then replace it.
Check oil seal for wear or damage, and replace it
if necessary.
Mounting seat
4 nuts
Wheel hub
Collar
Brake disk
