3. LUBRICATION SYSTEM
3-7
Gear Oil
Oil level inspection
Park the ATV on flat surface.
Check gear oil inspection window, gear oil level
whether above scale division.
Gear lubrication oil quantity has to be measured
with measure device.
If oil level is too low, add gear oil. Recommended
using King series oils.
Install oil join bolt.
Gear Oil Change
Remove oil join bolt.
Remove drain bolt and drain gear oil out.
Install the drain bolt after drained.
Torque value: 1.0~1.5kgf-m
Make sure that the drain bolt washer can be
re-used.
Add oil to specified quantity from the join hole.
Gear Oil Quantity: 1000 c.c. when replacing
Make sure that the join bolt washer can be
re-used, and install the bolt.
Start engine and run engine for 2-3 minutes.
Turn off engine and make sure that oil level is in
correct level.
Make sure that no oil leaking.

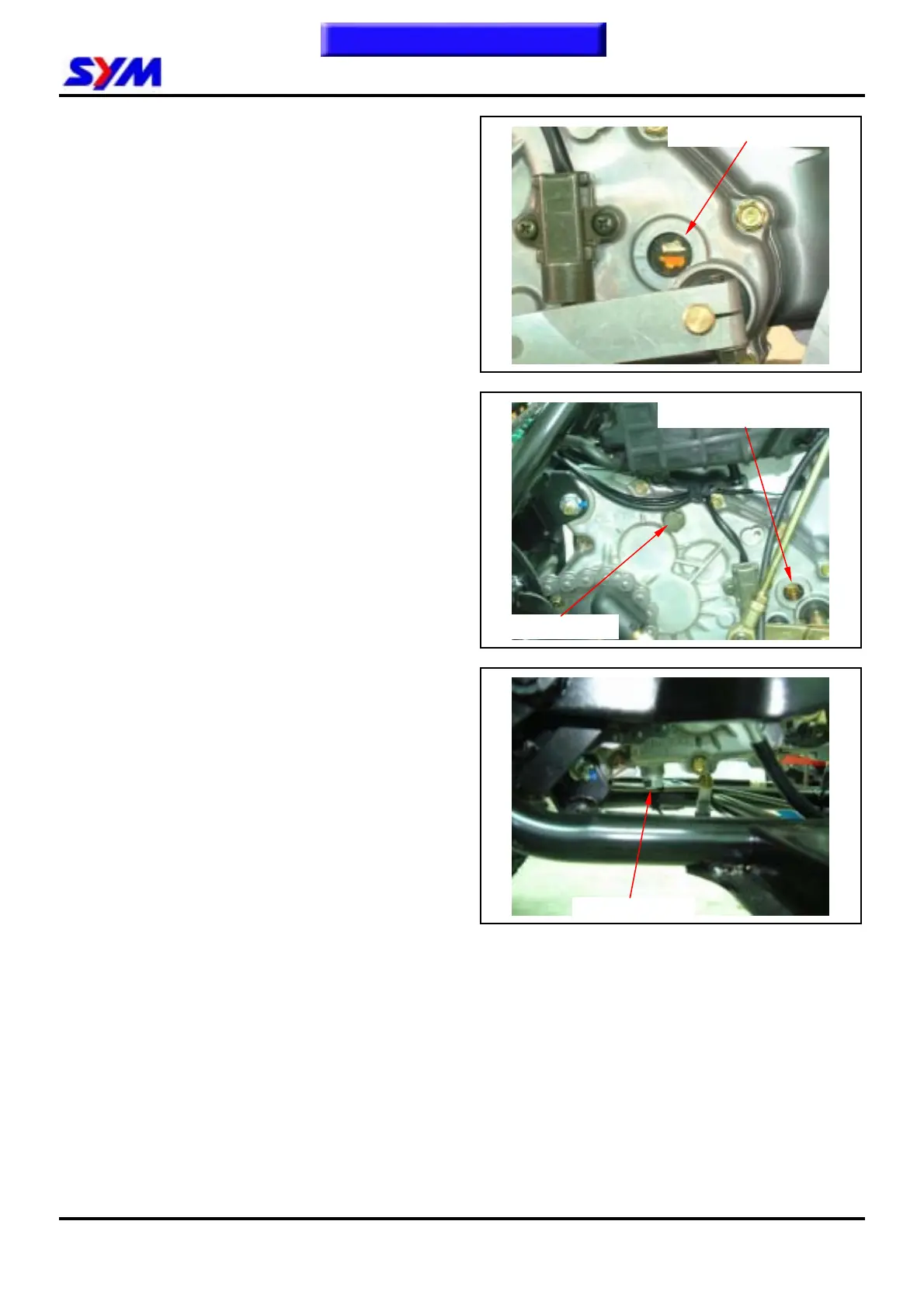

Gear oil Inspection window
Gear oil drain bolt
To this chapter contents
Gear oil join bolt
Gear oil Inspection window
