5. ENGINE REMOVAL
5-5

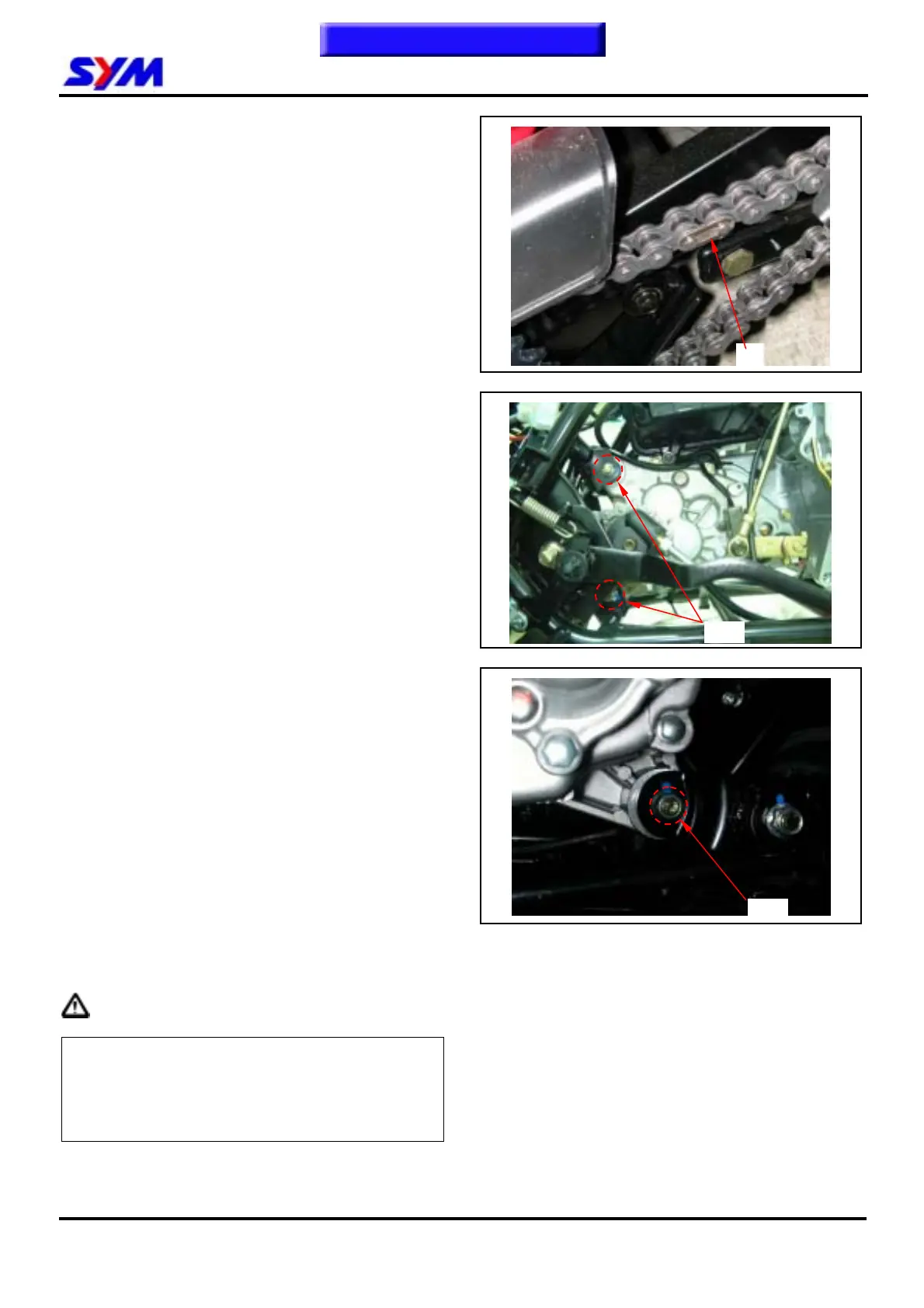

Remove the drive chain retaining clip and master
link, and then remove the drive chain.
Remove the rear side engine hanger mounting
nuts and bolts.
Remove the front side engine hanger mounting
nut and bolt, then remove engine.
Engine Installation
Check if the bush of engine hanger parts for
damage.
Install engine in the reverse procedures of
removal.
Caution
y Pay attention of foot & hand safety as engine
installation to avoid hurting.
y Do not bend or twist wires.
y Cables wires have to be routed in accordance
with normal layout.
Engine hanger Bolt:
Torque value: 4.0~5.0kgf-m
2 nuts
Clip
1 nut
