Sym Track Runner 200 - Front Brake and Front Wheel Service

14. FRONT BRAKE & FRONT WHEEL
14-1
Mechanism Diagram···························14-1
Maintenance Description···················14-2
Trouble Diagnosis ······························14-3
Front Wheel·········································14-4
Front Wheel Hub·································14-4
Disk Brake System Inspection ··········14-7
Adding Brake Fluid···························· 14-8
Brake fluid replacement / Air-bleed·· 14-9
Front Brake Caliper···························· 14-10
Brake Disk ·········································· 14-11
Front Brake Master Cylinder············· 14-11

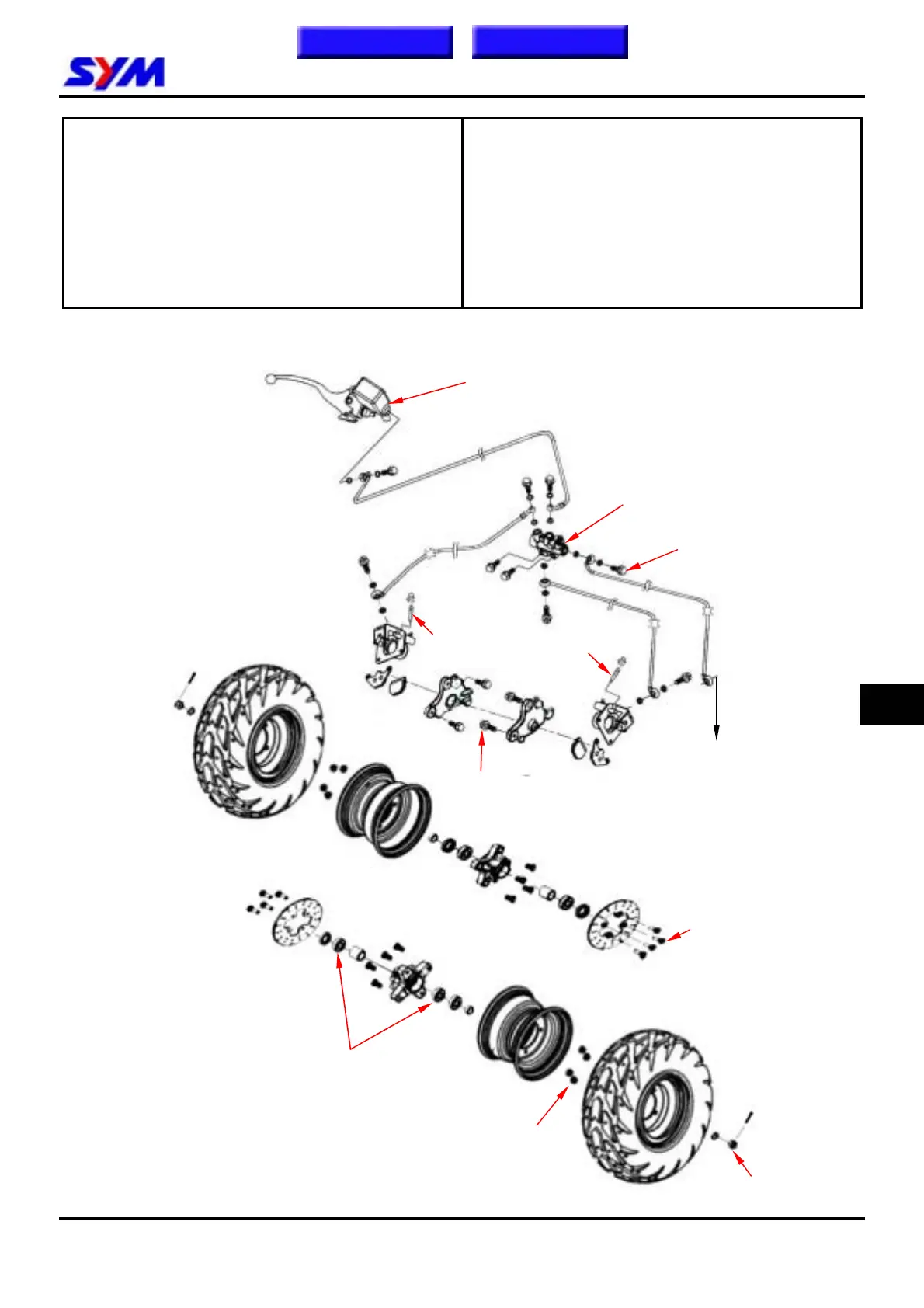

Mechanism Diagram
Brake disk bolts (4.25kgf-m)
Air-bleed valve (0.5kgf-m)
Brake caliper bolts
(3.25kgf-m)
Brake hose bolts (3.5kgf-m)
14
Home page
Contents
Front
p
ressure control valve
To rear pressure control valve
Front brake master cylinder
Front axle castle nuts
(5.0kgf-m)
Front wheel nuts
(2.4kgf-m)
Bearing (6203LU)
