16. REAR BRAKE & REAR WHEEL & REAR CUSHION
16-12

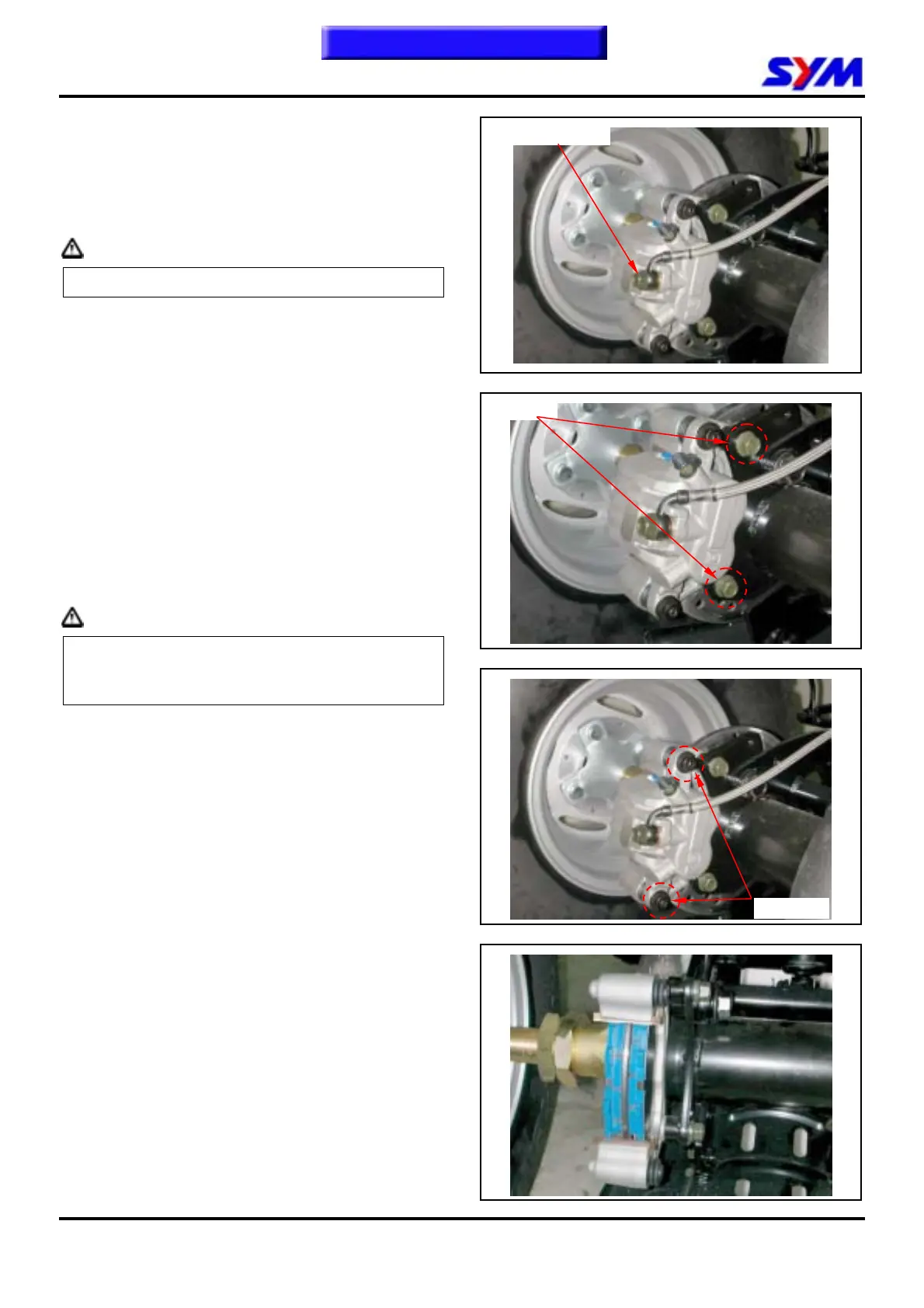

Rear Brake Caliper
Removal
Place a container under the brake caliper, and
loosen the brake hose bolt and finally remove the
brake hose.
Caution
Do not spill brake fluid on painted surfaces.
Remove two caliper bolts and the caliper.
Inspection
Make sure the brake linings condition. Replace
the linings if the brake linings wear limitation
groove close to the brake disk.
Installation
Install the brake caliper and tighten the attaching
bolts securely.
Torque: 3.25kgf-m
Caution
y Use M8 x 20 mm flange bolt only.
y Long bolt will impair the operation of brake
disk.
Use two seal washers and hose bolts to lock the
hose and brake caliper in place.
Torque: 3.5kgf-m
Refill up the brake fluid to the reservoir and make
necessary air bleeding.
Brake lining replacement
Remove two guide pins.
Remove brake caliper cylinder, and then remove
brake linings.
Install new linings and brake caliper cylinder.
Tighten the guide pins.
Torque: 1.8kgf-m
To this chapter contents
2 bolts
Brake hose bolt
Guide pins
