15. STEERING / SUSPENSION
15-10

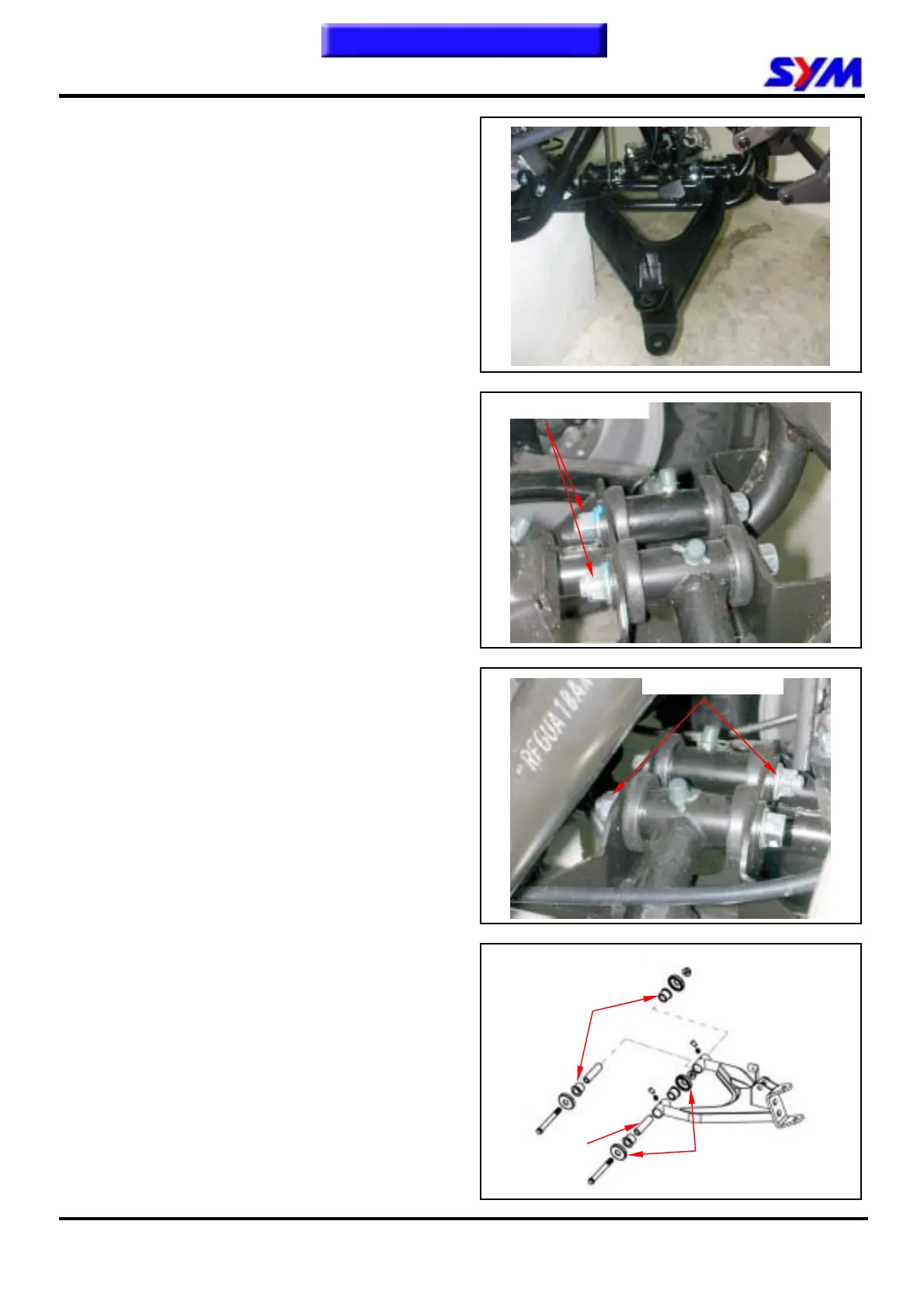

Suspension Arm
Remove
Remove front wheel, wheel hub, and brake caliper,
brake caliper mounting seat, tie-rod and front
cushion.
Loosen
suspension arm front side nuts, remove
swing arm bolts.
Loosen s
uspension arm rear side nuts, remove
swing arm bolts.
Remove s
uspension arm, spacer and seal covers.
Inspection
Inspect the suspension arm, spacer, bush and seal
cover for damage or bending.
Installation
Install in reverse order of removal procedures.
Torque value:
S
uspension arm nut 5.0kgf-m
Lubricate with grease into s
uspension arm.
Bush
To this chapter contents
Suspension arm nuts
Suspension arm nuts
Spacer
Seal cover
