16. REAR BRAKE & REAR WHEEL & REAR CUSHION
16-8

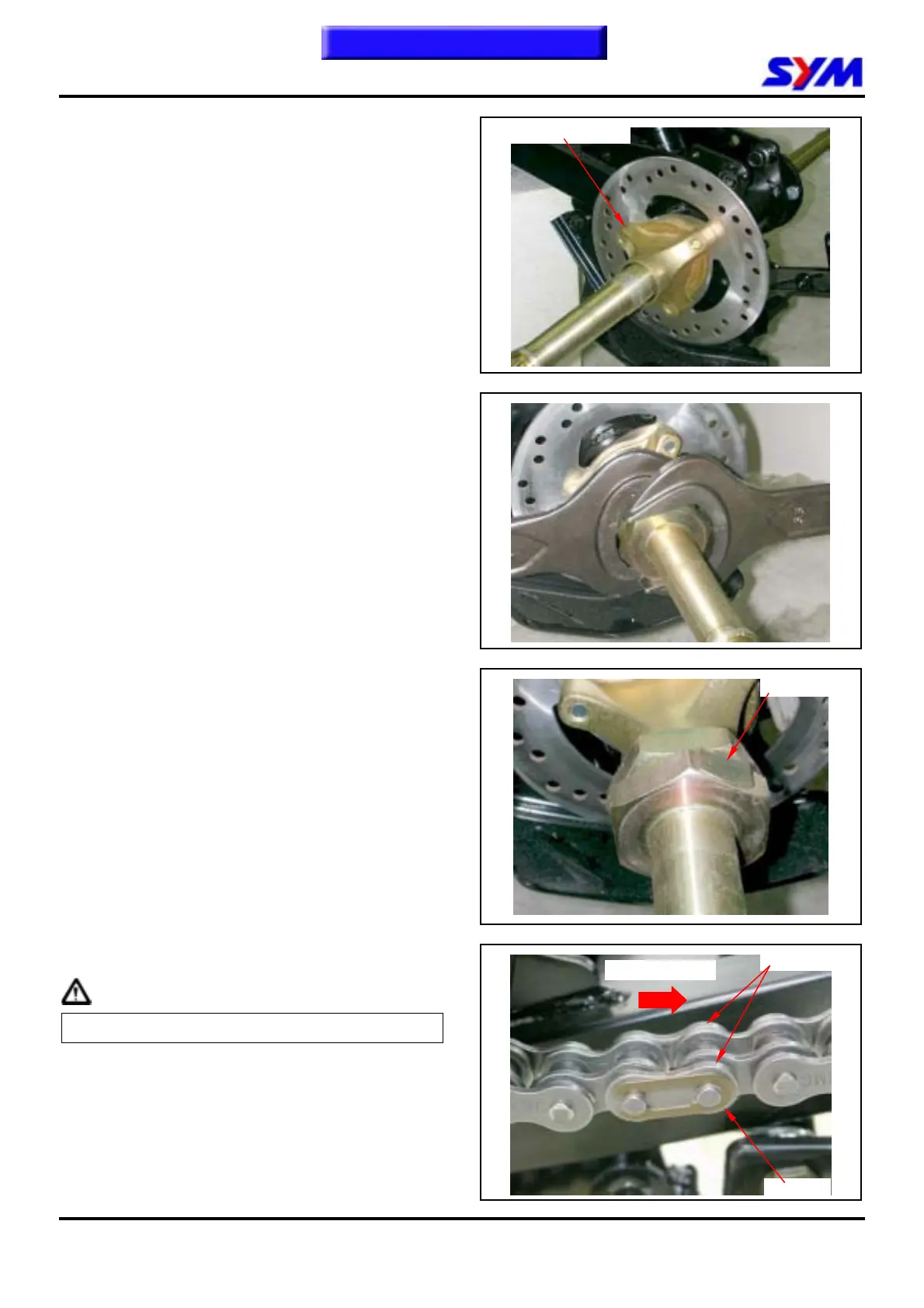

Install rear brake disk bracket and disk.
Install rear wheel axle nuts, rear axle nut fixed
plate and tighten the nuts.
Torque: 9.2kgf-m
Special tool:
Rear axle nut wrench (55mm)
Rear axle nut torque wrench
Torque wrench
After tightened the axle nut, bend the rear axle nut
fixed plate.
Install driven sprocket, drive chain, drive chain
cover and brake caliper.
Caution
y Note the chain lock clip direction.
Install rear wheel shaft connecter, rear wheel.
To this chapter contents
Brake disk bracket
Lock clip
Master link
Fixed plate
Moving direction
