16. REAR BRAKE & REAR WHEEL & REAR CUSHION
16-14

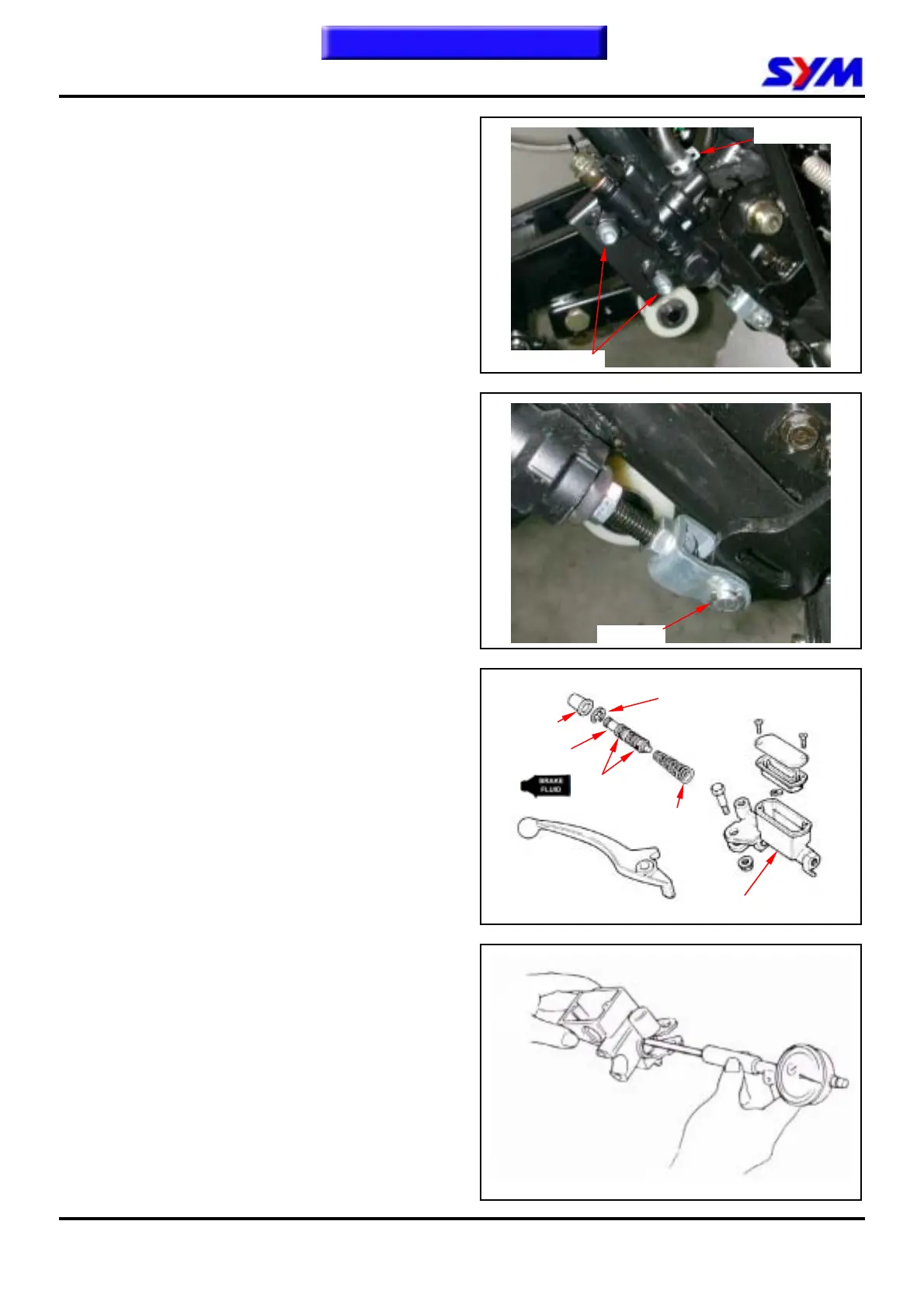

Right footrest side – rear brake master cylinder
B
Place a container under the brake master cylinder,
remove fluid hose clamp, and drain out the brake
fluid.
Loosen the brake hose bolt and finally remove the
brake hose.
Remove the E type clip, and remove brake push
rod pin.
Remove the master cylinder socket bolts and the
master cylinder.
Disassembly
Remove the rubber boot.
Remove the cir clip.
Remove the piston and the spring.
Clean the master cylinder with recommended
brake fluid.
Master Cylinder Inspection
Check the master cylinder for damage or scratch.
Replace it if necessary.
Measure the cylinder inner diameter at several
points along both X and Y directions.
Replace the cylinder if the measured values
exceed allowable limit.
Allowable limit: 12.550 mm
To this chapter contents
Rubber boot
Cir clip
Piston
Spring
Master cylinder
Piston cup
2 socket bolts
Hose clamp
E type clip
