17. ELECTRICAL SYSTEM
17-12
Meters

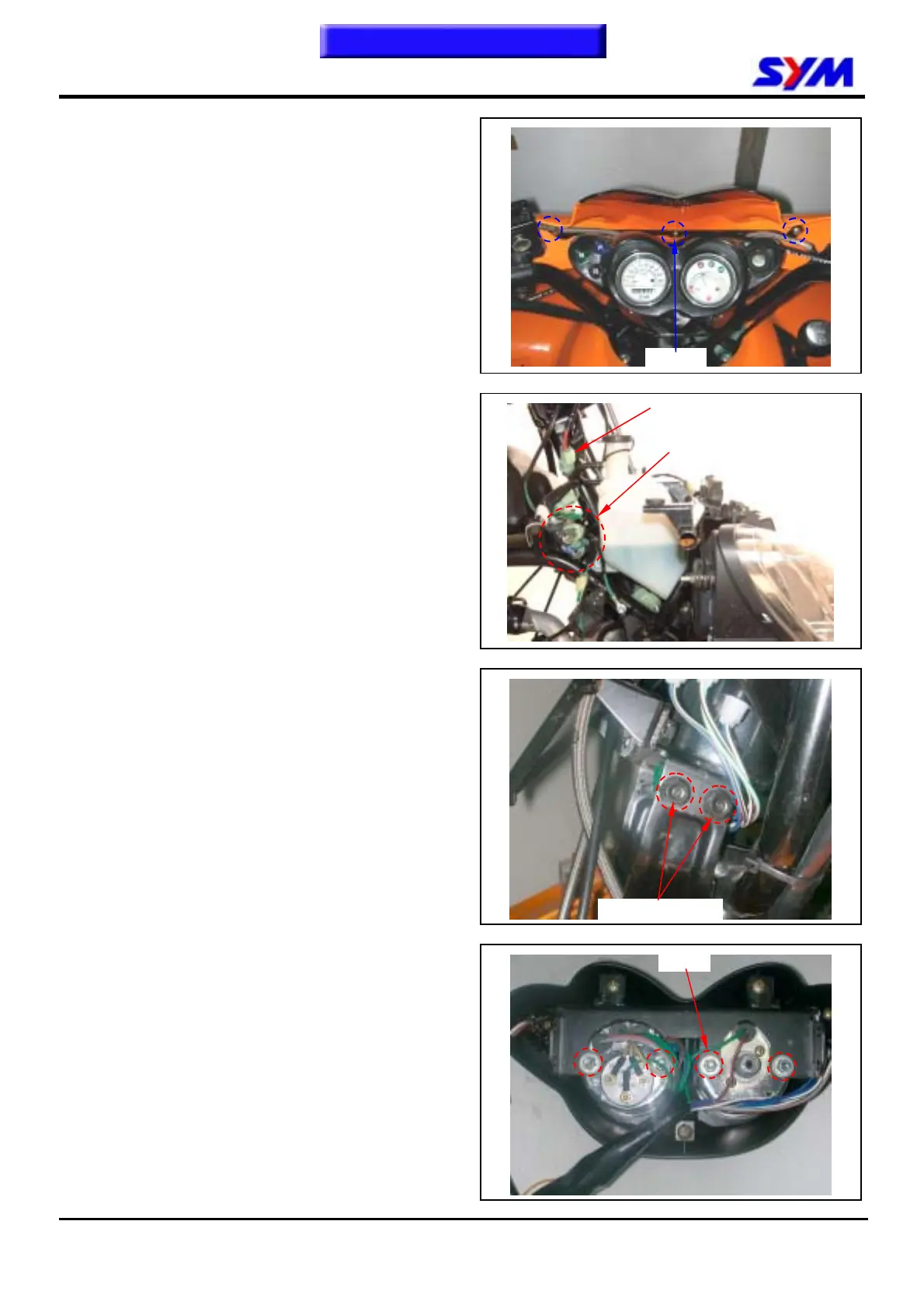

Removal
Remove handle cover.
Remove the front cover, and then remove meter
coupler and main switch coupler.
Remove speedometer cable.
Loosen 4 bolts of the meter stay, and then remove
meter set and main switch.
Remove 4 nuts and meter wire, and then remove
meters.
Installation of Starter motor
Install in reverse order of removal procedures.
