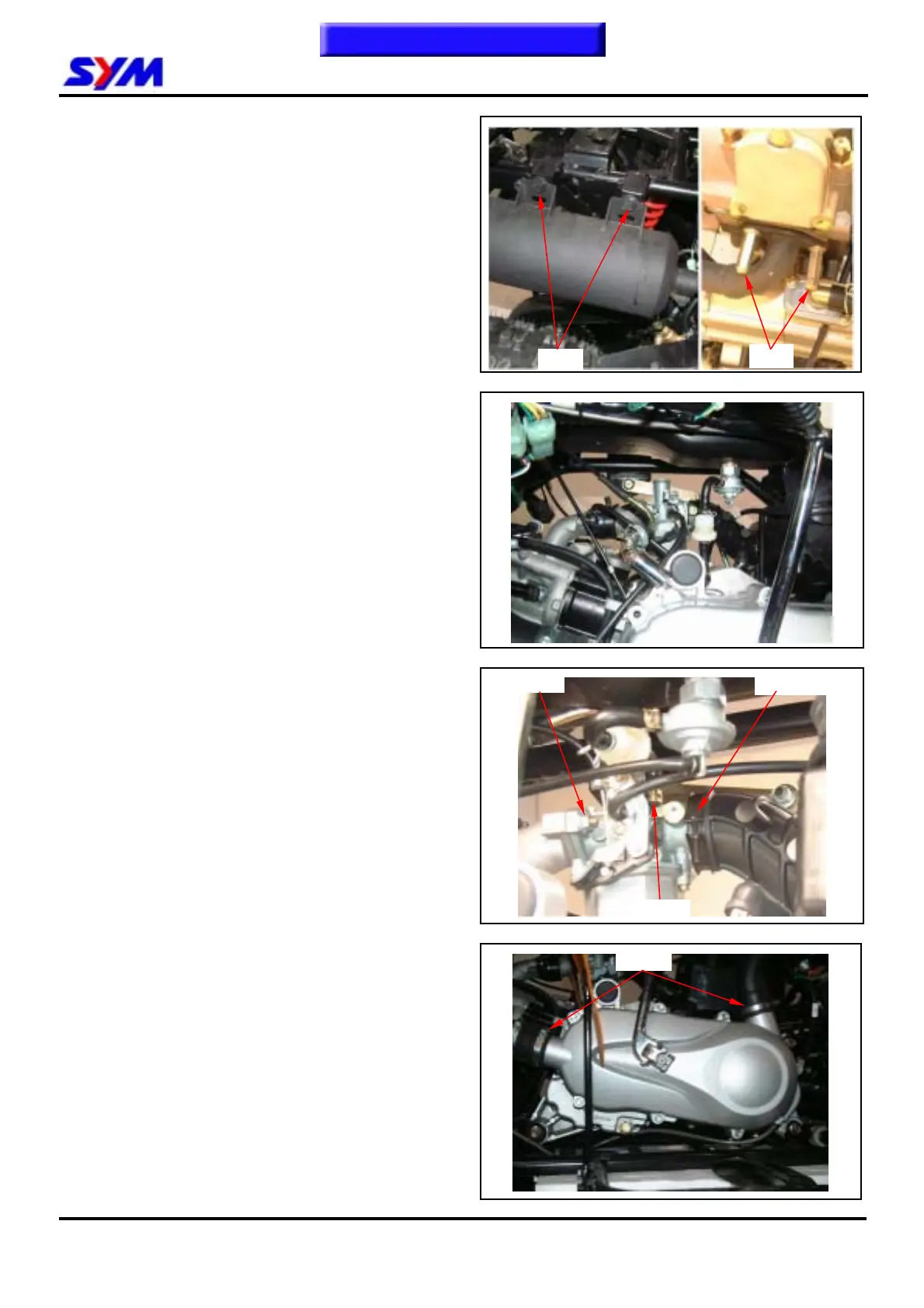

5. ENGINE REMOVAL
5-3
Remove the exhaust muffler (2 bolts, 2 nuts).
Disconnect the choke cable.
Disconnect the carburetor upper parts and cable.
Remove fuel pipe and vacuum pipe.
Release the clamp strip of air cleaner duct.
Release the 2 nuts of carburetor insulator, and
then remove the carburetor.
Release the clamp strips of left crankcase cover
ducts, and then remove the ducts.
2 bolts
2 nuts
Clamp screws
Fuel pipe
2 nuts
Clamps
