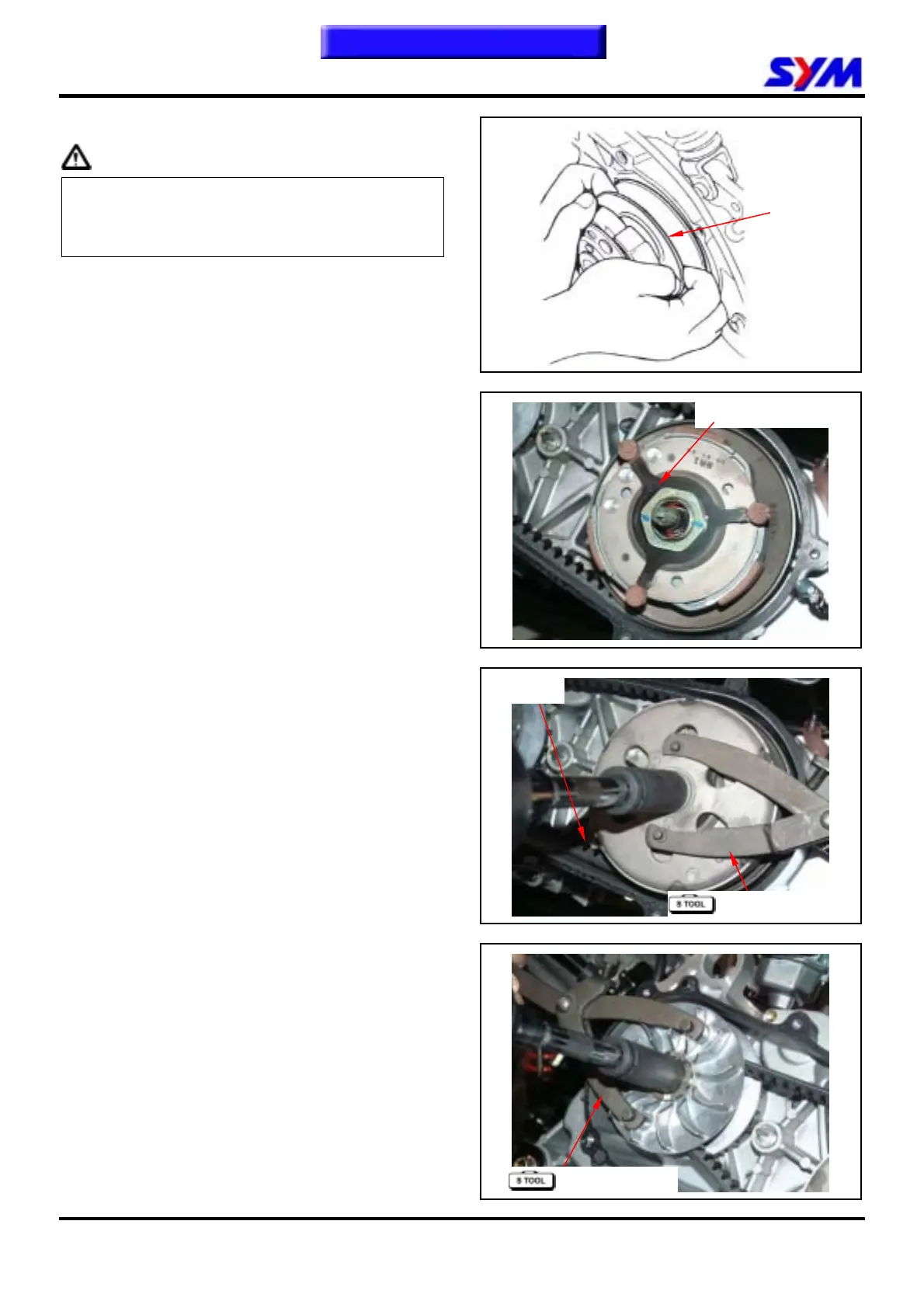

8. V-BELT DRIVING SYSTEM/KICK STARTER
8-6
Installation
Caution
z Pull out driven face to avoid it closing.
z Cannot oppress friction plate comp in order
to avoid creates the distortion or the
damage.
Install driving belt onto driven pulley.
Install the driven pulley that has installed the belt
onto drive shaft.
On the drive belt another end to the movable drive
face.
Install the clutch outer with universal holder, and
then tighten nut to specified torque value.
Torque value: 5.0~6.0kgf-m
Install the drive face with universal holder, and
then tighten nut to specified torque value.
Torque value: 5.0~6.0kgf-m
Driven face
To this chapter contents
Nut
Drive belt
Friction plate comp
Universal holder
Universal holder
