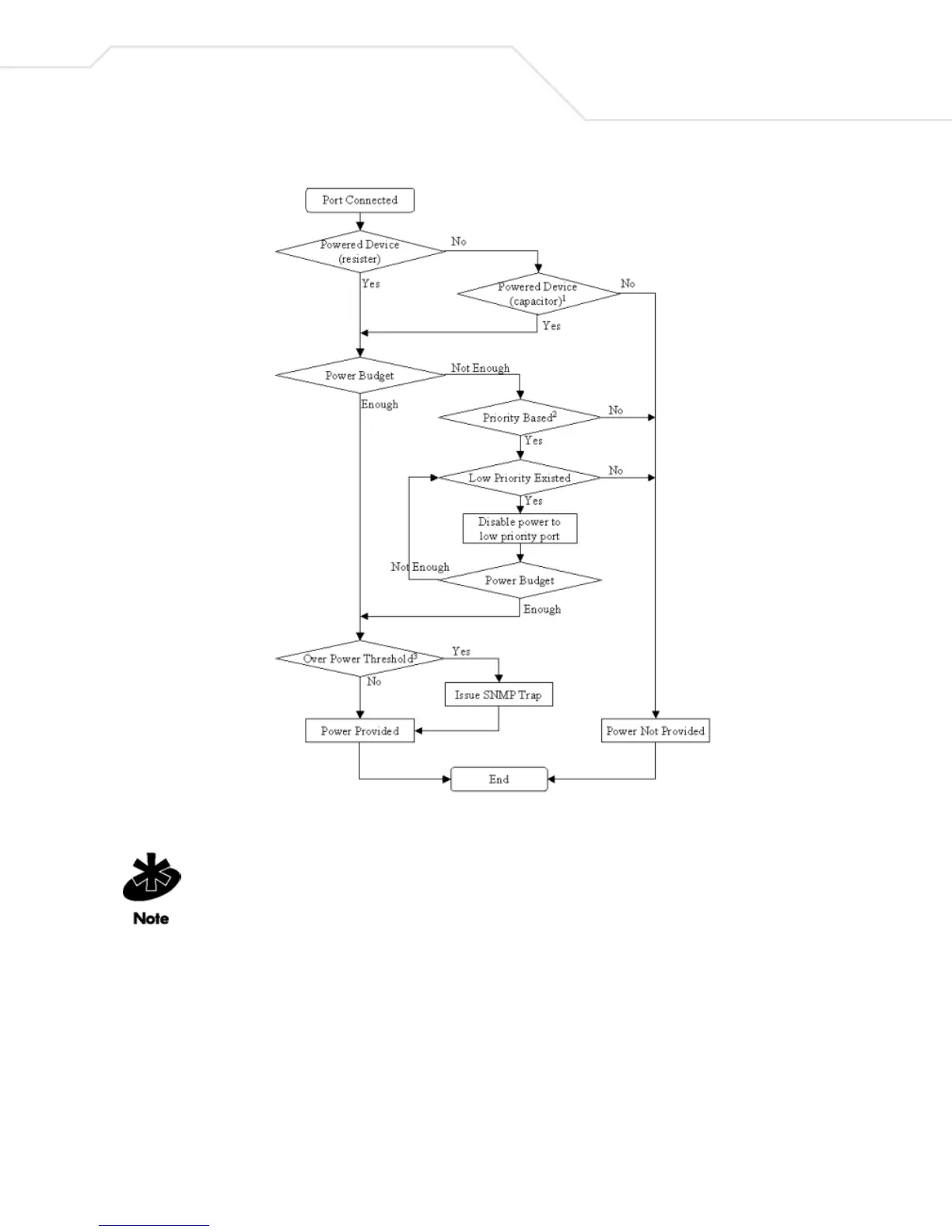

The algorithm starts when a port is connected,
1. Port Connected. Port connection detected
2. Powered Device (resistor). Verify the connected device requirement. If it is a powered
device, go to Power Not Provided (step 13).
1. The flowchart assumes capacitor detection is enabled, otherwise, the path is No.
2. When selecting a priority-based power supply scheme, the "Yes" flow applies.
Otherwise, the sequence of connections applies.
3. When the power consumption percentage is over the threshold, an SNMP trap is
issued to corresponding receivers.
To Next Page
