Administration Console Acce
ss
3-29
3.5.18

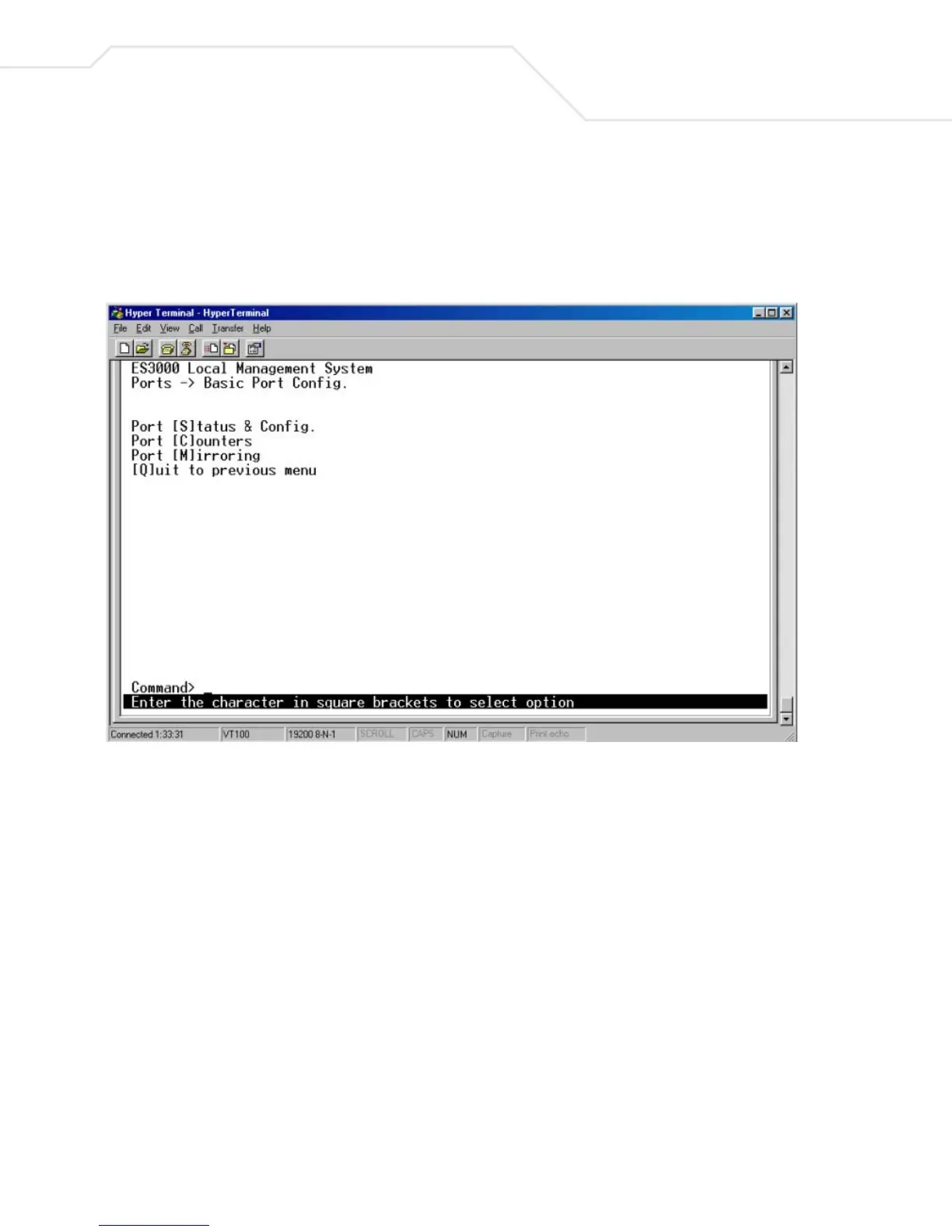

Main Menu->Ports-
>Basic Port Config.
Use the
Basic Port Confi
guration
menu to configure port status (link type, adm
in enable/disable,
link up/down, mode, and flow control). T
o mirror other ports, select
Port Mirroring
.
52
54
Table of Contents
Default Chapter
3
Ethernet Switch
3
User Guide
3
Table of Contents
5
Introduction
11
Notational Conventions
11
Service Information
12
Chapter 1. Switch Management Overview
13
About the ES3000 Ethernet Switch
13
Management Access Overview
14
SNMP Access
14
Protocols
14
Virtual Terminal Protocols
14
SNMP Protocol
15
Default Installation
15
Preparing for Site Installation
15
Package Contents
16
Supplying Power
17
Establishing a RS-232 Serial Connection to the Ethernet Switch
17
Administration of the ES3000 Ethernet Switch
18
Installing a SFP Fiber Transceiver
21
Chapter 2. Firmware Upgrades
23
Chapter 3. Administration Console Access
25
Direct Access Management Method
25
User Interface
29
Saving Configuration Changes
29
Main Menu Options
30
General Information
32
Main Menu->System Administration->System Configuration
33
Main Menu->System Admin.->Access Configuration
34
Main Menu->Access->System IP Configuration
35
Main Menu->Access->Management Access
36
Main Menu->System Admin->SNMP Configuration Menu
38
Main Menu->SNMP Config.->System Information
40
Main Menu->SNMP Config.->Authorized Managers
41
Main Menu->SNMP Config.->Trap Receiver Configuration
42
Main Menu->SNMP Config. ->Trap Selection
43
Port Link down Trap
43
Link down Trap
43
Main Menu->System Admin. ->Tools Menu
45
Main Menu->System Admin.->Tools->Software Upgrade
46
Main Menu->System Admin.->Tools->System Reboot
47
Main Menu->System Admin.->Tools->Save Config
48
Main Menu->System Admin. ->Tools ->Upload/Download Config
49
Main Menu->System Admin.->Tools->SNTP Config
50
Main Menu->System Admin.->Tools->System Log
51
Main Menu->Port Configuration Menu
52
Main Menu->Ports->Basic Port Config
53
Main Menu->Ports->Basic Port Config.->Port Status & Config
54
Main Menu->Ports->Basic Port Config->Port Counters
56
Main Menu->Ports->Basic Port Config->Port Mirroring
57
Main Menu->Ports->Port Security
58
Main Menu->Ports->Port Security->Radius
59
Main Menu->Ports->Port Security ->802.1X
60
Main Menu->Ports->Power over Ethernet
61
Main Menu->Ports->Link Aggregation
64
Main Menu->Ports->Link Aggregation->LA Config
65
Main Menu->Ports->Link Aggregation->Set Port Priority
66
Main Menu>Vlans
67
Main Menu->Vlans->Vlans by VLAN-ID
68
Main Menu->Vlans->VLAN Port Configuration Menu
71
Main Menu->IGMP Snooping Configuration Menu
72
Main Menu->IGMP Snooping->IGMP Snooping Config
73
Main Menu->IGMP Snooping->VLAN Filter Table
74
Main Menu->IGMP Snooping->Router Port Table
75
Main Menu->Spanning Tree Configuration Menu
76
Main Menu->Spanning Tree->Forwarding DB
77
Main Menu->Spanning Tree->MSTP Config
79
Main Menu->Spanning Tree->Multiple Spanning Tree Configuration
79
Main Menu->Spanning Tree->CIST Config
82
Main Menu->Spanning Tree->MSTP Config->CIST Basic Port Config
84
Main Menu -> Spanning Tree -> MSTP Config. -> CIST Advanced Port Config
85
Main Menu->Spanning Tree->MSTP Config
85
MSTP Instance Config
86
Main Menu->Spanning Tree->MSTP Config
87
Designated Topology Info
87
Main Menu->Spanning Tree->MSTP Config
88
Regional Topology Info
88
Main Menu->Qos (Quality of Service Configuration Menu)
89
Main Menu->Qos->Policy Config
90
Main Menu->Qos->Queue Config
91
Main Menu->Qos->Queue Config.->Queue Mapping
92
Main Menu->Qos->Rate Limiting
93
Main Menu->Qos->Rate Limiting->Broadcast Storm Control
94
Configuration Menu
94
Execute CLI
95
Chapter 4. Web Management Access
97
General Information
98
Saving Web Interface Configuration Changes
99
System Admin->Access->IP Configuration
100
System Admin->Access->Management Access
101
System Admin->Access->User Name Password Change
102
System Admin->SNMP Configuration
103
System Admin->SNMP Configuration->SNMP Information
104
System Admin->SNMP Configuration->Authorized Managers
105
System Admin->SNMP Configuration->Trap Receiver
106
System Admin->Tools->Software Upgrade
108
System Admin->Tools->System Reboot
109
System Admin->Tools->Save Configuration
110
System Admin->Tools->SNTP Configuration
111
System Admin->Tools->System Log Menu
112
System Admin->Tools->TFTP Configuration File Upload/Download
113
System Admin->Ports->Port Status and Configuration
114
System Admin->Ports->Port Counters
116
System Admin->Ports->IP (Port) Mirroring
117
System Admin->Ports->Port Security ->Radius Configuration
118
System Admin->Ports->Port Security ->802.1X Configuration
119
System Admin->Ports->Power over Ethernet
120
System Admin->Ports->Power over Ethernet->Port Configuration
121
System Admin->Ports->Power over Ethernet->Poe Global Configuration
124
Poe Determination Flowchart
125
System Admin->Ports->Link Aggregation->System Priority
129
System Admin->Ports->Link Aggregation->Add Group
130
System Admin->Ports->Link Aggregation->Set Port Priority
131
Vlans->VLAN Config->Vlans by VLAN-ID
132
Vlans->VLAN Config->Creating/Modify VLAN
133
Vlans->VLAN Config->Create/Modify 802.1Q Trunk
135
Vlans->VLAN Config->Vlans by Port
137
IGMP Snooping->IGMP Snooping Config->IGMP Snooping Configuration Menu
138
IGMP Snooping->IGMP Snooping Config->VLAN Filter Table
140
IGMP Snooping->IGMP Snooping Config->Router Port Table
141
Spanning Tree->Forwarding DB->Add Static FDB Entries
142
Spanning Tree->Forwarding DB->FDB by Port/Mac/Vlan
143
Spanning Tree->MSTP Configuration->MSTP Config
144
Spanning Tree->MSTP Configuration->CIST Configuration
146
Spanning Tree->MSTP Configuration->CIST Basic Port Configuration
148
Spanning Tree->MSTP Configuration->CIST Advanced Port Configuration
149
MSTP Instance Configuration
150
Spanning Tree->MSTP Configuration->Designated Topology Information
151
Regional Topology Information
152
Qos->Policy Config->Create Classifier
153
Qos->Policy Configuration->Create In-Profile Action
157
Qos->Policy Configuration->Create Out-Profile Action
158
Qos->Policy Configuration->Create No-Match Action
159
Qos->Policy Configuration->Create Port List
160
Qos->Policy Configuration->Create Policy
161
Qos->Policy Configuration->Policy Sequence
162
Qos->Queue Config->Queue Mapping
165
Qos->Rate Limiting->Storm Control Configuration
167
Chapter 5. Command Line Interface
169
ES3000 Ethernet Switch Command Brief
169
Help Key
169
Command Hierarchy
171
Basic Commands
175
Web Browser Commands
182
SNMP Commands
184
Basic System Management Commands
190
IP Addressing Commands
195
Security Commands
198
Layer-2 Interface Commands
199
Link Aggregation Commands
210
MAC Address Commands
214
Multiple Spanning Tree Commands
219
IGMP Snooping Commands
236
VLAN Commands
242
Quality of Service Commands
249
Diffserv Commands
252
Commands
262
Radius Commands
270
SNTP Commands
272
Syslog Commands
275
Power over Ethernet Commands
277
Miscellaneous Commands
283
Sample Configuration File
285
Appendix A. Specifications & Pin Assignments
293
Specifications
293
Plug and RJ-45 Connector
294
Appendix B. Cabling Guidelines
295
Fast Ethernet Cable Guidelines
295
Certification
295
Termination Method
296
Category 5 Cable
296
Category 5 Cable Specifications
296
Twisted Pair Cables
296
Patch Panels and Cables
297
Using 1000BASE-T Gigabit Ethernet over Category 5 Cable
297
Overview
297
Cabling
297
Length
298
Return Loss
298
Near End Cross Talk (NEXT
298
Patch Cables
299
Optimum Performance
299
Appendix C. Customer Support
301
