Administration Console Acce
ss
3-51
3.5.35
Main Menu->IGMP Snoopi
ng->Router Port T
able
The
Router Port T
able

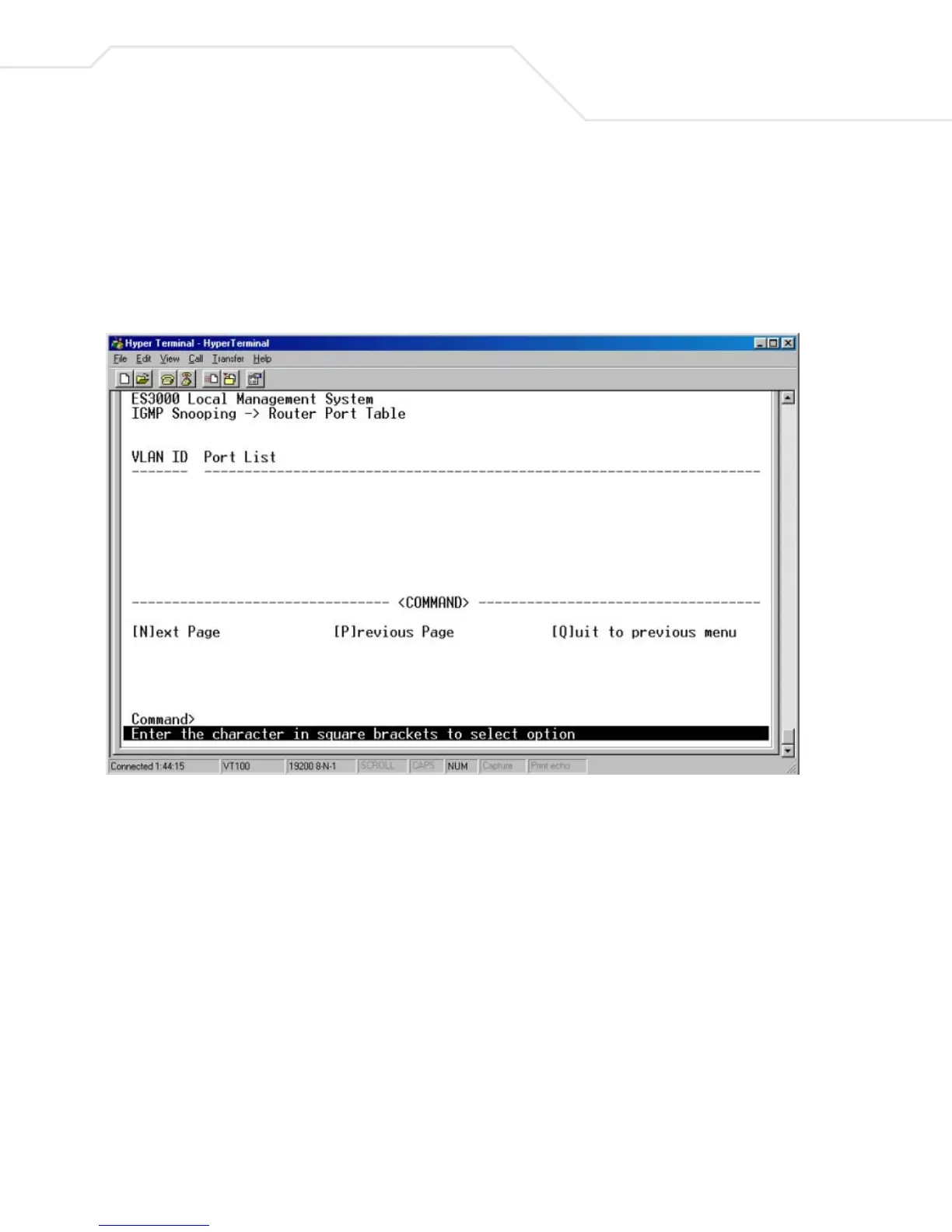

menu displays the ports in a VLAN ID connecting to the router
. The user can
snoop the package fro
m the router side of the ports. Select
Next Page
to display additional VLAN
IDs should they exist.
