ES3000 User Guide
4-54

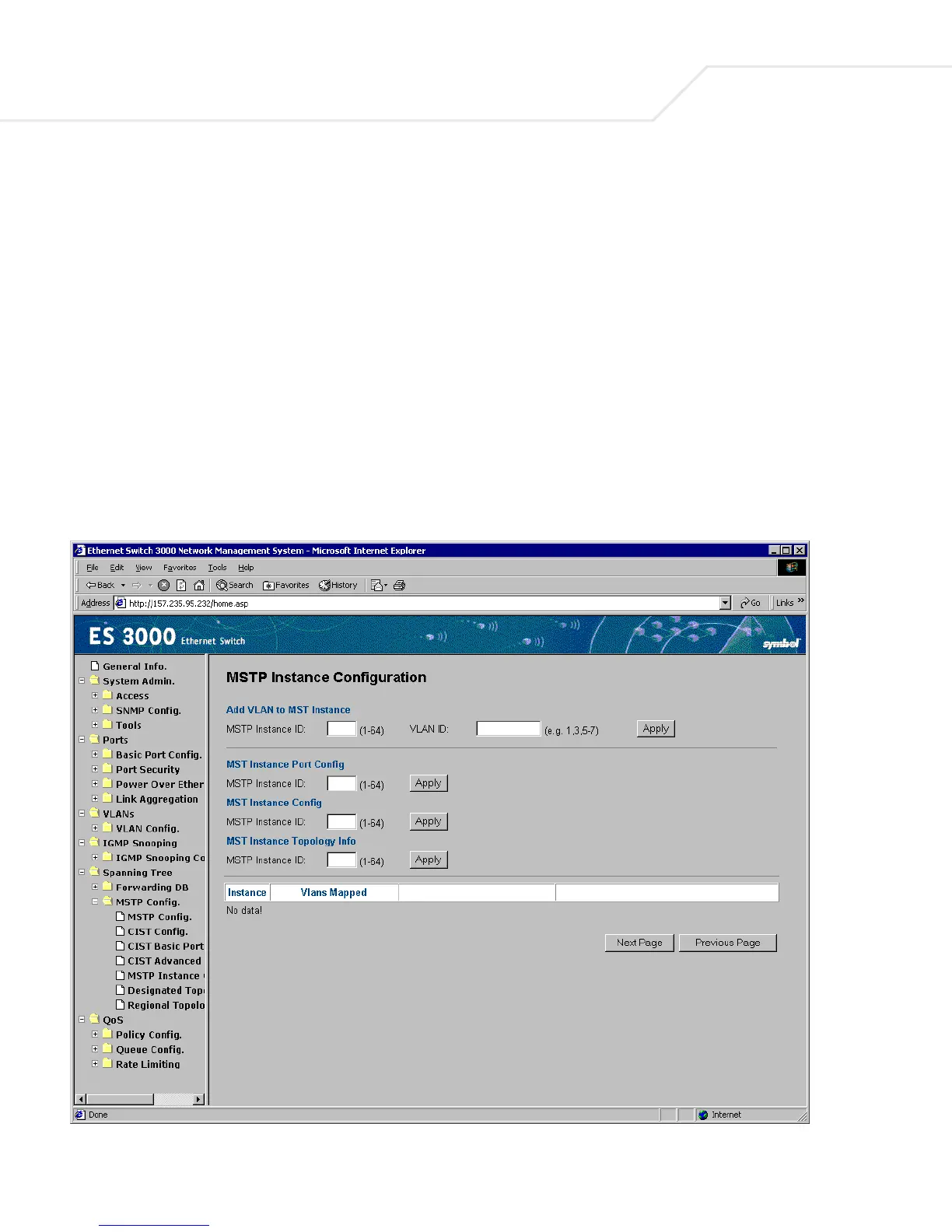

4.2.39 Spanning Tree->MSTP Configuration->MSTP Instance
Configuration
One instance can have more than one VLAN. Use the MSTP In stance Configuration page to add
or remove a VLAN, or remove a MST and Instance Port configuration.
Specify a single instance (a range of instances separated by a hyphen) or a series of instances
separated by a comma. The range is from 2 to 64.
For a VLAN ID, the range is from 1-7. When mapping VLANs to an MST instance, the mapping is
increasing, and the VLANs specified in the command are added to or removed from the VLANs
previously mapped.
Use a hyphen to specify a VLAN range. For example, instance 1 vlan 3-5 maps VLANs 3 through 5
to MST instance 1.
