Symbol ES3000 User Manual

ES3000 User Guide
4-62
The precedence and CoS (Class of Service) has three bits. The value is between 0 and 7. Higher values
have priority. DSCP combines Precedence and ToS (Type of Service). DSCP is 6 bits long for the priority
and the value ranges from 0 and 63.

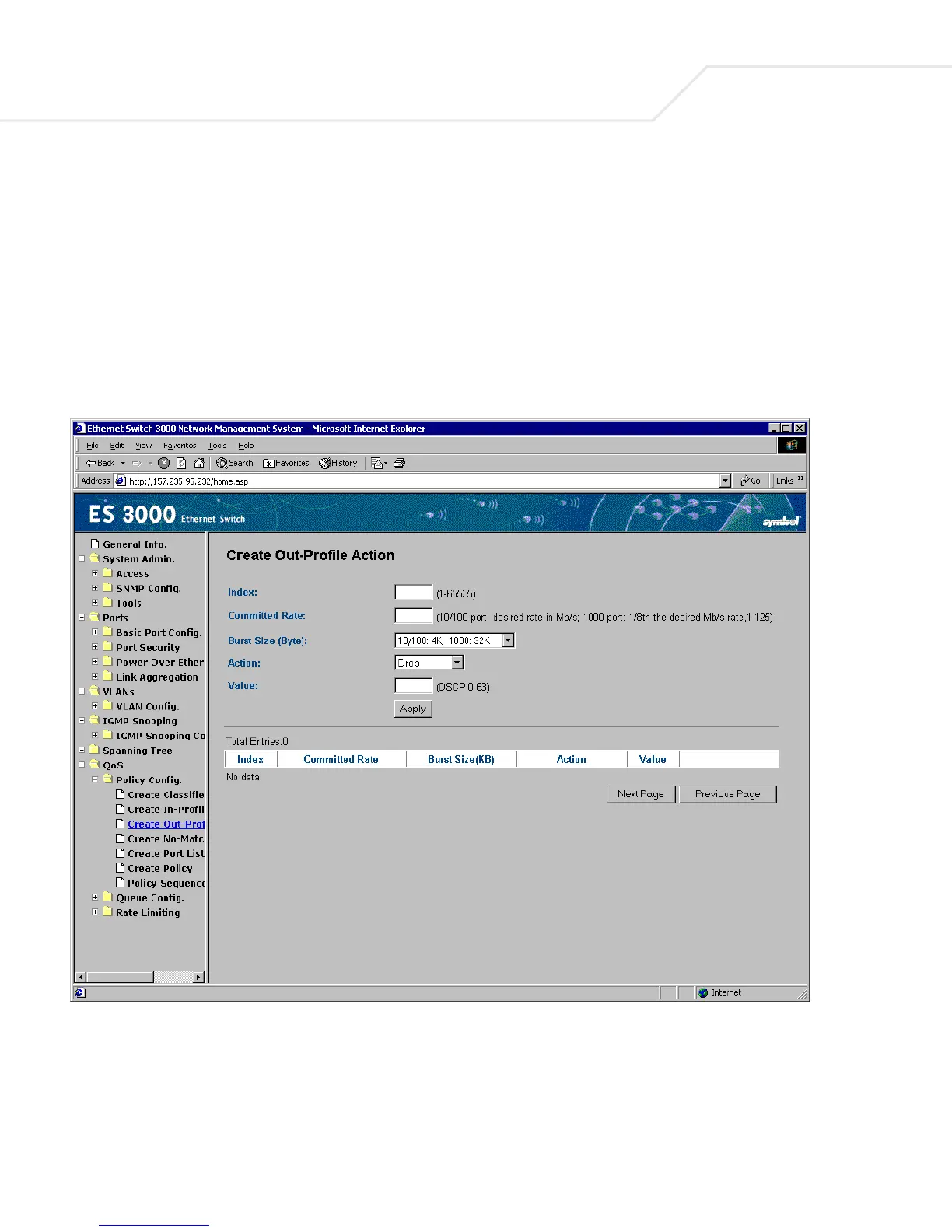

4.2.44 QoS->Policy Configuration->Create Out-Profile Action
Out-Profile Actions are similar to In-Profile Actions except they do not have policed-precedence nor
policed-cos and they apply to egress traffic. Two actions are created as well. In additional to In-Profile
Action page, the administrator has the capability to set the committed rate and burst size.

Symbol ES3000 Specifications

General

Brand	Symbol
Model	ES3000
Category	Network Router
Language	English
