Symbol ES3000 User Manual

Administration Console Access
3-53

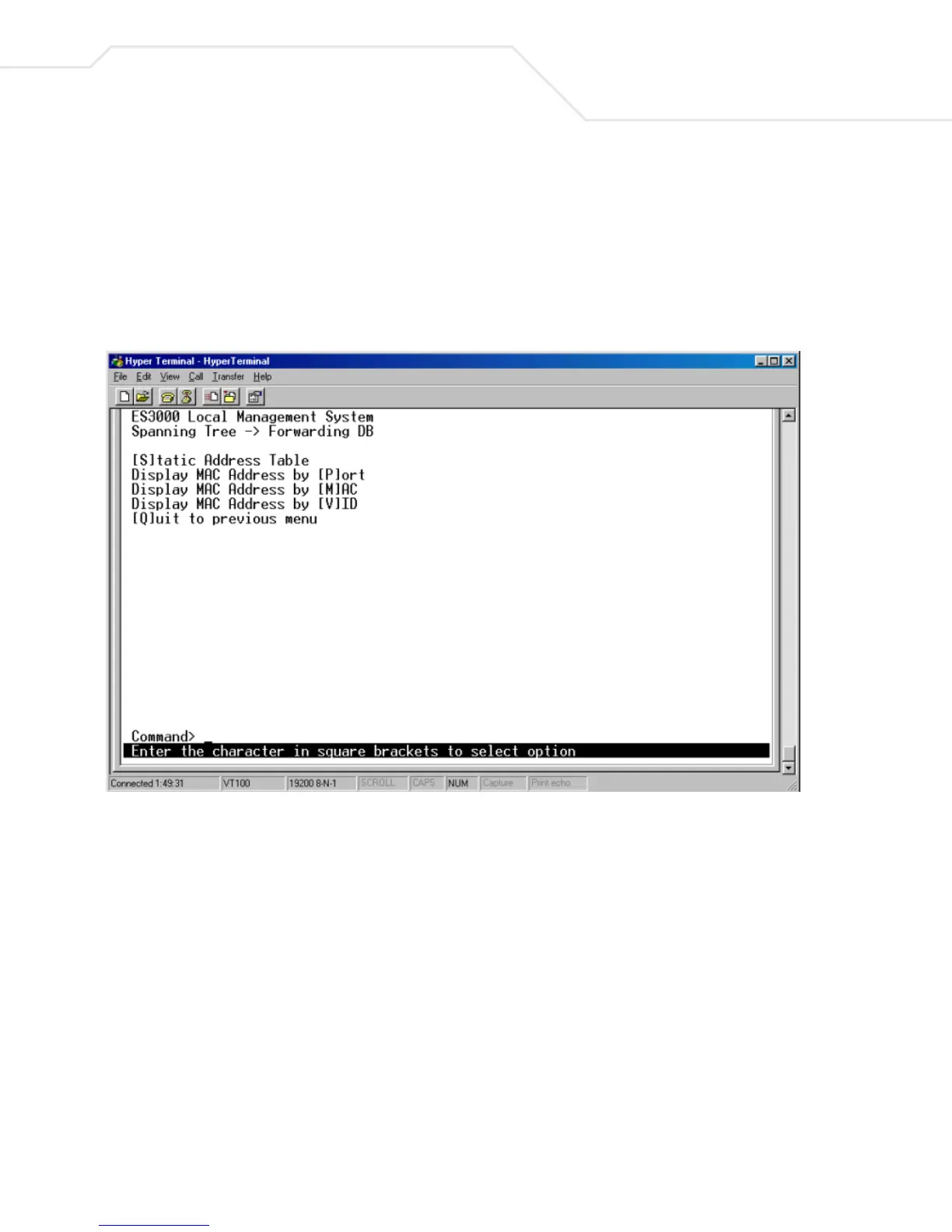

3.5.37 Main Menu->Spanning Tree->Forwarding DB
Use the Forwarding Database option to view the dynamic MAC addresses currently in the address
database. When addresses are in the database, the packets intended for those addresses are
forwarded directly to those ports. The Administrator can display addresses in the table by port, VLAN,
and/or MAC address by entering the short key. The static MAC address table is also displayable
There are four commands within the Forwarding Database option.
Static Address Table Display and configure the static MAC address table.
Display MAC Address By Port Display MAC address table for a specified port
Display MAC Address by MAC Display MAC address in order of MAC address.
Display MAC Address by VID Display MAC address table for a specified VLAN ID.
