Symbol ES3000 User Manual

Administration Console Access
3-67

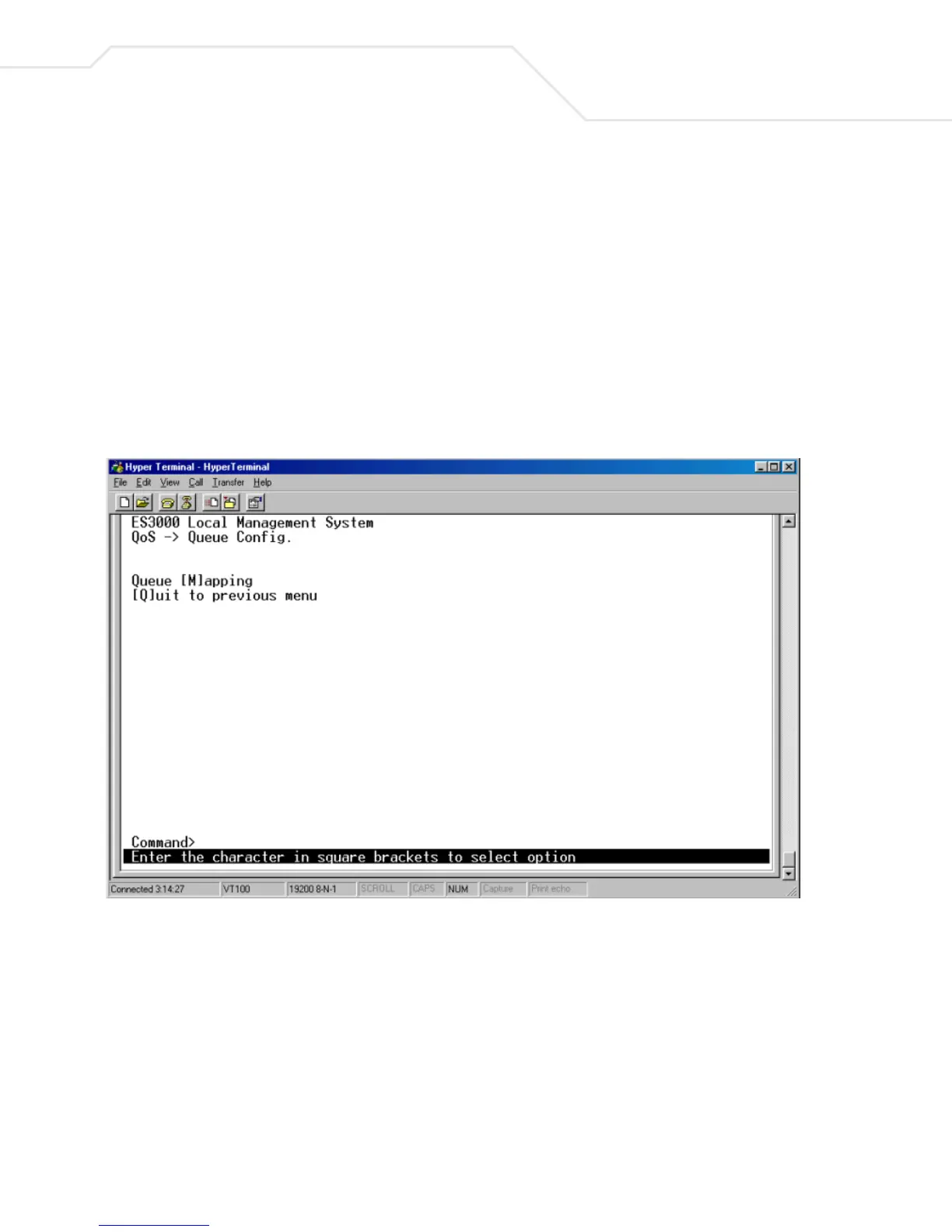

3.5.48 Main Menu->QoS->Queue Config.
Port Prioritization allows the user to specify which ports have greater precedence in situations where
traffic can be buffered in the switch due to congestion. Traffic that comes in on ports with a setting
of high is transmitted before those that come in on a port with a normal setting. The settings on this
page only affect packets that do not already have VLAN priority tags. To raise the priority of a given
port, toggle the port setting from normal to high. The default setting for a port is normal.
The priority tag of each packet is divided into four queues on each output port. The default setup is
that each queue takes two priorities sequentially. The Administrator can configure the traffic class as
needed. The Quality of Service works only after the QoS status is enabled by Set QoS Status.
