ES3000 Use
r Guide
3-16
3.5.6

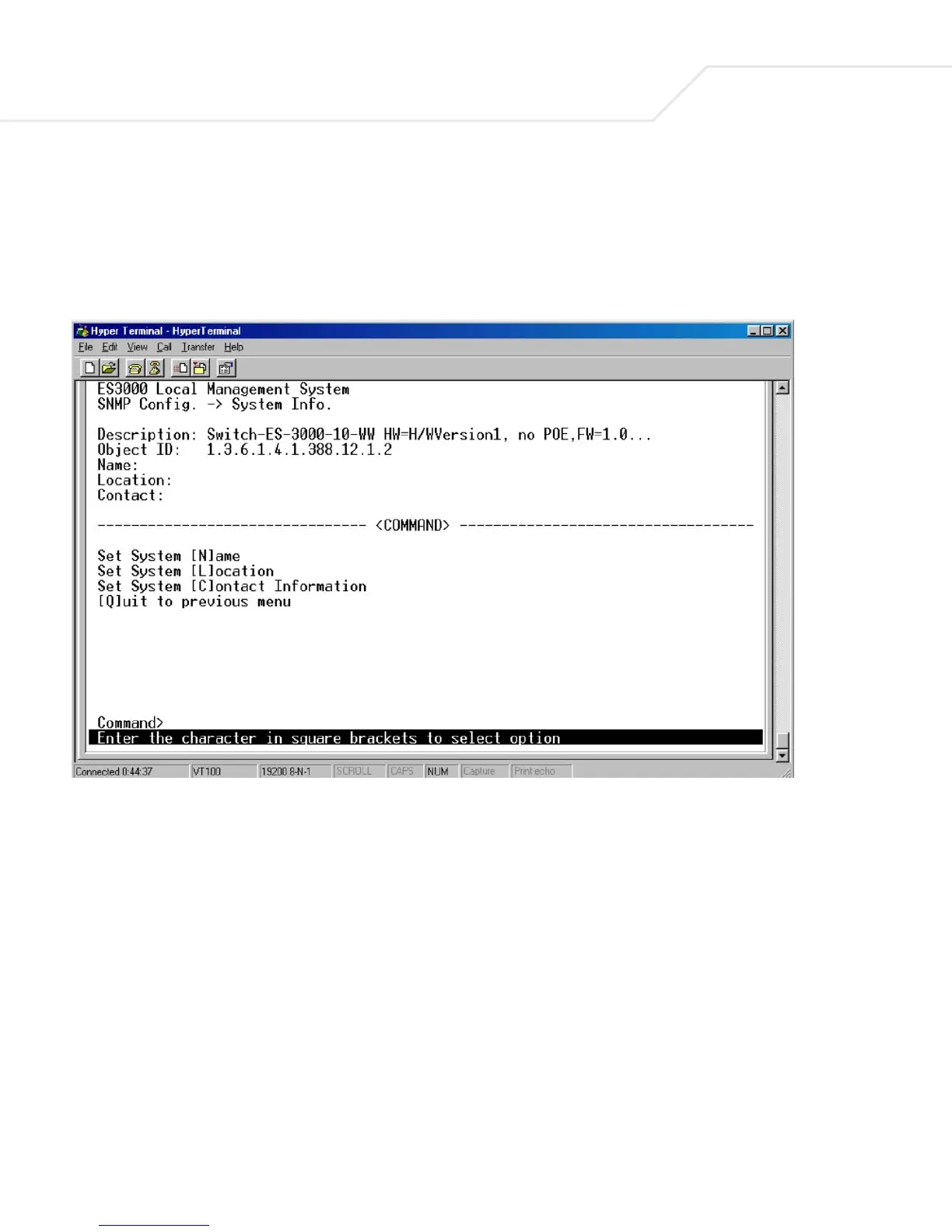

Main Menu->SNMP Config.->Sy
stem Information
Use the
Sy
stem Information
page to display system information to
set the system name, location,
and contact information. Th
e MAC address and Object ID are also shown
, but the MAC address and
Object ID are not user configurable.
