Administration Console Acce
ss
3-49
3.5.33

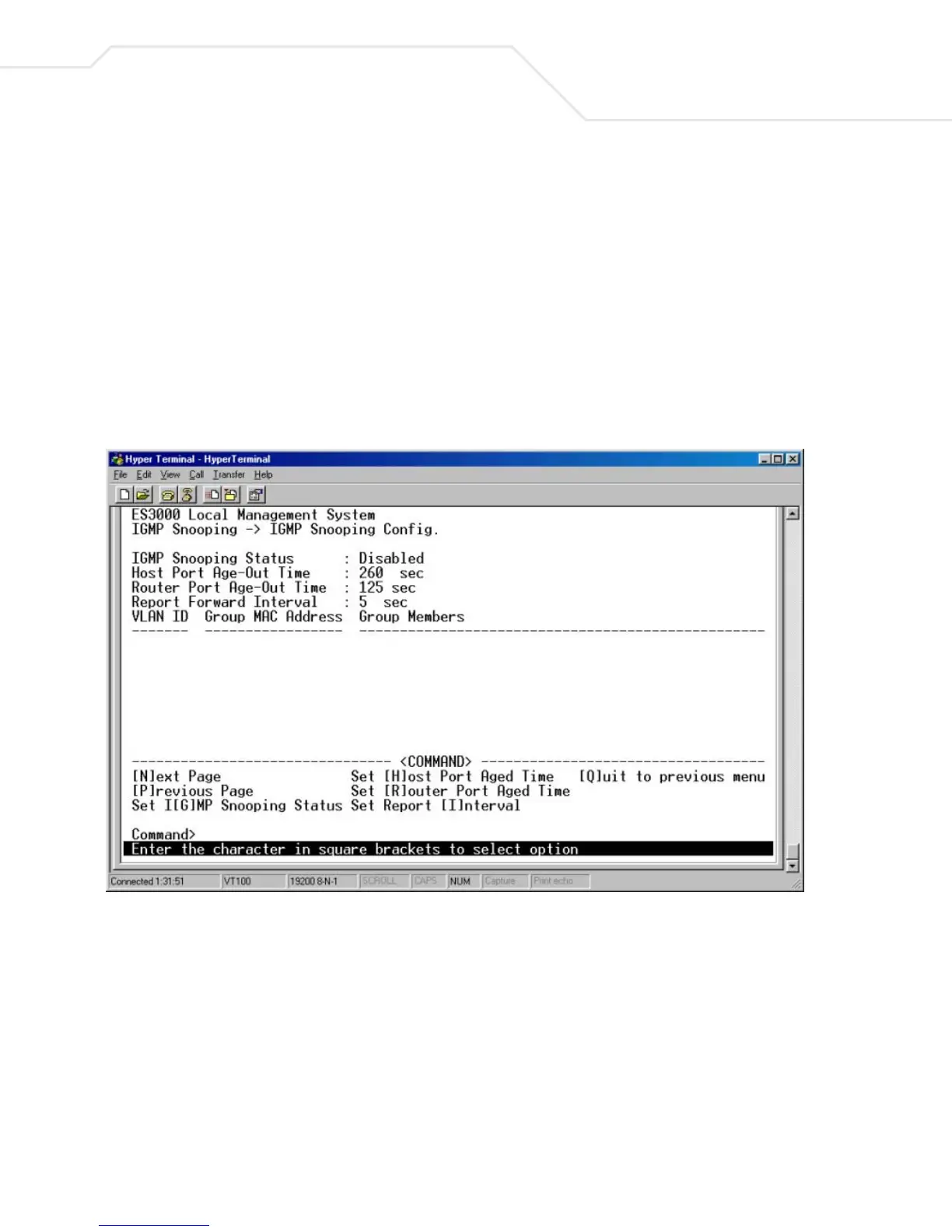

Main Menu->IGMP Sno
oping->IGMP Snooping Confi
g.
Users can set up Hos
t port aged time a
nd router port aged
time to snoop the ne
twork and the IGMP
Snooping s
tatus report interval.
Enable
The system detects IGMP querie
s, report packets, and manage IP
multicast traffic through the switch.
Disable
The switch forwards traffic and disregards any IGMP re
quests.
72
74
