Symbol ES3000 User Manual

Web Management Access
4-63

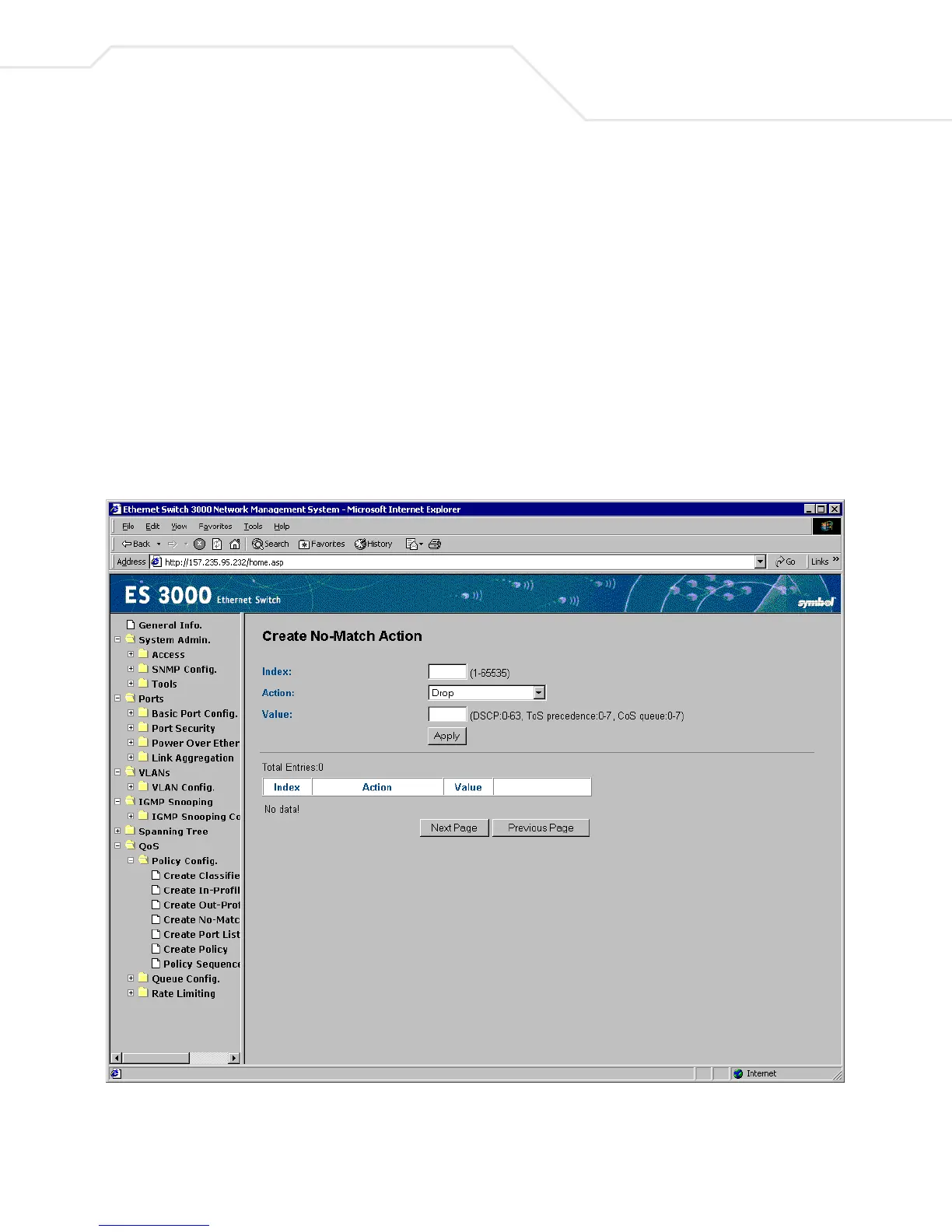

4.2.45 QoS->Policy Configuration->Create No-Match Action
No-Match Action resembles In-Profile Action. No-Match Action applies to ingress traffic where the
data packets do not match the associated policy. Four actions are available (Drop, Policed-dscp,
Policed-precedence, and Policed-cos). Enter an ID between 1-65535, specify an Action and a Value
and click Apply to implement.
Committed Rate: The unit for 10/100Mbps port is 1Mbits and 1000Mbps ports is 8Mbits.
When the data rate higher than committed rate, the data is sent as best
effort. In other words, the packet is delivered when the bandwidth is
available.
Burst Size: The burst packet size. User may set it to 0.5Kbyte to 64Kbytes.
