Symbol ES3000 User Manual

Web Management Access
4-67
Examples with Applied Policies

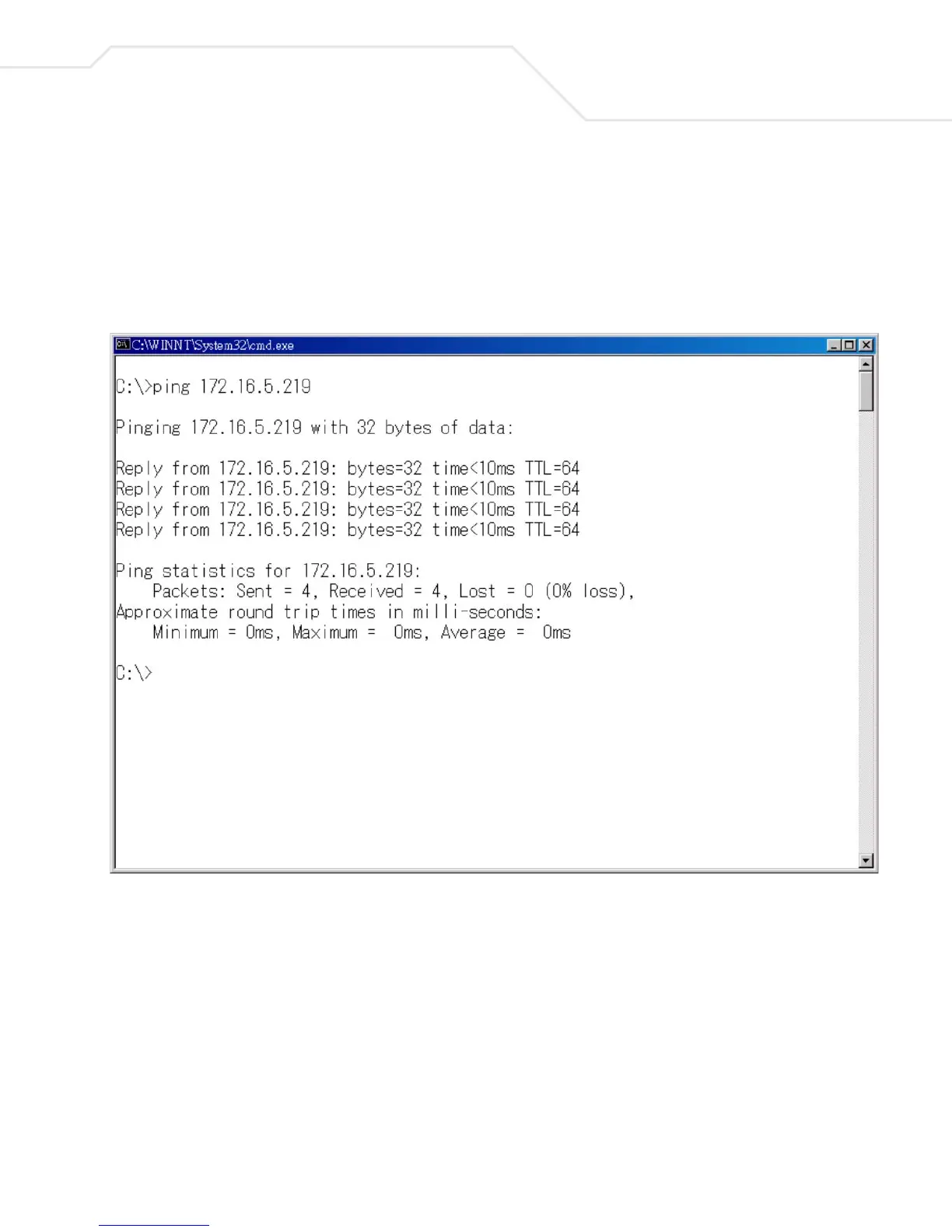

When all policies are enabled, use a ping command to check the packet transmissions between
switch 172.16.5.219 and host 172.16.5.56 The ping receives responses regardless of whether these
policies are enabled or disabled. In other words, these policies are not applied to traffic to the CPU.
The traffic between host 172.16.5.56 and switch 172.16.5.218 is verified (in this example). All policies
are disabled to verify the physical connection and protocol layers are working properly. If the ping is
successful the connection between host and switch are set up properly.
