T-Drill S-80 - Page 37

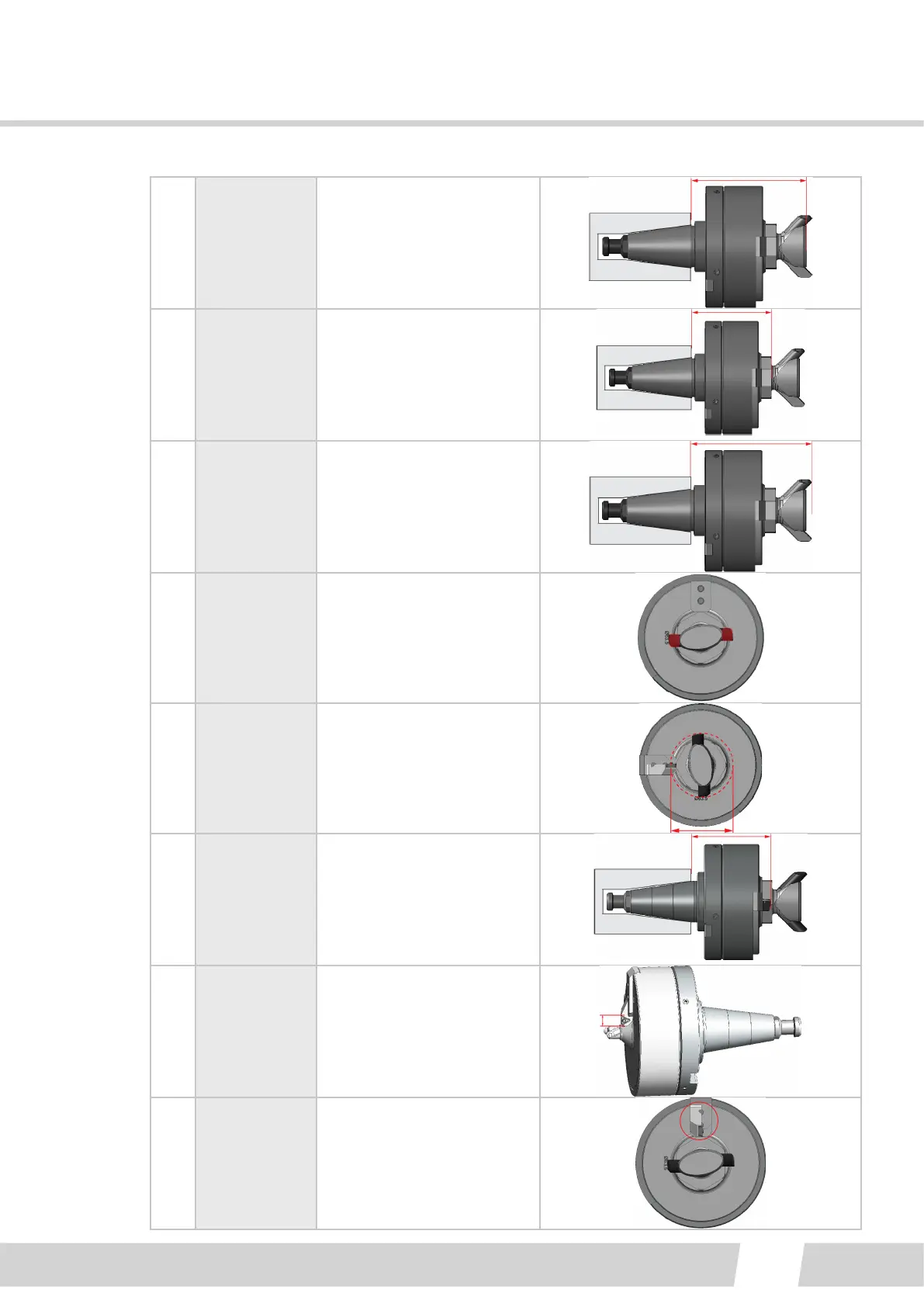

COLLARING MACHINE
37
S-80
8
Collaring tool
length
9
Collaring
tool shoulder
length
10
Collaring tool
pin length
11
Collaring tool
number of
pins
12
Trimming tool
diameter
The midst diameter of
the cuer blade path (see
picture)
13
Trimming tool
length
14
Trimming tool
cuer width
The width of the cung
insert
15
Trimming tool
number of
teeth
The machine can be
equipped with more that
one cuer if necessary.
