COLLARING MACHINE
75
S-80

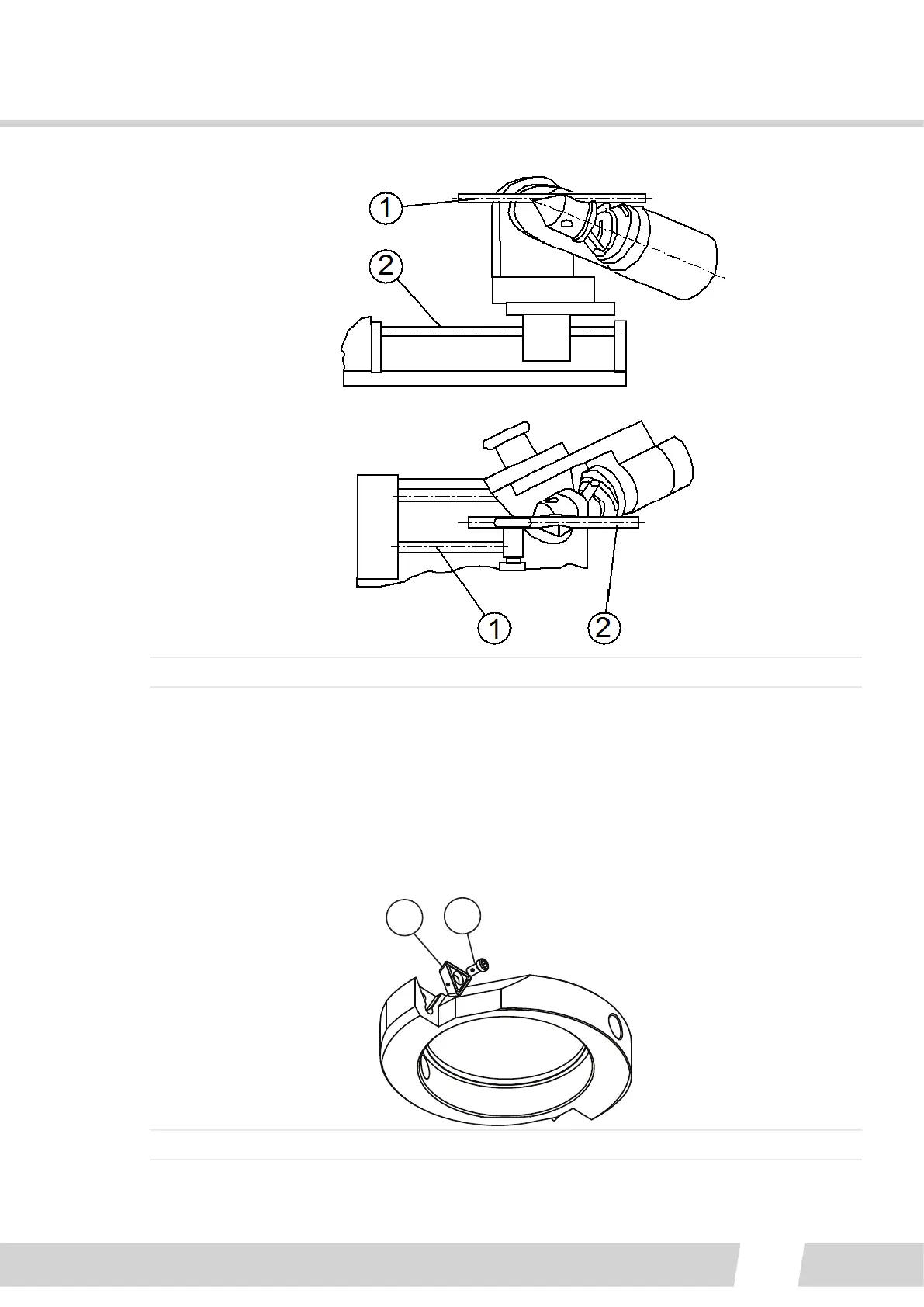

The correct posioning for grinding: 1. Slide bars of grinder, 2. Straight pin.

The trimming blade cung inserts are triangular in shape, and can be turned three mes
to use all edges. To remove blade open xing screw CSTB-2,5.
When the trimming quality is not as desired, the blades can be either turned or changed.
¨NOT!¨ 
once.
1
2
1. Fixing screw CSTB-2,5, 2. Trimming blade cung insert
