18
Control reference guide

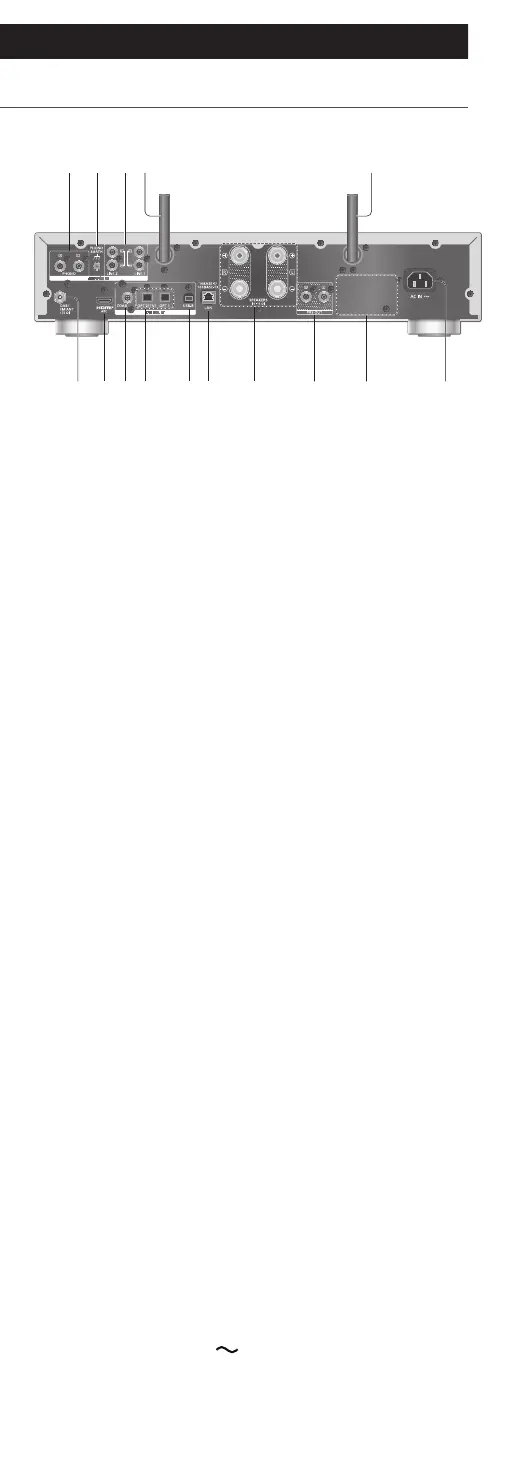

This unit (rear)
05 06 07 08 09 10 11 12 13 14
040401 02 03
01 Analogue audio input terminals (PHONO)
(⇒ 63)
• Please use the cable less than 3 m.
02 PHONO EARTH terminal
(⇒ 63)
• For connecting the ground wire of a turntable.
03 Analogue audio input terminals
(LINE1/LINE2)
(⇒ 63)
04 Wireless LAN antenna
(⇒ 30)
05 DAB ANT/FM ANT terminal
(⇒ 24)
06 HDMI terminal
(⇒ 57)
• You can connect the HDMI equipment with
ARC function (TV, etc.) with HDMI cable (not
supplied) to this unit and play back music.
• Please use Premium High Speed HDMI cable.
07 Coaxial digital input terminals (COAX)
(⇒ 55)
08 Optical digital input terminal (OPT1/OPT2)
(⇒ 55, 57)
09 USB-B terminal (USB-B)
(⇒ 61)
• For connecting to a PC, etc.
10 LAN terminal
(⇒ 30)
11 Speaker output terminals
(⇒ 25)
12 Analogue audio output terminals (PRE OUT)
(⇒ 109)
13 Product identification marking
• The model number is indicated.
14 AC IN terminal (
)
(⇒ 27)
