Connections
Speakers
(Continued)

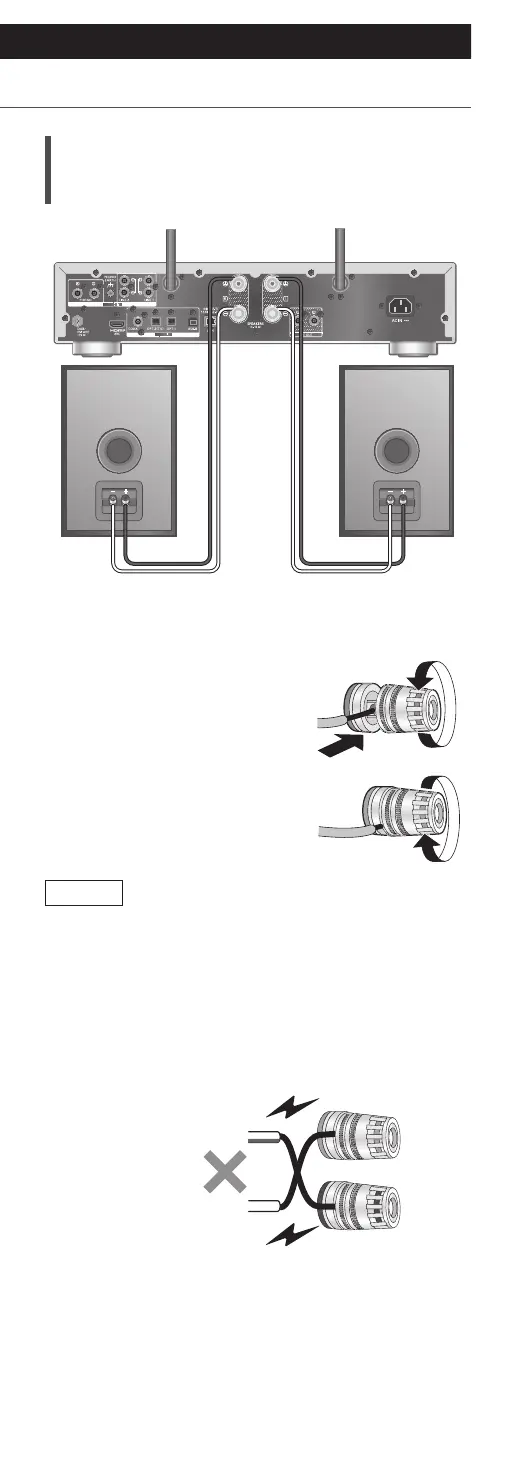

Speaker connection
Speaker cable
(not supplied)
Speaker cable
(not supplied)
1 Turn the knobs to
loosen them, and
insert the core wires
into the holes.
2 Tighten the knobs.
Note
• Make sure to connect the speakers before AC
mains lead is connected.
• When the connections are completed, pull the
speaker cables lightly to check that they are
connected firmly.
• Be careful not to cross (short-circuit) or reverse
the polarity of the speaker wires as doing so may
damage the amplifier.
DO NOT
• Wire the polarity (+/-) of the terminals correctly.
Not doing so may adversely affect stereo effects
or cause malfunction.
To Next Page
